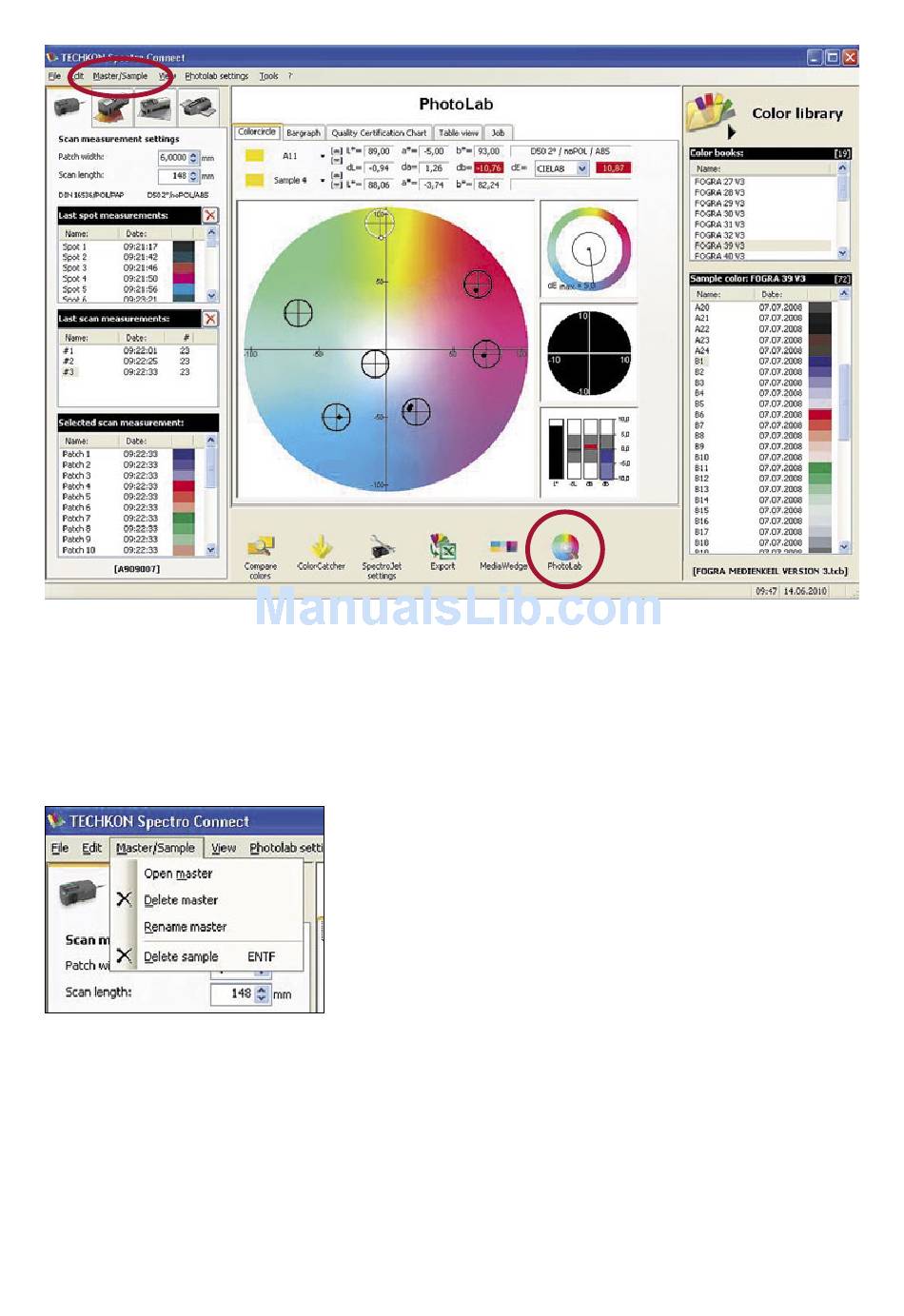

1. Masters and references can be selected
directly with a mouse click or by choosing
from the "pull-down" menu.
Delete and renaming is done via the menu.
Manual TECHKON SpectroJet Chapter 4 – SpectroConnect
2. ...
2. Different modes of the L*a*b*-display can
be selected:
• The modes "Bargraph" and "Quality Cer-
tification Chart" show the trend of ∆L*-,
∆a*- and ∆b*-values of a measurement
series.
• The "Table View" shows all values numeri-
cally.
• In the "Job" window job relevant text data
can be edited.
3. A measurement value highlighted in red
indicates an out-of-tolerance sample.
4. The black circle line indicates the tole-
rance limit of the ∆E*-region. If the black
pointer reaches into the outer segment of
the circle, the tolerance has been exceeded.
5. Enlarged view of the tolerance circle
6. Display of the color components ∆L*, ∆a*
and ∆b*.
3.
4.
5.
6.
