Chapter 3
How to use SpectroJet and the software ExPresso 3

3.1 Operation of SpectroJet

Installation of SpectroJet
4. 3.
Data cable
2.
Push-pull-connection of SpectroJet
UK
Europe
AC adapter with universal plugs
Page 12
1.
USA
Manual TECHKON SpectroJet Chapter 3 – How to use SpectroJet

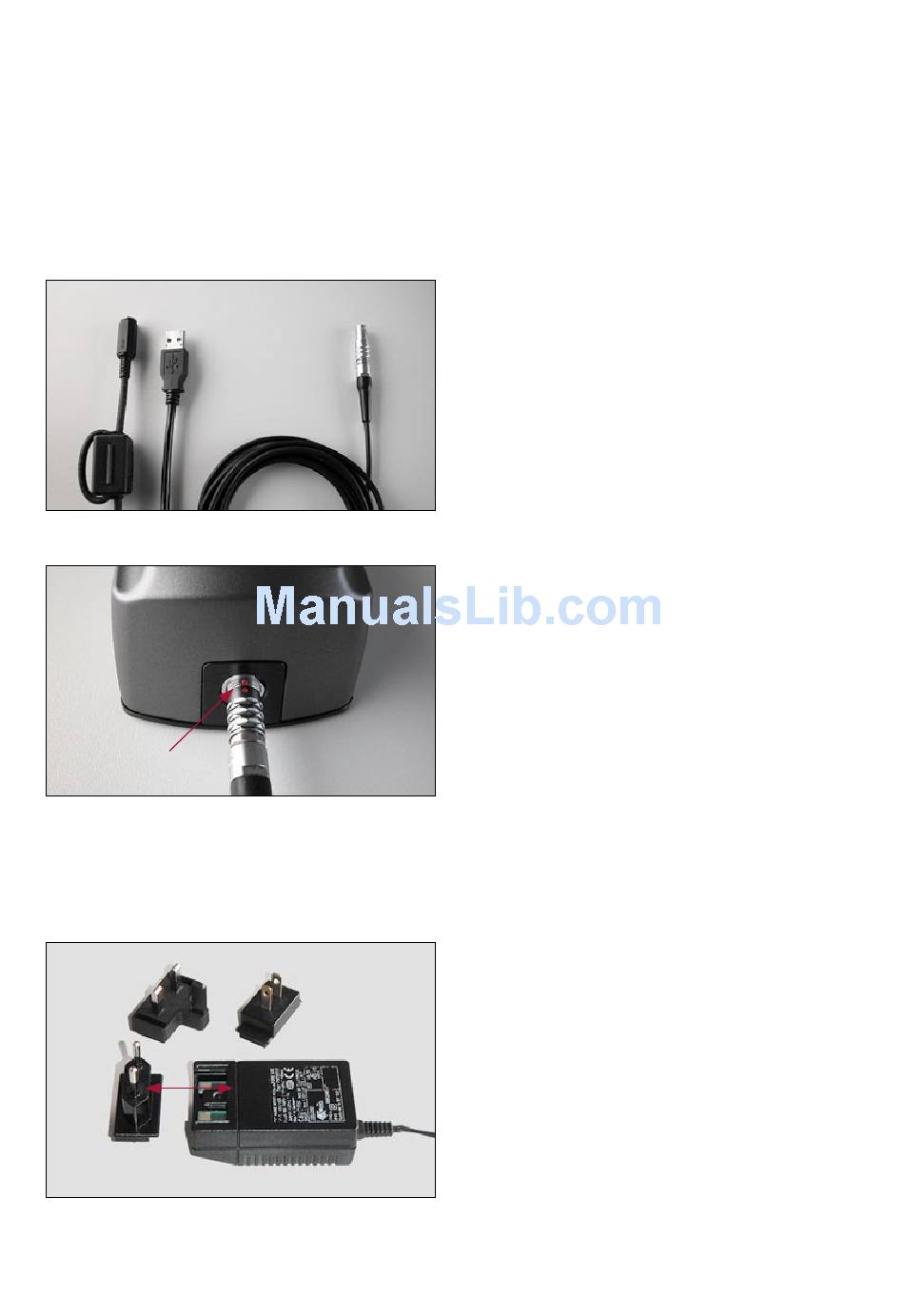

• Connect the push-pull-connector (1.) of
the included data cable with the socket at the
back of the device. Please make sure that you
connect the cable properly.The red dots (2.)
on the connector and the socket will guide
you.The connector has to snap in audible.
Tip: Disconnect the connector from the de-
vice, by grasping the fluted area at the front
of the connector.Thus the movable part of
the connector will shift back when pulled
and the adjustment of the connector in the
socket will be released.
• Connect the USB-connector (3.) at the
other end of the cable with the PC and the
second branch of the cable, which ends in
a phone socket (4.), with the phone jack of
the AC adapter cable. Now connect the AC
adapter to the power network.
When the green LED in the middle of the
LED row is flashing, SpectroJet is ready for
use.
To switch off the device, you just have to
disconnect the AC adapter from the power
network.
The AC adapter can be used universally for
100 – 240 V and a frequency of 47 – 63 Hz.
There are three adapter plugs for different
countries. For changing, just pull the plug and
push in the new one. Make sure that the plug
adapter has a tight fit and use only the origi-
nal TECHKON SpectroJet AC adapter.
