4.3 Overview

The application will be installed in the
Windows program files section in the
folder "TECHKON GmbH / TECHKON
SpectroConnect".

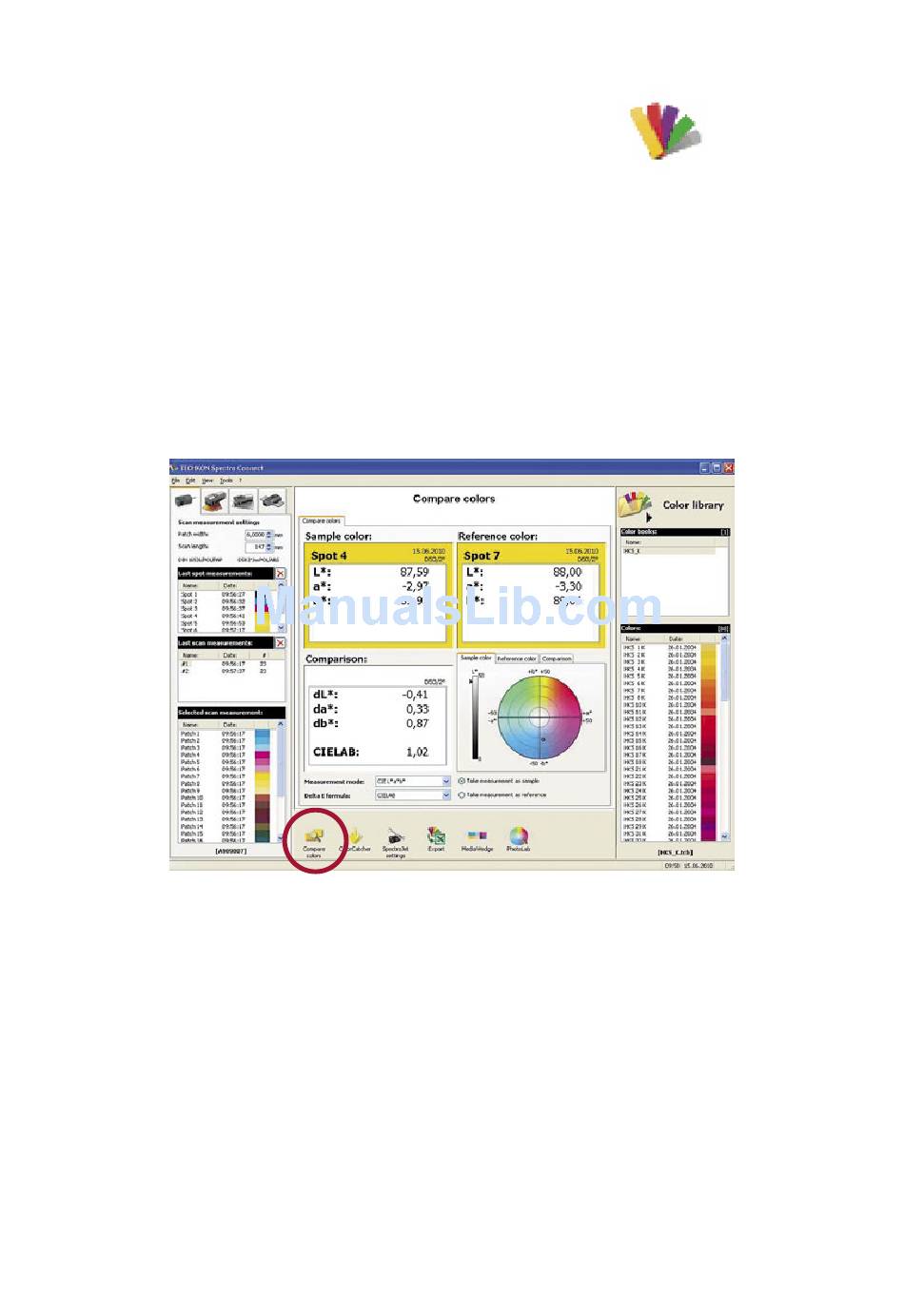

After starting the program the main screen "Compare colors" will appear. It is divided
into four logical segments: On the left side you see the scan measurement settings
and already carried out spot and scan measurements of the connected device, in the
center the active program module, on the right side the color library which is stored
on the PC and in the section at the bottom a bar which lists all available and select-
able program modules.
1.
2.
3.
4.
1. The menu bar includes functions known
from standard Windows applications. They
comprise: New, Open, Save, Print and Quit.
2. The window "Last spot measurements"
shows the last spot measurements carried
out.
3. The window "Last scan measurements"
shows the last scan measurements carried
out.
Manual TECHKON SpectroJet Chapter 4 – SpectroConnect
5.
4. "Selected scan measurement": the whole
information of a selected measurement will
be displayed in the middle of the screen (5.).
5. Window of the active program module.
6. This bar shows the list of available pro-
gram modules. They can be selected from this
bar directly via mouse click and the applica-
tion will appear in the middle of the display.
After launching SpectroConnect it is pre-set
to display the module "Compare colors".
Software symbol
SpectroConnect
6.
