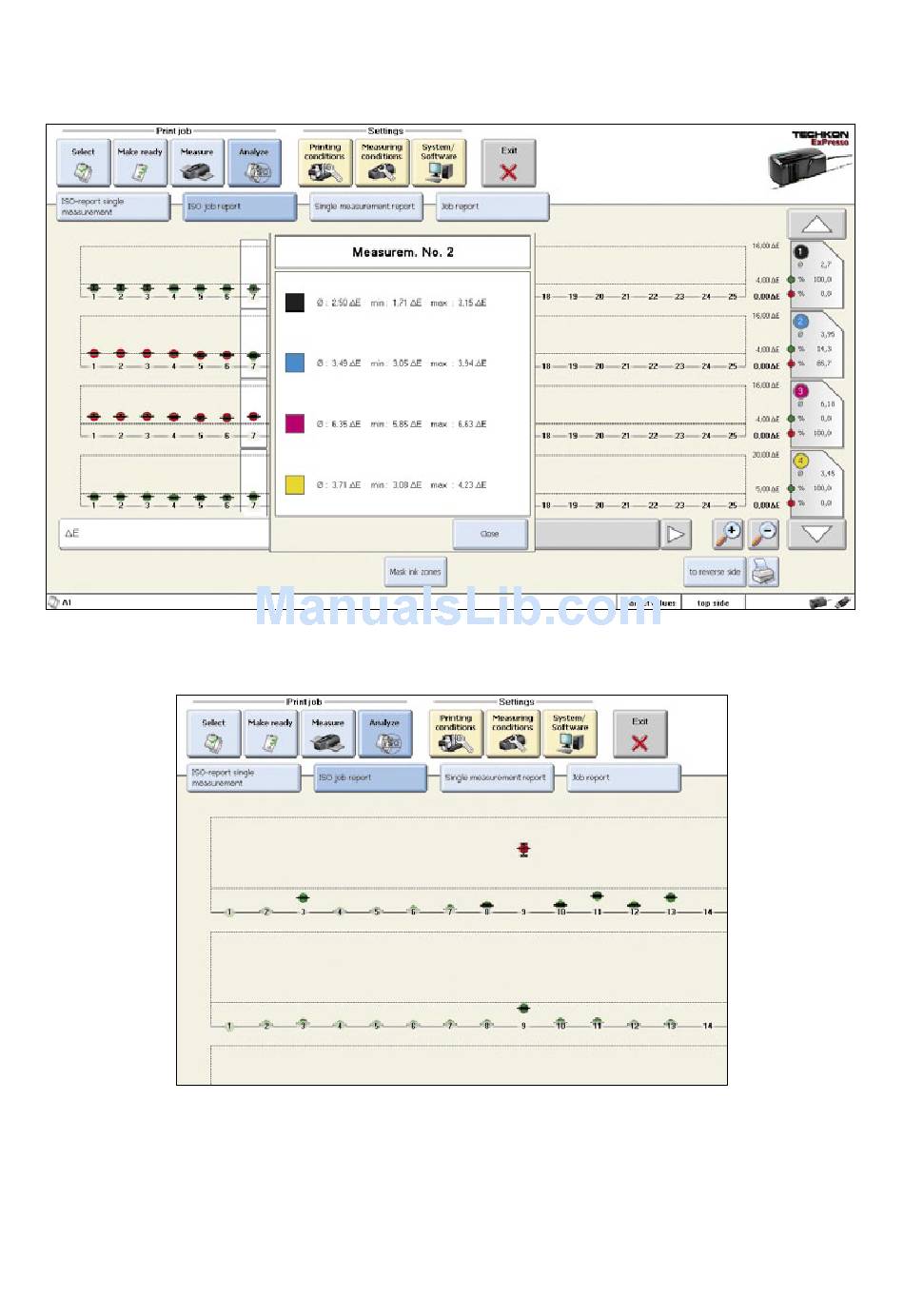

Window: with detailed information "ISO job report" for DE and selected measure-
ment no. 7:
A green dot indicates, that the measurement value meets the tolerance.
1.
The example shows a red dot in the measurement series no. 9 (1.), which signalizes a measure-
ment value which is out of tolerance. This is also indicated by the fact that the position of the
dot is far above the base line.
The variation within a sheet is described by a vertical line within the dot.The heavier the varia-
tion, the longer the vertical line.
