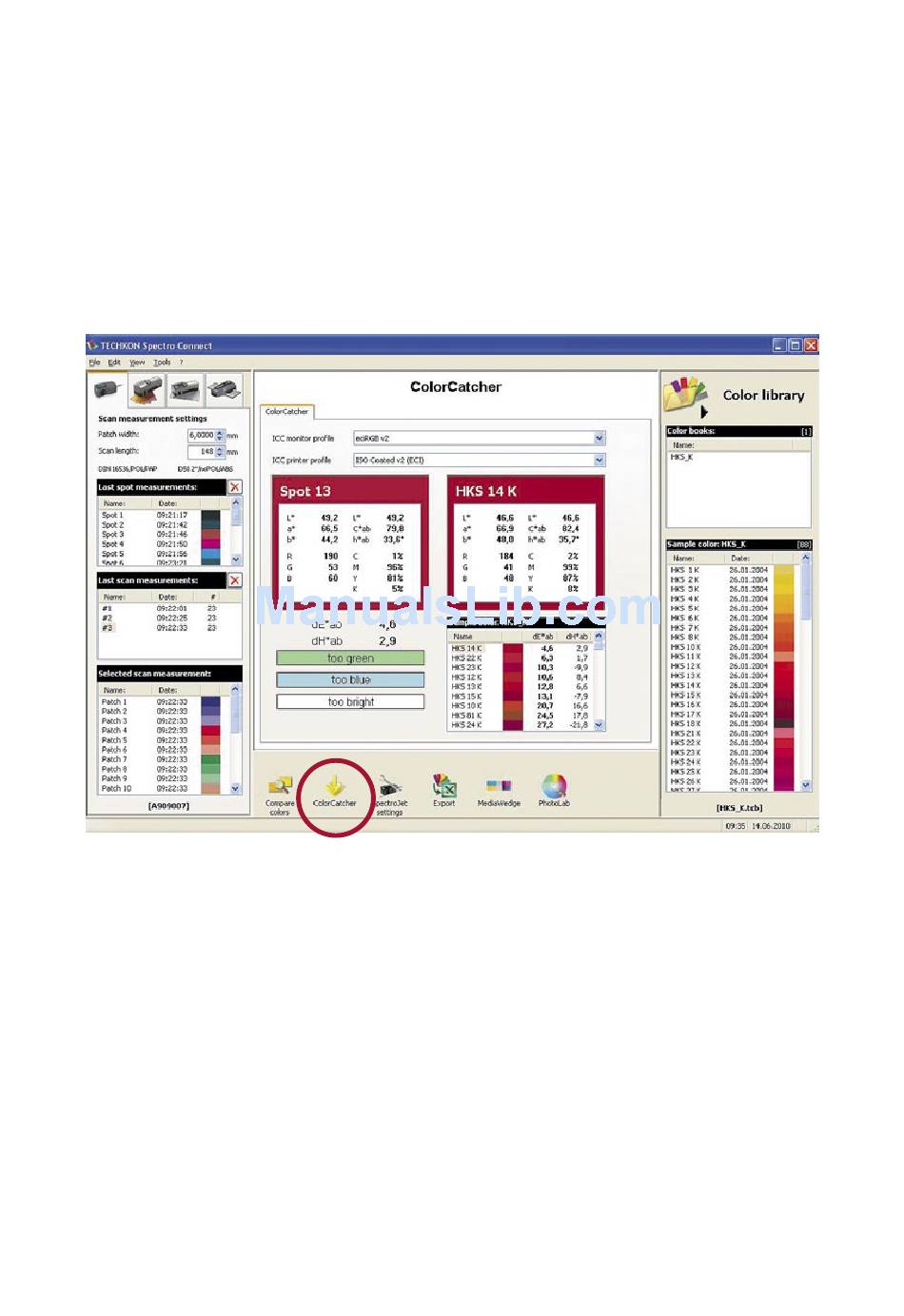

4.7 Software module "ColorCatcher"

Based on a L*a*b*-measurement and referring to selected ICC profiles the program
module "ColorCatcher" displays the conversion into the color models L*C*h*,
RGB and CMYK. Furthermore an automatic search for the closest matching color
of a pre-set or self created color book is carried out. The lower part of the module
window informs you about the exact color deviations between the sample and the
recommended color of the color book.
1. Selected ICC profiles
2. Measured sample color
3. Calculation of L*a*b*-, RGB-, L*C*h*- and
CMYK values based on selected ICC profiles
for the current sample.
4. Shows the closest match to the current
sample out of the selected color book.
5. Calculation of L*a*b*-, RGB-, L*C*h*- and
CMYK values based on selected ICC profiles.
Manual TECHKON SpectroJet Chapter 4 – SpectroConnect
2.
3.
8.
9.
1.
4.
5.
6. Self created color book
7. Colors from a color book
8. Variations and visible differences
9. Software module "ColorCatcher"
6.
7.
Page 67
