5 - 34 BRAKES
REMOVAL AND INSTALLATION (Continued)
1 – CALIPER GUIDE PIN BOLT
2 – SLEEVE
3 – BUSHING
4 – CALIPER
5 – PISTON SEAL
6 – PISTON
7 – DUST SEAL
8 – WEAR INDICATOR
9 – ANTI-RATTLE CLIP

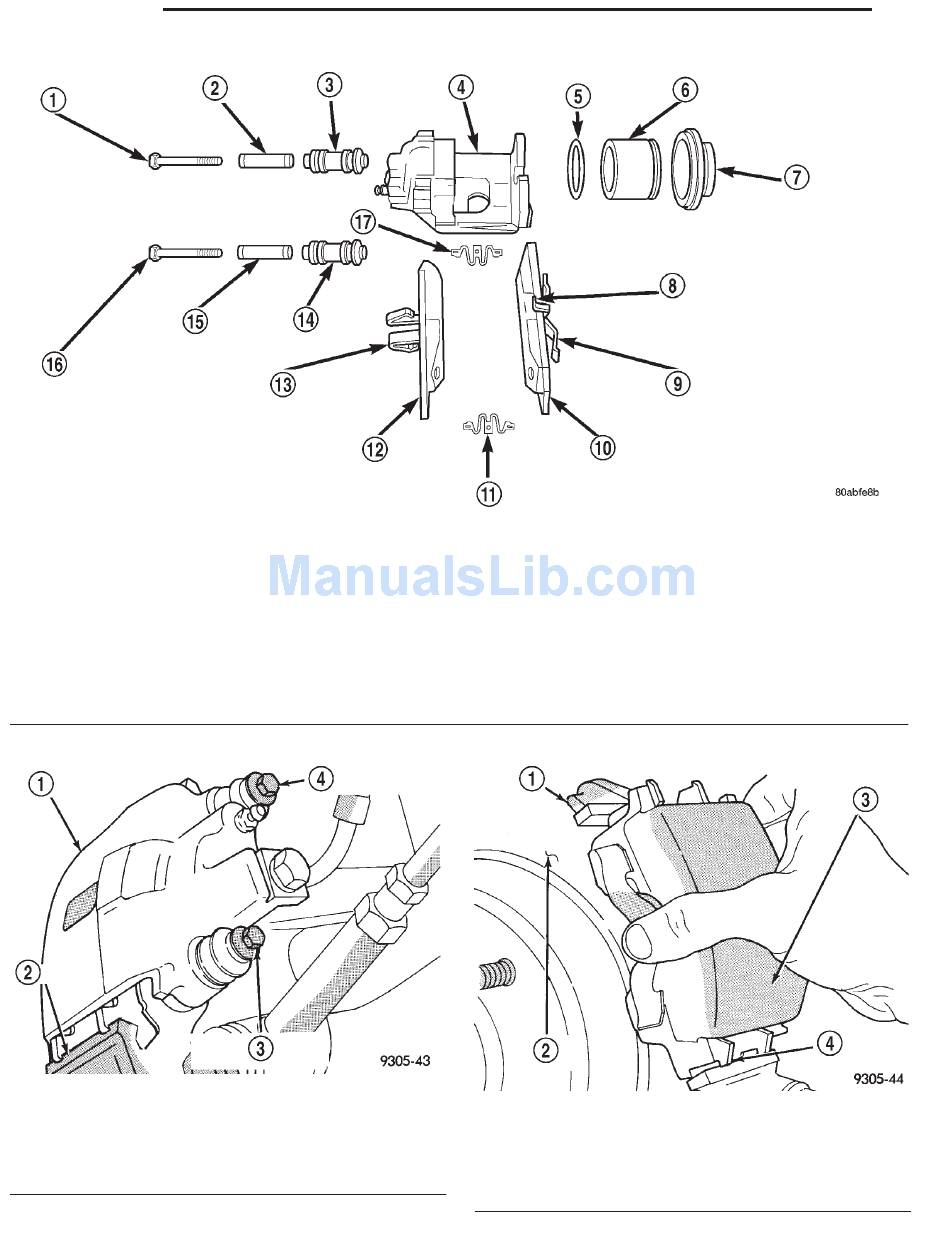

Fig. 59 Removing Caliper Guide Pin Bolts
1 – CALIPER ASSEMBLY
2 – ADAPTER
3 – CALIPER ASSEMBLY ATTACHING BOLT
4 – CALIPER ASSEMBLY ATTACHING BOLT
Fig. 58 Front Disc Brake Caliper With Retractor Clips
10 – BRAKE SHOE
11 – RETRACTOR CLIP
12 – BRAKE SHOE
13 – ANTI-RATTLE CLIP
14 – BUSHING
15 – SLEEVE
16 – CALIPER GUIDE PIN BOLT
17 – RETRACTOR CLIP
Fig. 60 Removing / Installing Caliper Assembly
1 – ADAPTER
2 – BRAKING DISC
3 – CALIPER ASSEMBLY
4 – ADAPTER ABUTMENT
LH
