2.3 Connecting the SIP Paging Adapter

Before you connect the SIP Paging Adapter, be sure that you have received all of the parts
described in
See

2.3.1 Ground Connection

This connection allows you to connect the device to an electrical ground.

2.3.2 Line In

This RCA 10K Ohm Hi-Z input connection allows you to connect the device to The RCA line-out
(10K Ohm Hi-Z) of an external audio amplifier. The level of this input can be controlled by the
potentiometer located on the front of the device (see
Parameters").

2.3.3 Line Out

This RCA 10K Ohm Hi-Z output connection allows you to connect the device to The RCA line-in
(10K Ohm Hi-Z) of an external audio amplifier.
CyberData Corporation
Section 2.1, "Parts
Figure 2-2 for the connection options that are available for the SIP Paging Adapter.
Line In
Ground Connection
List".

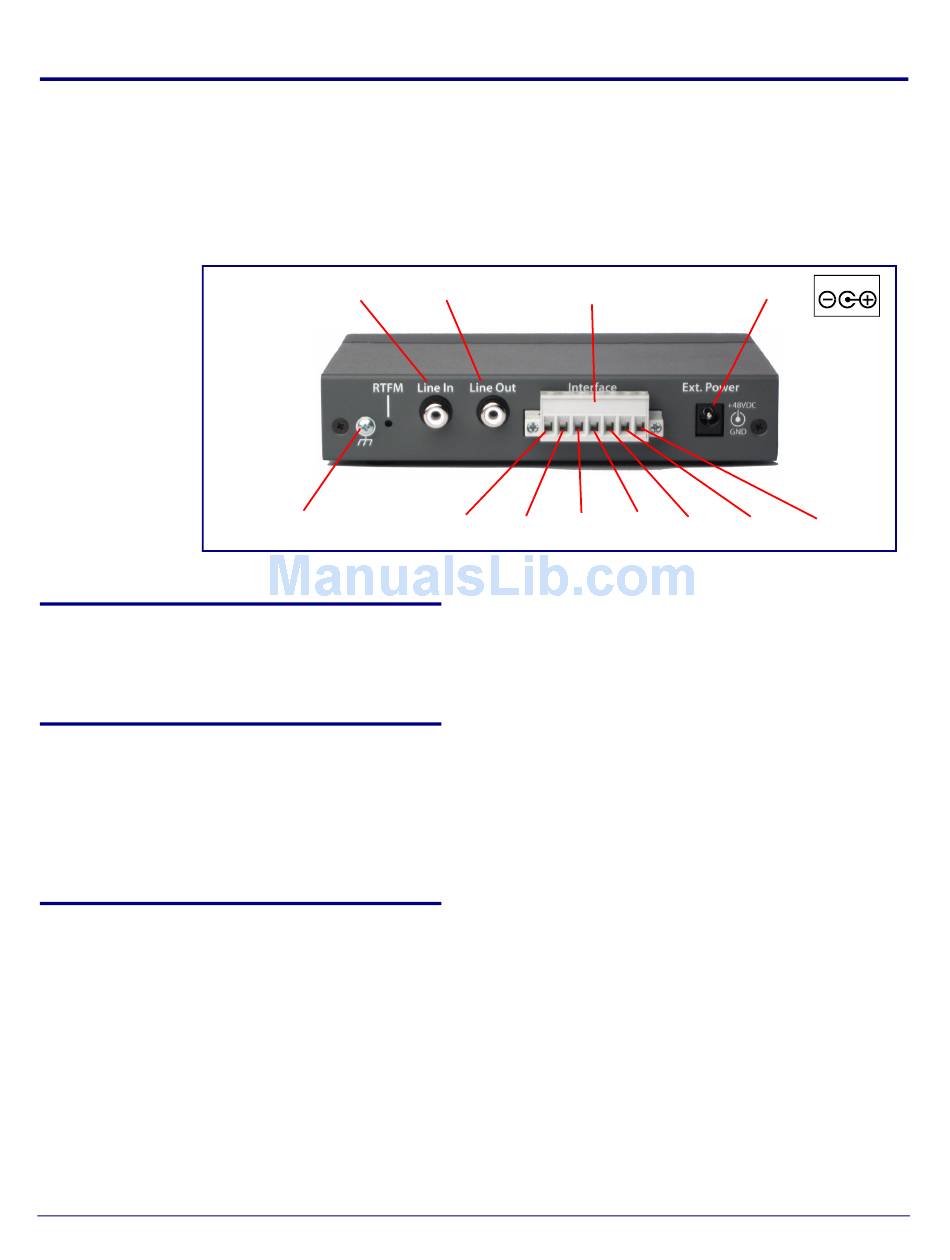

Figure 2-2. Connection Options
Line Out Page Port Output Connections
Pin 1 Pin 2 Pin 3
Section 2.6.9, "Configure the Fault Detection
931087G
Setting Up the SIP Paging Adapter
Ground Connection
Power
Pin 4 Pin 5 Pin 6
Operations Guide
7
48VDC
Pin 7
