CyberData 011233 Installation Quick Reference

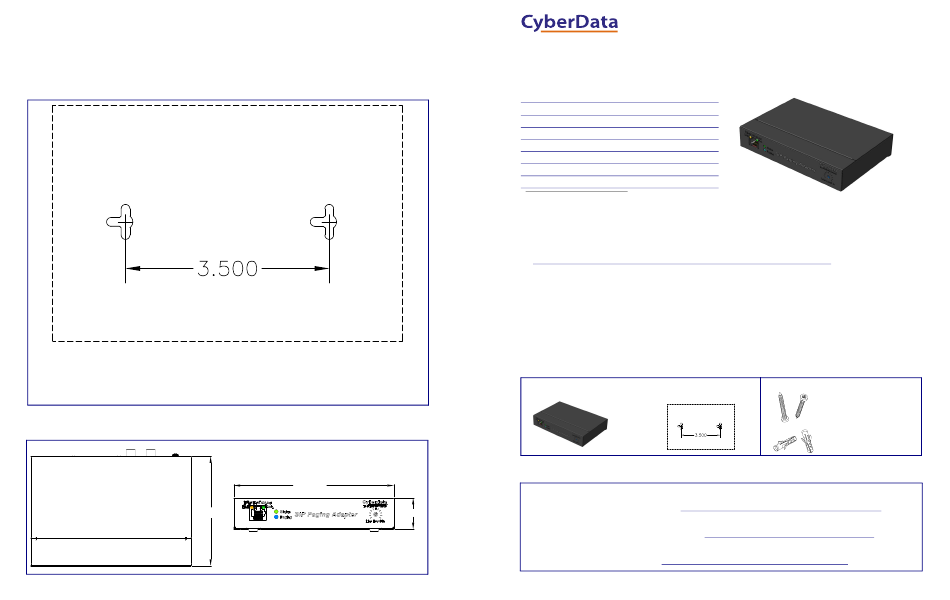

Mounting
You have the option to use the following mounting template to mark, and then drill two 3/16-inch (0.1875-inch) holes for
the mounting anchors.
To install and mount the SIP Paging Adapter:
1. Install the mounting anchors in the holes, and position the SIP Paging Adapter mounting holes over the anchors.
2. Use the two #6 sheet metal screws to secure the SIP Paging Adapter onto the mounting surface.
Drill Hole Size for Anchor Installation: 3/16-inch (0.1875-inch)
Dimensions
4.1 [104.0]
© 2014, CyberData Corporation, ALL RIGHTS RESERVED
6.0 [152.4]
Dimensions are in Inches [Millimeters]
Dimensions are in Inches [Millimeter]
930613E Quick Reference
The IP Endpoint Company
Parameter
IP Addressing
a
IP Address
Web Access Username
Web Access Password
a
Subnet Mask
a
Default Gateway
a. Default if there is not a DHCP server present.
Getting Started
• Be sure that you have received all the parts described in the
• Download the Operations Guide at the following website:
http://www.cyberdata.net/products/voip/legacyanalog/sippagingadapter/docs.html
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building
codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the
installation instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside
plant.
• WARNING: This enclosure is not rated for any AC voltages!
Parts List
(1) SIP Paging Adapter
Contacting CyberData
Corporate Headquarters
CyberData Corporation
1.2 [29.6]
3 Justin Court
Monterey, CA 93940, USA
Phone: 831-373-2601
Fax: 831-373-4193
www.CyberData.net
Quick Reference
Installation Quick Reference
SIP Paging Adapter
SIP Compliant
011233
Factory Default Setting
DHCP
10.10.10.10
admin
admin
255.0.0.0
10.0.0.1
Parts List section.
(1) Mounting Template
(see the last page)
Sales: (831) 373-2601 ext. 334
Support: 831-373-2601 ext. 333
Web: http://www.cyberdata.net/support/contactsupportvoip.php
RMA Dept: (831) 373-2601 ext. 136
Email: RMA@CyberData.net
RMA Status: http://www.cyberdata.net/support/rmastatus.html
Warranty and RMA information is available at the following website:
http://www.cyberdata.net/support/warranty/index.html
930613E © 2014, CyberData Corporation, ALL RIGHTS RESERVED
(1) Mounting Kit
(2) #6 x1.25-inch, PanHead,
Phillips Sheet Metal Screw
(2) Plastic Anchors
