CyberData SIP Paging Adapter Connecting
To a bogen pcm2000 zone paging system
Hide thumbs
Also See for SIP Paging Adapter:
- Configuration manual (58 pages) ,
- Connecting (6 pages) ,
- Connections (2 pages)
Related Manuals for CyberData SIP Paging Adapter
Summary of Contents for CyberData SIP Paging Adapter

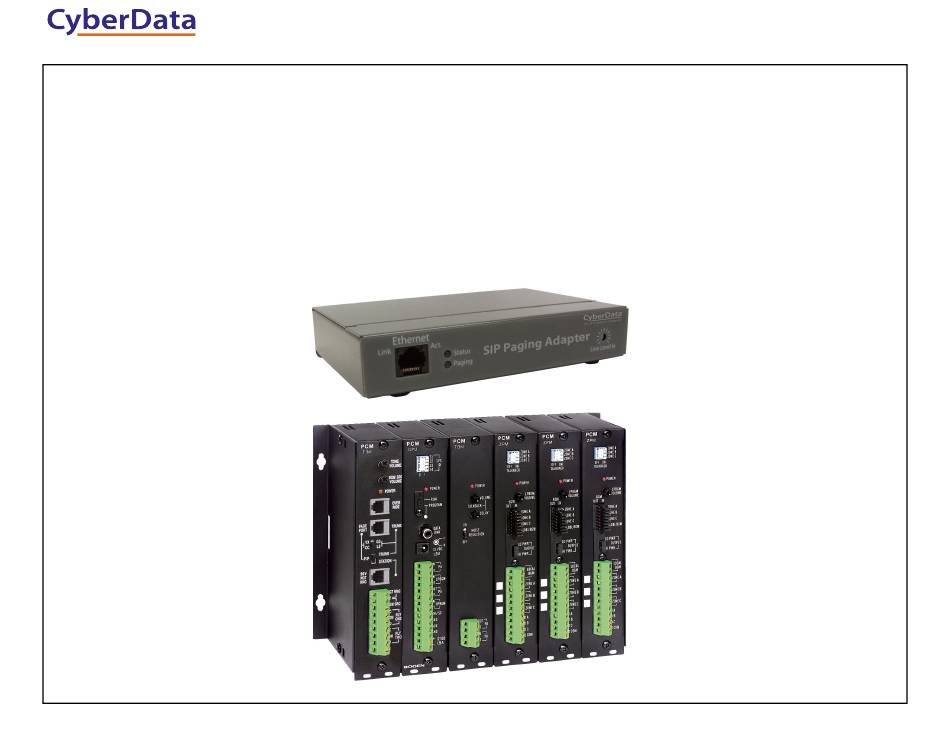

- Page 1 The IP Endpoint Company Connecting a CyberData SIP Paging Adapter to a Bogen PCM2000 Zone Paging System 930671D...
- Page 2 Which version of the Bogen PCMTIM do I have? Old PCMTIM (Use pages 3 and 4) New PCMTIM (Use pages 5 and 6) POWER TONE VOLUME BGM SRC VOLUME NIGHT RING LINE OVER RIDE GND ST 930671D...
- Page 3 Bogen PCM2000 Zone Paging System with Old PCMTIM to SIP Paging Adapter Connections—Contact Closure Configuration The IP Endpoint Company Bogen PCM2000 Application Configuration SIP Paging Adapter Connections Power off PCM system to set dip switches S2, S3 POWER and S7 to the right and S1, S4, S5 and S6 to the left...
- Page 4 Bogen PCM2000 Zone Paging System with old PCMTIM to SIP Paging Adapter Connections—VOX Configuration The IP Endpoint Company Bogen PCM2000 Application Configuration SIP Paging Adapter Connections Power off PCM system to set dip switches POWER 1 and 7 to the right and 2 through 6 to the left...
- Page 5 Bogen PCM2000 Zone Paging System with New PCMTIM to SIP Paging Adapter Connections—Contact Closure Configuration The IP Endpoint Company Bogen PCM2000 Application Configuration SIP Paging Adapter Connections PAGING PORT CONTACT CLOSURE TRUNK/PAGE PORT 6 - Not used 5 - Contact Closure...
- Page 6 —VOX Configuration Bogen PCM2000 Zone Paging System with New PCMTIM to SIP Paging Adapter Connections The IP Endpoint Company Bogen PCM2000 Application Configuration SIP Paging Adapter Connections PAGING PORT TRUNK/PAGE PORT 6 - Not used 5 - Contact Closure 4 - Dry audio (T)
