Summary of Contents for CyberData Singlewire Paging Adapter

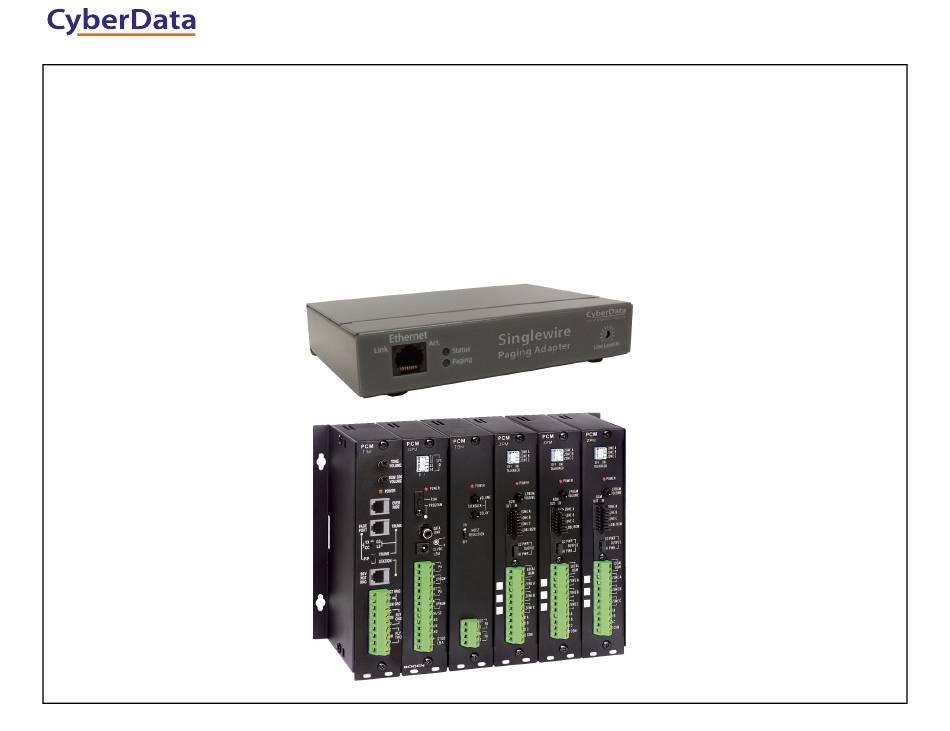

- Page 1 The IP Endpoint Company Connecting a CyberData Singlewire Paging Adapter to a Bogen PCM2000 Zone Paging System 931022A...
- Page 2 Bogen PCM2000 Zone Paging System with Old PCMTIM to Singlewire Paging Adapter Connections—Contact Closure Configuration The IP Endpoint Company Singlewire Paging Adapter Connections Bogen PCMTIM Module Configuration POWER TONE VOLUME BGM SRC VOLUME NIGHT RING TEL LINE 6 - Not used...
- Page 3 Bogen PCM2000 Zone Paging System with old PCMTIM to Singlewire Paging Adapter Connections—Contact Closure Configuration The IP Endpoint Company Bogen PCM2000 Application Configuration Singlewire Paging Adapter Connections ZONE A ZONE B ZONE C TALKBACK POWER POWER POWER LPBGM TONE VOLUME...
- Page 4 Bogen PCM2000 Zone Paging System with old PCMTIM to Singlewire Paging Adapter Connections—VOX Configuration The IP Endpoint Company Singlewire Paging Adapter Connections Bogen PCMTIM Module Configuration POWER TONE VOLUME BGM SRC VOLUME NIGHT TEL LINE RING 6 - Not used...
- Page 5 Bogen PCM2000 Zone Paging System with old PCMTIM to Singlewire Paging Adapter Connections—VOX Configuration The IP Endpoint Company Singlewire Paging Adapter Connections Bogen PCM2000 Application Configuration ZONE A ZONE B ZONE C TALKBACK POWER POWER POWER LPBGM TONE VOLUME VOLUME...
- Page 6 Positive 600-Ohm Audio Output Negative 600-Ohm Audio Output Notes Audio Ground Reference. CyberData Singlewire Paging Adapter’s Page Port output connects to the TRUNK/PAGE PORT input on the PCMTIM Relay Contact - Common module using an RJ11 modular connector. Relay Contact - Normally Open Power off the PCMTIM.
- Page 7 Bogen PCM2000 Zone Paging System with New PCMTIM to Singlewire Paging Adapter Connections—Contact Closure Configuration The IP Endpoint Company Bogen PCM2000 Application Configuration Singlewire Paging Adapter Connections ZONE A ZONE B ZONE C TALKBACK POWER POWER PAGING LPBGM VOLUME PORT...
- Page 8 Relay Contact - Common Notes CyberData Singlewire Paging Adapter’s Page Port output connects to the TRUNK/PAGE PORT input on the PCMTIM Relay Contact - Normally Open module using an RJ11 modular connector. Only pins 3 and 4 of the RJ11 modular connector will be used for this configu- a.The 600-Ohm audio output of the page port is...
- Page 9 Bogen PCM2000 Zone Paging System with New PCMTIM to Singlewire Paging Adapter Connections—VOX Configuration The IP Endpoint Company Bogen PCM2000 Application Configuration Singlewire Paging Adapter Connections ZONE A ZONE B ZONE C TALKBACK POWER POWER PAGING LPBGM VOLUME PORT PROGRAM...
