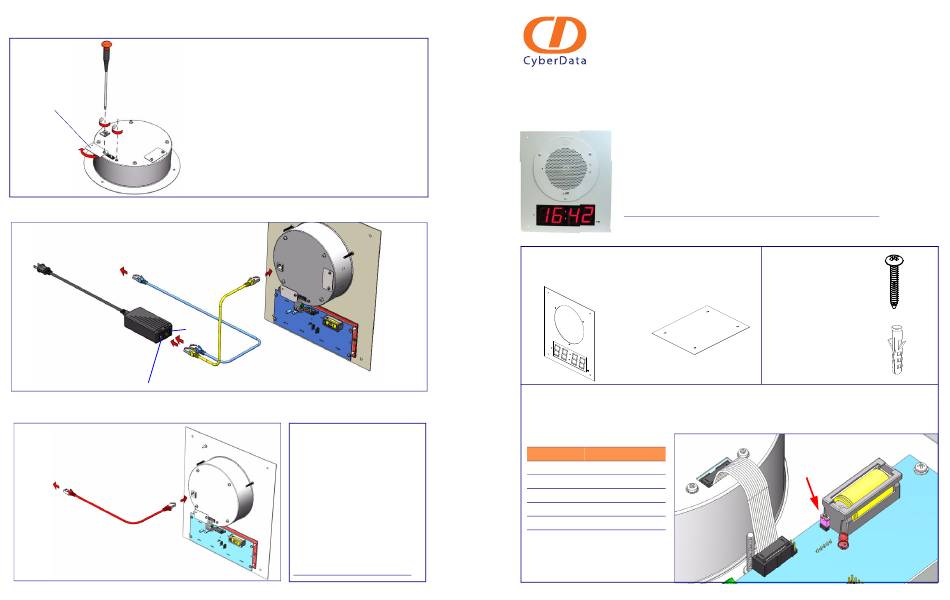

CyberData 011107 Installation Quick Reference

Moving the Clock Connector Cover Plate
Cover plate
Connecting Power (optional power injector)
To Network
Ethernet
Optional power injector
(CyberData # 010867A)
Device
Connecting Power (PoE)
To PoE Network
© 2010, CyberData Corporation, ALL RIGHTS RESERVED
1. Unscrew and remove the two attachment cover screws.
2. Remove the clock connector cover plate and and rotate it
180 degrees to the left.
3. Screw and tighten the cover screws to secure the cover
plate in place (as shown in the picture).
Contacting CyberData
Corporate Headquarters
CyberData Corporation
2555 Garden Road
Monterey, CA 93940, USA
Phone: 831-373-2601
Fax: 831-373-4193
www.CyberData.net
Sales: (831) 373-2601 ext. 334
Support: 831-373-2601 ext. 333
Email: support@CyberData.net
RMA Dept: (831) 373-2601 ext. 136
Email: RMA@CyberData.net
Warranty information available at:
http://www.CyberData.net/index.html
930350D
Wall Mount Adapter Parts
(1) Flush Wall Mount Adapter
Install Jumper JP1 Prior to Installing the Clock Kit
Make sure that jumper JP1 is installed prior to installing the Clock Kit (see the picture on the right). Installing JP1 powers
the Real Time Clock from the battery. If you do not install JP1, the clock will lose it's time when the power is disconnected.
Jumper Functions:
Jumper
JP1
JP2
JP3
JP4
JP5
Quick Reference Quick Reference
Installation Quick Reference
Clock Kit Flush Mount Adapter for
Indoor Paging Speakers
011106*, RAL 9002, Gray White, Standard
011107, RAL 9003, Signal White, Optional
*Replaces the 011024 number.

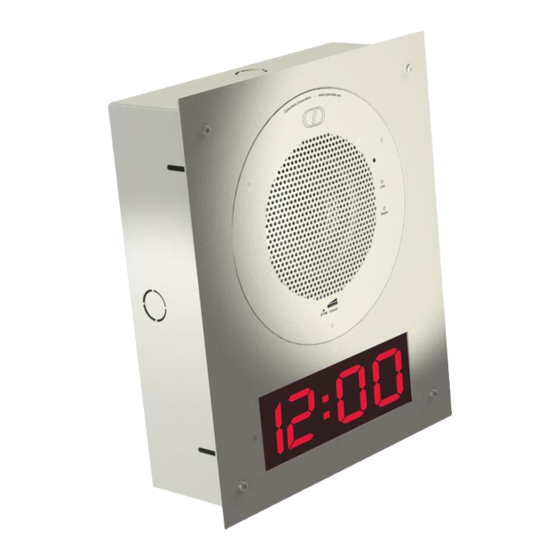

The Clock Kit enables the CyberData V2 VoIP Ceiling Speaker to be upgraded to a highly
visible public address device with a time display.
The large display characters are easily read and adjust for ambient light conditions. Time
sync is performed by NTP and a built-in real -time clock.
Power is supplied by the CyberData V2 Speaker from a single PoE connection.
The Clock Kit Flush Mount Adaptor Operations Guide is available as a PDF file at:
http://www.cyberdata.net/products/voip/digitalanalog/clockkit/docs.html
(1) Template for Wall Mount
Adapter and Screw Holes
(on placemat)
Function
Battery - Connect
Manufacturing - Open
Manufacturing - Open
Manufacturing - Open
Manufacturing - Open
930350D
(1) Drywall Mounting Kit
(4) 10-12 x 1.25-inch Pan Head
Phillips Screws
(4) #10 Plastic Ribbed Anchor
JP1
© 2010, CyberData Corporation, ALL RIGHTS RESERVED
