CyberData 011280 Installation Quick Reference

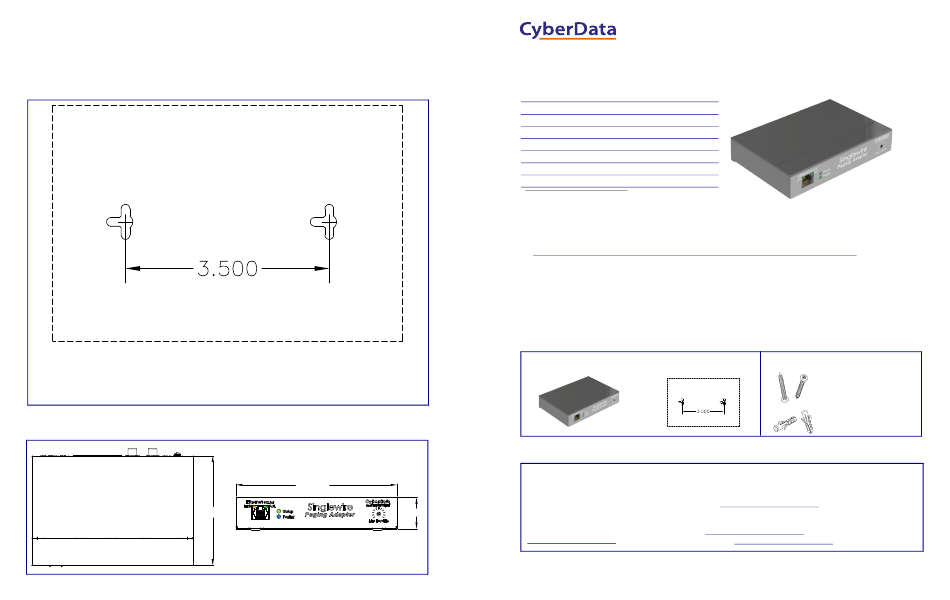

Mounting
You have the option to use the following mounting template to mark, and then drill two 3/16-inch (0.1875-inch) holes for
the mounting anchors.
To install and mount the Singlewire Paging Adapter:
1. Install the mounting anchors in the holes, and position the Singlewire Paging Adapter mounting holes over the
anchors.
Drill Hole Size for Anchor Installation: 3/16-inch (0.1875-inch)
Dimensions
4.1 [104.0]
© 2015, CyberData Corporation, ALL RIGHTS RESERVED
6.0 [152.4]
Dimensions are in Inches [Millimeters]
Dimensions are in Inches [Millimeter]
930730E Quick Reference
The IP Endpoint Company
Parameter
IP Addressing
a
IP Address
Web Access Username
Web Access Password
a
Subnet Mask
a
Default Gateway
a. Default if there is not a DHCP server present.
Getting Started
• Be sure that you have received all the parts described in the
• Download the Operations Guide at the following website:
http://www.cyberdata.net/products/voip/digitalanalog/singlewirepagingadapter/docs.html
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Parts List
(1) Singlewire Paging Adapter
Contacting CyberData
Corporate Headquarters
CyberData Corporation
3 Justin Court
Monterey, CA 93940, USA
1.2 [29.6]
Phone: 831-373-2601
Fax: 831-373-4193
http://www.cyberdata.net/
Quick Reference
Installation Quick Reference
Singlewire Paging Adapter
011280
Factory Default Setting
DHCP
10.10.10.10
admin
admin
255.0.0.0
10.0.0.1
Parts List section.
(1) Mounting Template
(see the last page)
Sales: (831) 373-2601 ext. 334
Support: 831-373-2601 ext. 333
Support Website: http://support.cyberdata.net/
RMA Department: (831) 373-2601 ext. 136
RMA Email: RMA@CyberData.net
RMA Status: http://support.cyberdata.net/
Warranty Information: http://support.cyberdata.net/
930730E © 2015, CyberData Corporation, ALL RIGHTS RESERVED
(1) Mounting Kit
(2) #6 x1.25-inch, PanHead,
Phillips Sheet Metal Screw
(2) Plastic Anchors
