Figure 4-2 shows the rear panel of the MGC+100. The rear panel provides
access to the network I/O card connectors. I/O cards are inserted via the rear
panel. In addition, the rear panel houses the main power switch, AC inlet,
fans, the circuit breaker, additional communications ports and alarm ports.
The alarms port provides dry contacts for major and minor alarms.
Main Switch
AC Inlet

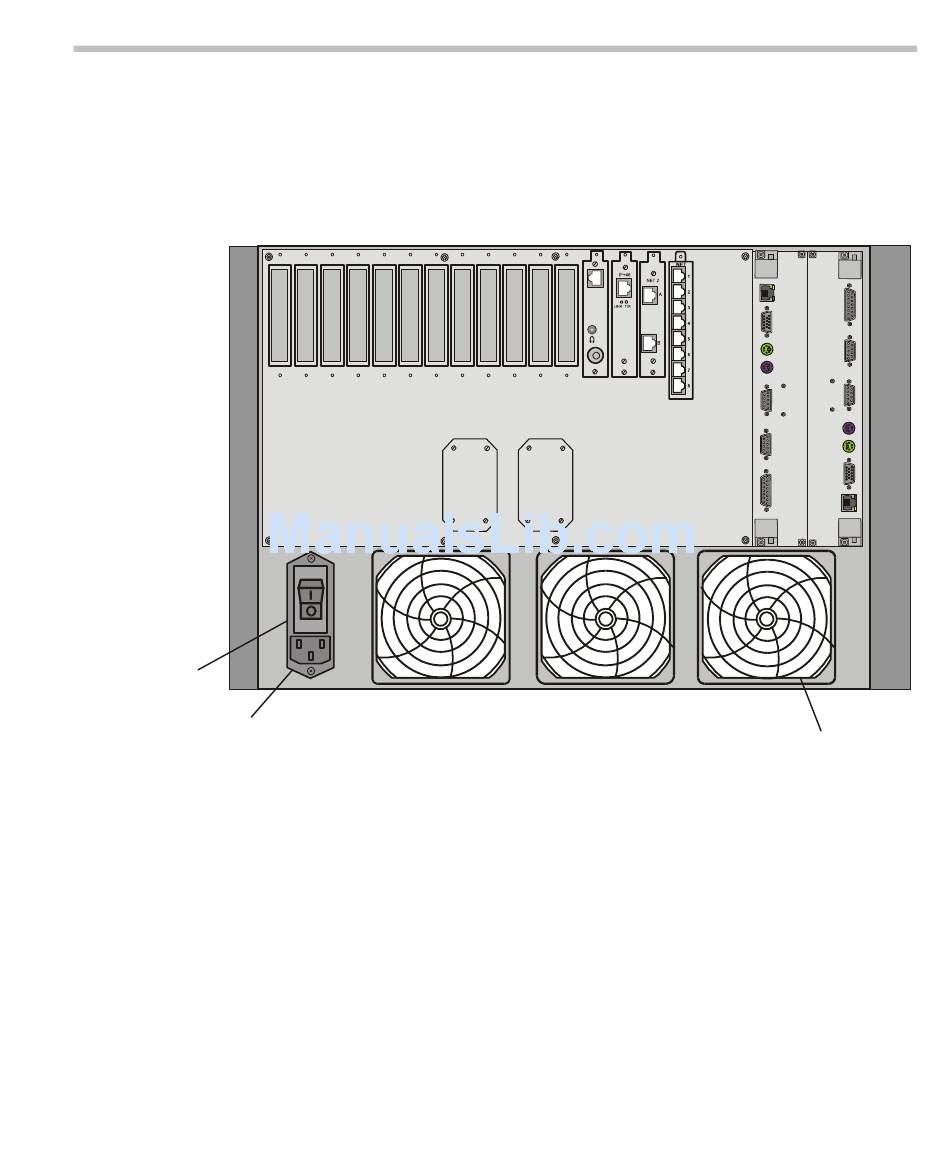

Figure 4-2: MGC+100 rear panel with external connectors
MGC+ Hardware and Installation Manual
DEBUG
LINE IN
LAN
VGA
MOUSE
COM2
KEYBOARD
COM1
COM1
KEYBOARD
COM2
MOUSE
VGA
ALARMS
LAN
Fan
4-3
