Connecting and Setting Up the MGC+100

Main Switch
Use the MGC+100 rear panel diagram below for reference.
AC Inlet

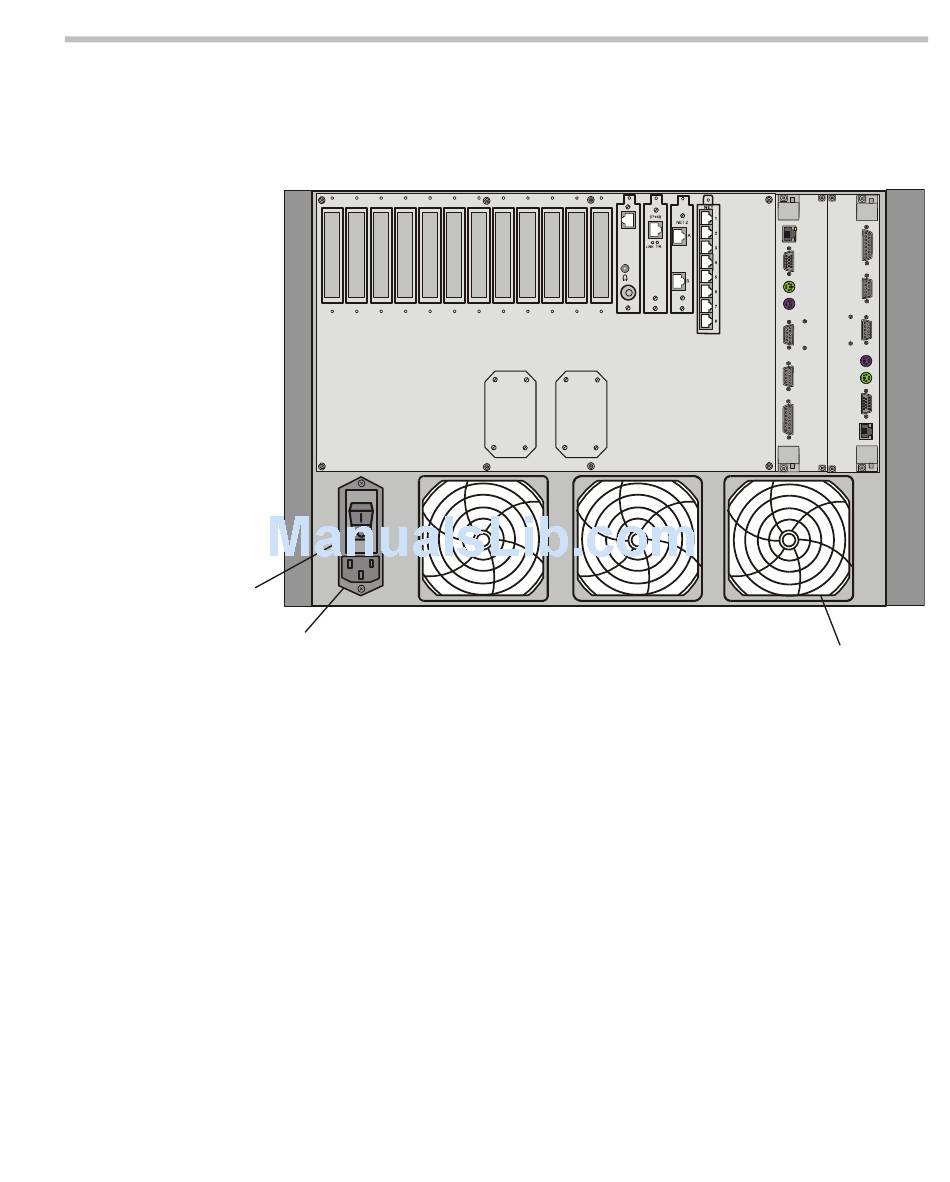

Figure 2-8: MGC+100 Rear Panel with External Connectors
To Connect the MGC+100 to the network and power source and set up
the system the following procedures are performed:
Connecting the MGC+ unit to the power source (AC inlet)
•
Connecting the MGC+ unit to the LAN Network
•
Connecting the MGC+ unit to the Operator Workstation (PC) directly via
•
RS-232 (optional) using COM2
Connecting the MGC+ unit to the network(s)
•

MGC+100 Dongle

MGC+100 is shipped with a serial dongle and is installed on COM1 of the
Control Module rear I/O panel. A special bracket ensures that the dongle
remains in its fixed position. The dongle is required for normal operation of
the MCU. If the dongle is missing, please contact support.
