Input/Output (I/O) Boards

On the MGC+ there a number of I/O cards that can be installed on the MGC+:
• I/O board of the ReadiManager IAM
• I/O board of the Control Unit (CU)
• Input/Output (I/O) cards connected to Functional Modules
• Music card connected to the Audio+

Rear I/O Boards

The Control board can house two I/O board and are connected behind the
Backplane of the Control Unit and ReadiManager IAM. These I/O cards
enable connections to the MGC+ Control Unit and ReadiManager IAM.
MGC+ CUI/O
DEBUG
LINE IN

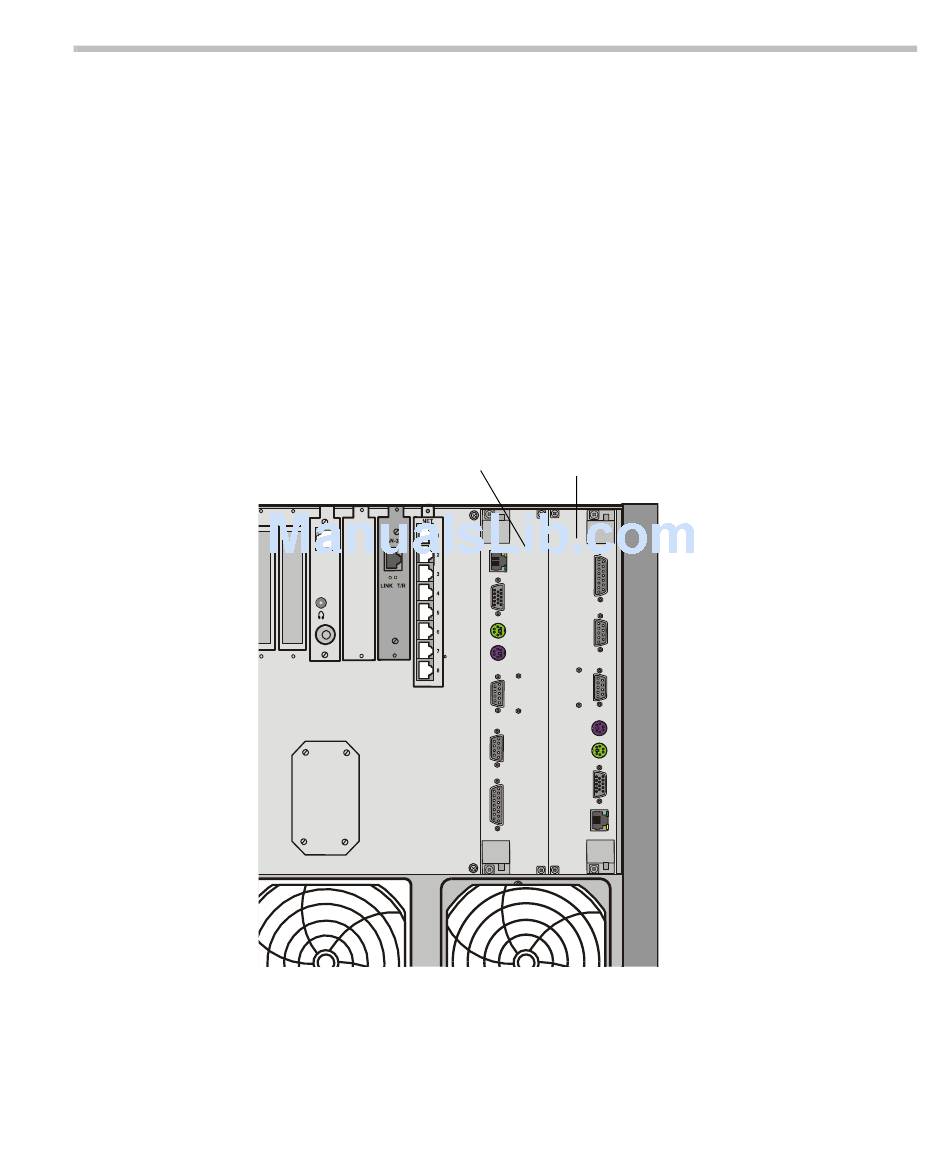

Figure 4-25: MGC+ Control Unit and ReadiManager IAM rear I/O panels
MGC+ Hardware and Installation Manual
ReadiManager I/O
LAN
VGA
MOUSE
COM2
KEYBOARD
COM1
COM1
KEYBOARD
COM2
MOUSE
VGA
ALARMS
LAN
