Connecting the MGC+100 to the LAN Network

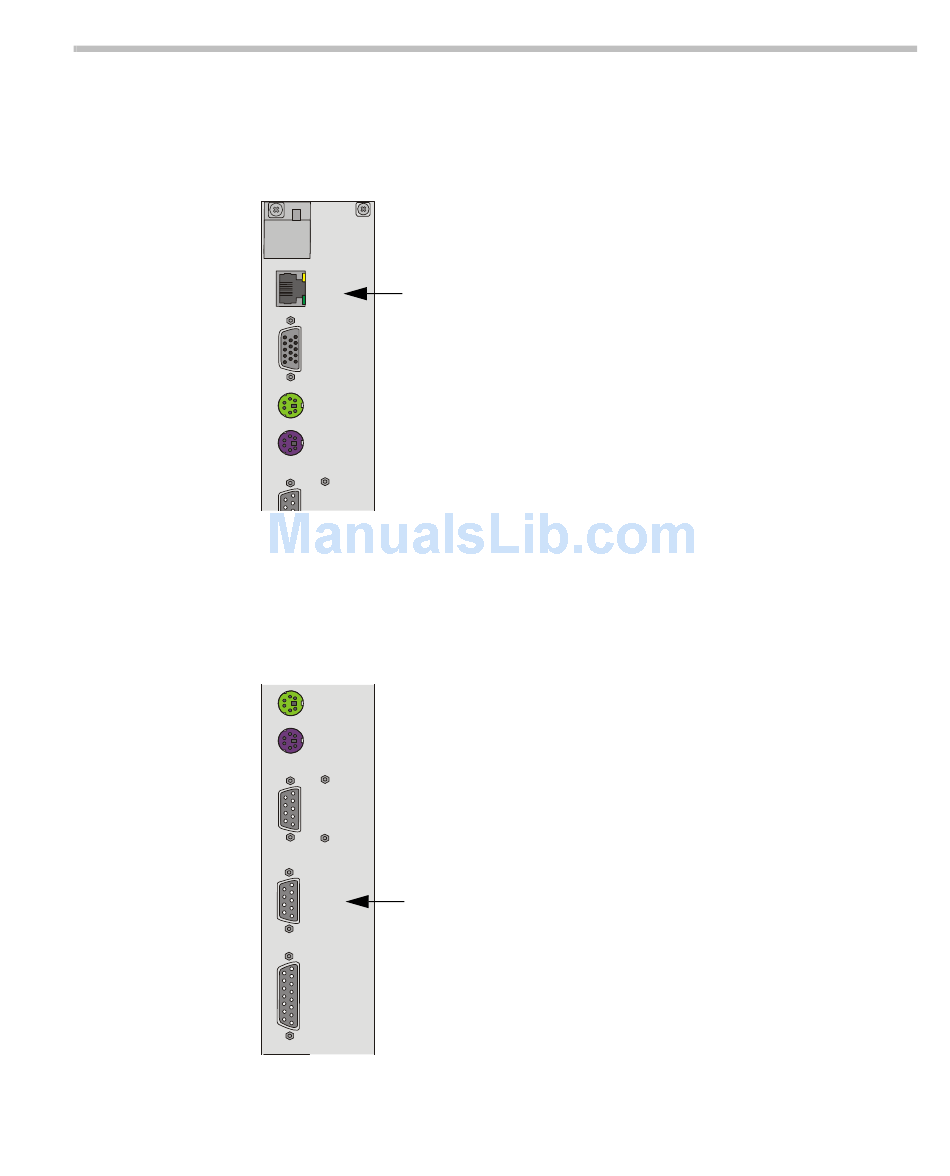

Connect one end of a network cable to the LAN connector on the rear I/O
panel of the MGC+100 Control Module and the other end to the network.
LAN
VGA
MOUSE
KEYBOARD
COM1
Connecting the MGC+100 to the Operator Workstation (PC) Directly
via RS-232 (Optional)
Connect one end of an RS-232 cable to the COM2 connector on the rear panel
of the MGC+100 Control Module and the other end to the serial port of the
operator station (see RS-232 Pin Assignment, A-3).
MOUSE
KEYBOARD
COM1
COM2
ALARMS
