Chapter 2 - Hardware Installation
2-22
MCUs in
23" Rack
POLYCOM
MGC+
Stby Stby Stby St by
Stby Stby Stby Stby Stby St by Stby Stb y Stby
Fail Fail Fa il Fail Fail Fail Fail Fail Fail F ail Fail Fail Fa il Fail
Active Active Active Active Active Active Active Active Active Active Active
Power Power
In In Out

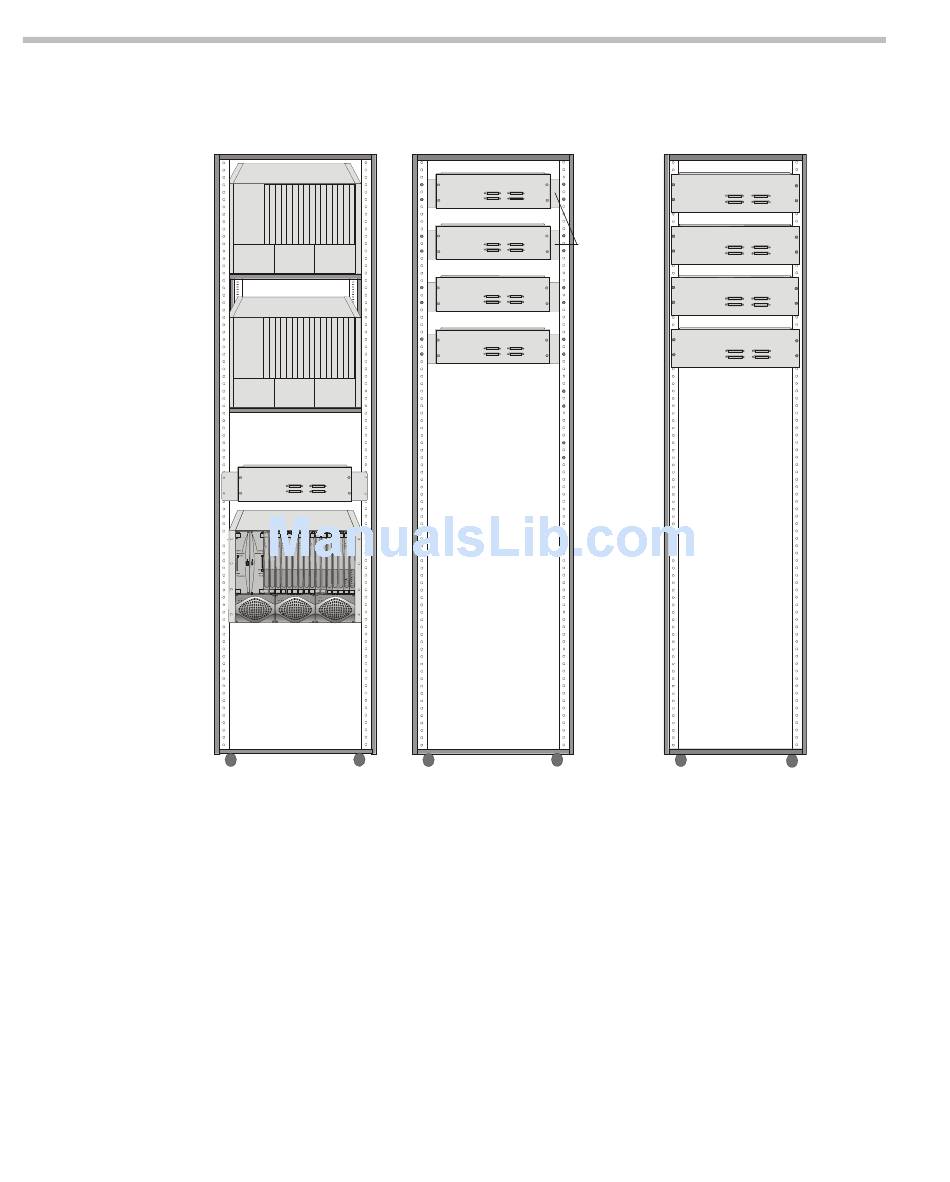

Figure 2-11: MPI Box rack mounting options

To install the MPI-4/8 Network Interface Module:

1. Slide the MPI-4/8 Network Interface module into a free slot in the MGC
front panel.
2. Push the MPI-4/8 Network Interface module firmly into the Backplane,
making sure it is properly seated in its slot.
3. Tighten the screws on the front panel of the MGC-100 that secure the
MPI-4/8 Network Interface module.
MPI Boxes
in 23" Rack
Mounting
Plate
MPI Boxes
in 19" Rack
