Chapter 2 - Hardware Installation

Connecting and Setting Up the MGC+50

2-32
Use the MGC+50 rear panel diagram below for reference.
DEBUG
LINE IN

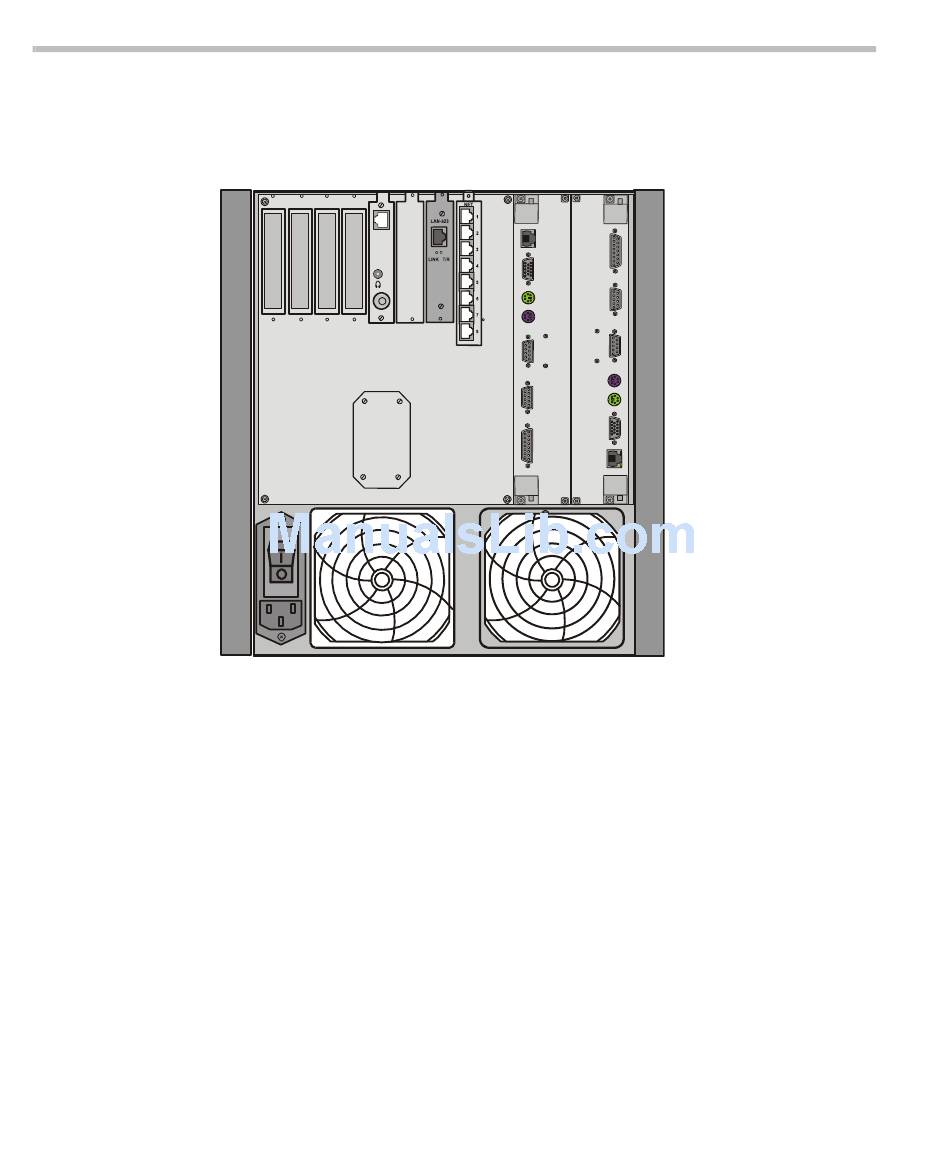

Figure 2-14: MGC+50 Rear Panel with External Connectors
To connect the MGC+50 to the network and power source and set up the
system the following procedures are performed:
Connecting the MGC+ unit to the power source (AC inlet)
•
Connecting the MGC+ unit to the LAN Network (C.B., I/O)
•
• Connecting the MGC+ unit to the Operator Workstation (PC) directly via
COM2 (optional)
• Connecting the MGC+ unit to the network(s)

MGC+50 Dongle

MGC+50 is shipped with a serial dongle and is installed on COM1 of the
Control unit's rear I/O panel. A special bracket ensures that the dongle
remains in its fixed position. The dongle is required for normal operation of
the MCU. If the dongle is missing, please contact support.
LAN
VGA
MOUSE
COM2
KEYBOARD
COM1
COM1
KEYBOARD
COM2 MOUSE
VGA
ALARMS
LAN
