6.

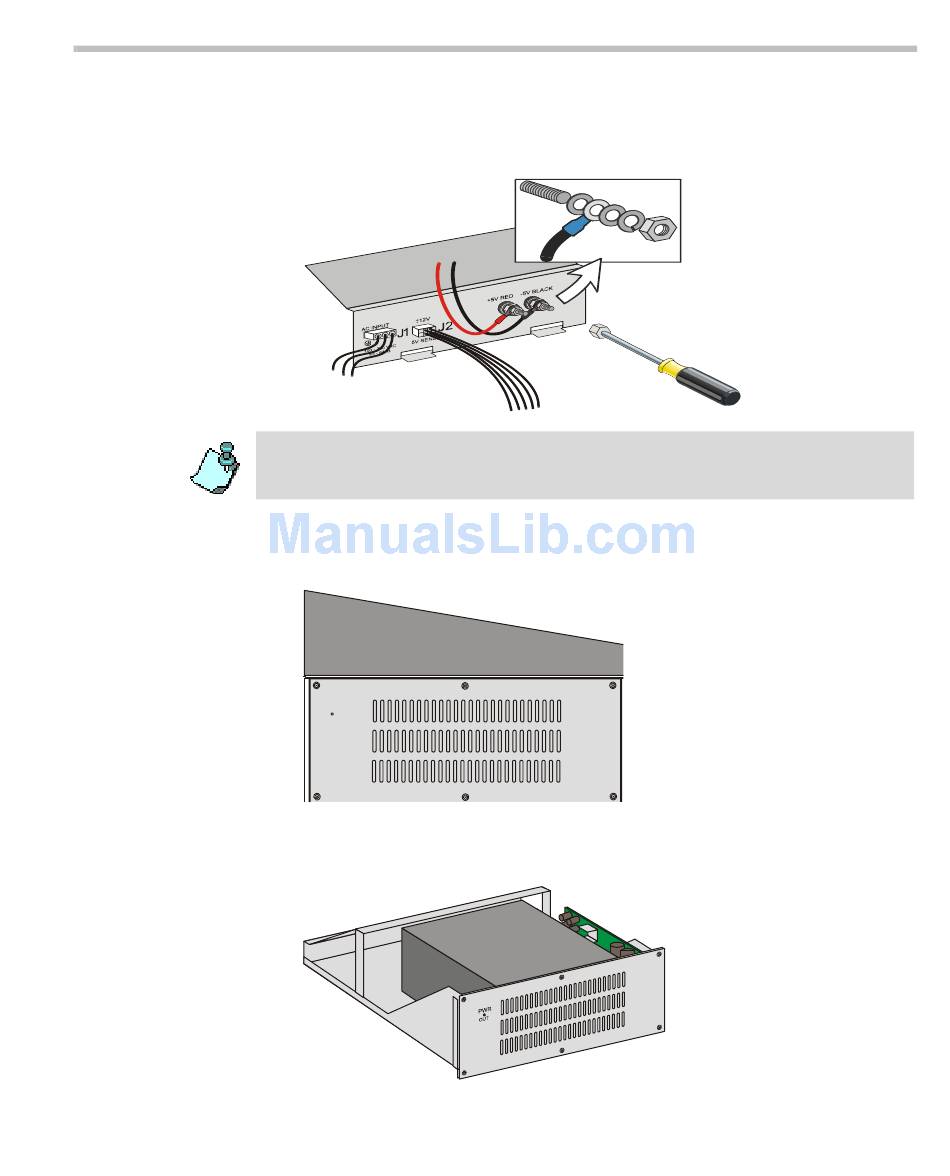

Disconnect the +5V and -5V power cables using a 9/16" (13 mm) M8 nut
driver.
Tighten the two flat washers, the spring washer and the nut back to their +5V
and -5V screws on the faulty unit to be shipped to the manufacturer. These
items are delivered with the new power supply module.
7.
Using a Phillips screwdriver, loosen the six spring-loaded screws on the
front panel of the MGC+50 that secure the Power Supply Module.
PWR
OUT
8.
From the rear, carefully slide the Power Supply Module out through the
front panel and remove.
MGC+ Hardware and Installation Manual
