MGC+ Unit Rear Panel

The rear panel of the MGC+100 and MGC+50 contains a number of controls
for using the MGC+ unit. Figure 5-3 and Figure 5-4 show the back panel and
labels all elements of the MGC+100/50.
Main Switch
AC Inlet

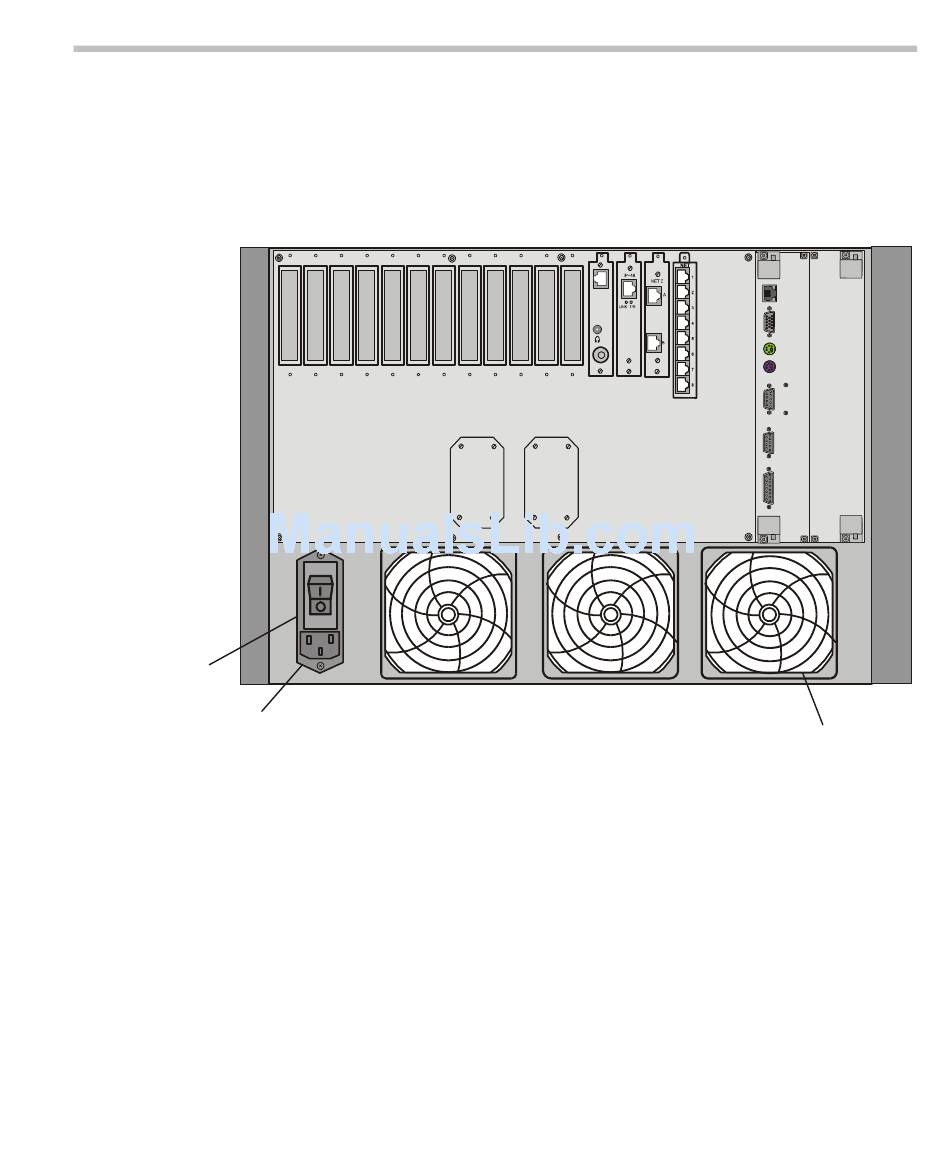

Figure 5-3: MGC+100 rear panel controls
The main power switch is used during installation and replacement of the
main control unit only, since all other MGC+-100 components are hot
swappable. The switch includes an AC circuit breaker.
MGC+ Hardware and Installation Manual
DEBUG
LINE IN
LAN
VGA
MOUSE
KEYBOARD
COM1
COM2
ALARMS
Fan
5-7
