MPI-4/8 Hardware Installation for the MGC+50

The MPI-4/8 Network Interface card is inserted into the MGC+50.
The MPI box is mounted on a 19" rack together with the MGC+50, as can be
seen in Figure 2-13. The MPI box is mounted directly on the rack, above the
MGC+50, leaving at least 6" free space above the MGC+50. For details, on
how to mount the MGC+50, refer to the section "Mounting the MGC+50 on a
Rack" on page 2-28.
MPI Box
in 19" Rack
MPI Box
POLYCOM R
MGC+
Power Power
Mounting Flash Memory Flash Memory
Shut Down
Reset
Plate
HD Major
Minor
Remove Server
Powe r
Out

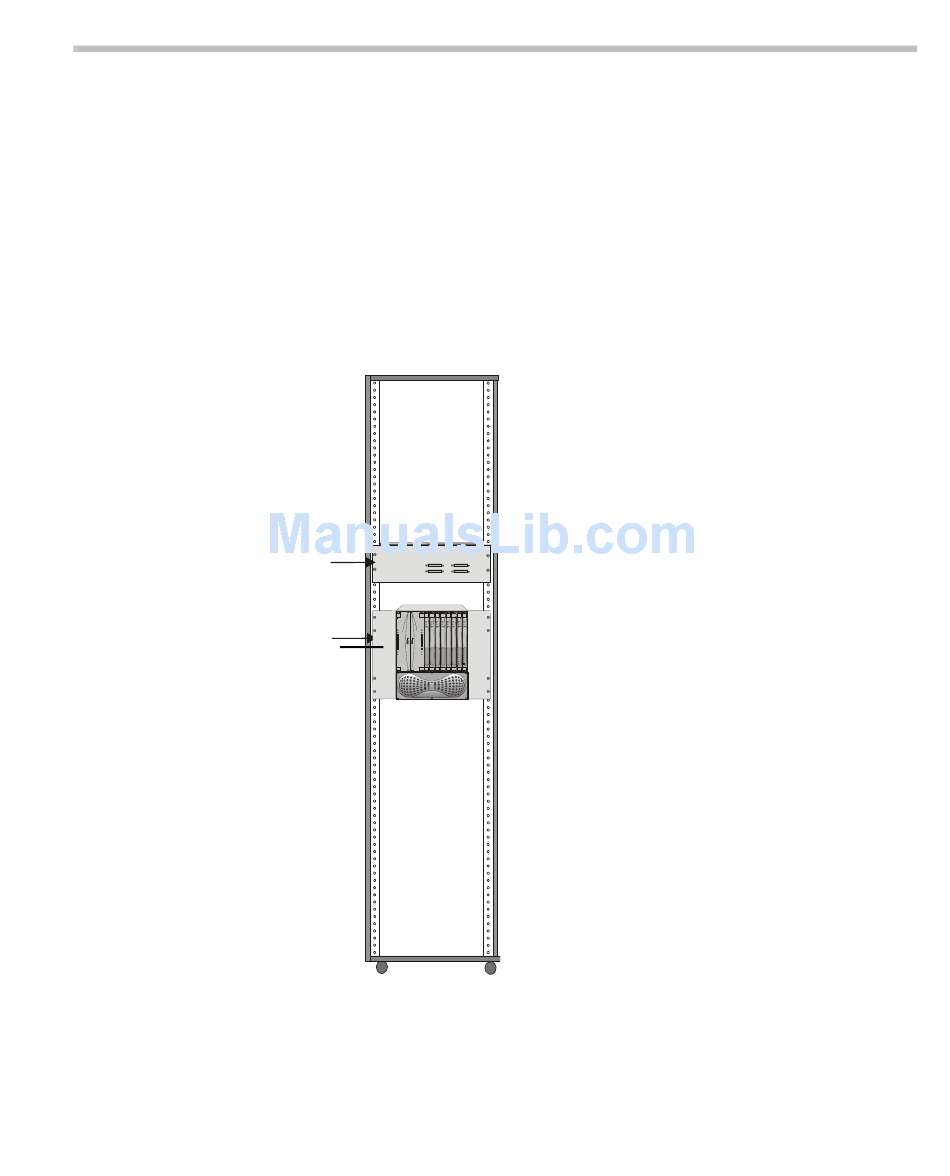

Figure 2-17: MPI Box mounting option
MGC+ Hardware and Installation Manual
Line 1
Line 2
Line 3
Line 4
Line 5
Line 6
Line 1 Line 7
Line 2 Line 8
