Figure 107. Server Board Usb 2.0 Header; Figure 108. Installing The 8 X 2.5" Drive Bay Module(S) - Intel R2000WF series Service Manual

Intel ® Server System R2000WF Product Family System Integration and Service Guide
a) Locate and remove the Left (with USB port) and Right (with Control Panel) storage rack handle
assemblies from Intel Accessory Kit A2UHANDLKIT.
b) Lay each rack handle assembly near the left and right chassis corners, then route the ribbon cable
from each along the inside of the chassis side wall towards the back of the drive bay.
c) Attach the left and right rack handle assemblies to the chassis using three screws each (8 in/lb
torque for each screw). Note that the ribbon cables should fit inside cutouts in the chassis sidewall.
d) Attach the Left USB flat cable to the black 10-pin server board connector labeled "FP_USB".
e) Attach the Right front panel ribbon cable to the high density 30-pin connector labeled "Storage_FP"
on the front right corner of the server board.
f) Ensure that the ribbon cables are routed within the cable channel inside each chassis sidewall, then
secure them in place using the included adhesive tape strips.
Note: Failing to secure each ribbon cable to the chassis sidewall may cause cable damage
9. Install the 8 x 2.5" Drive Bay Module(s)

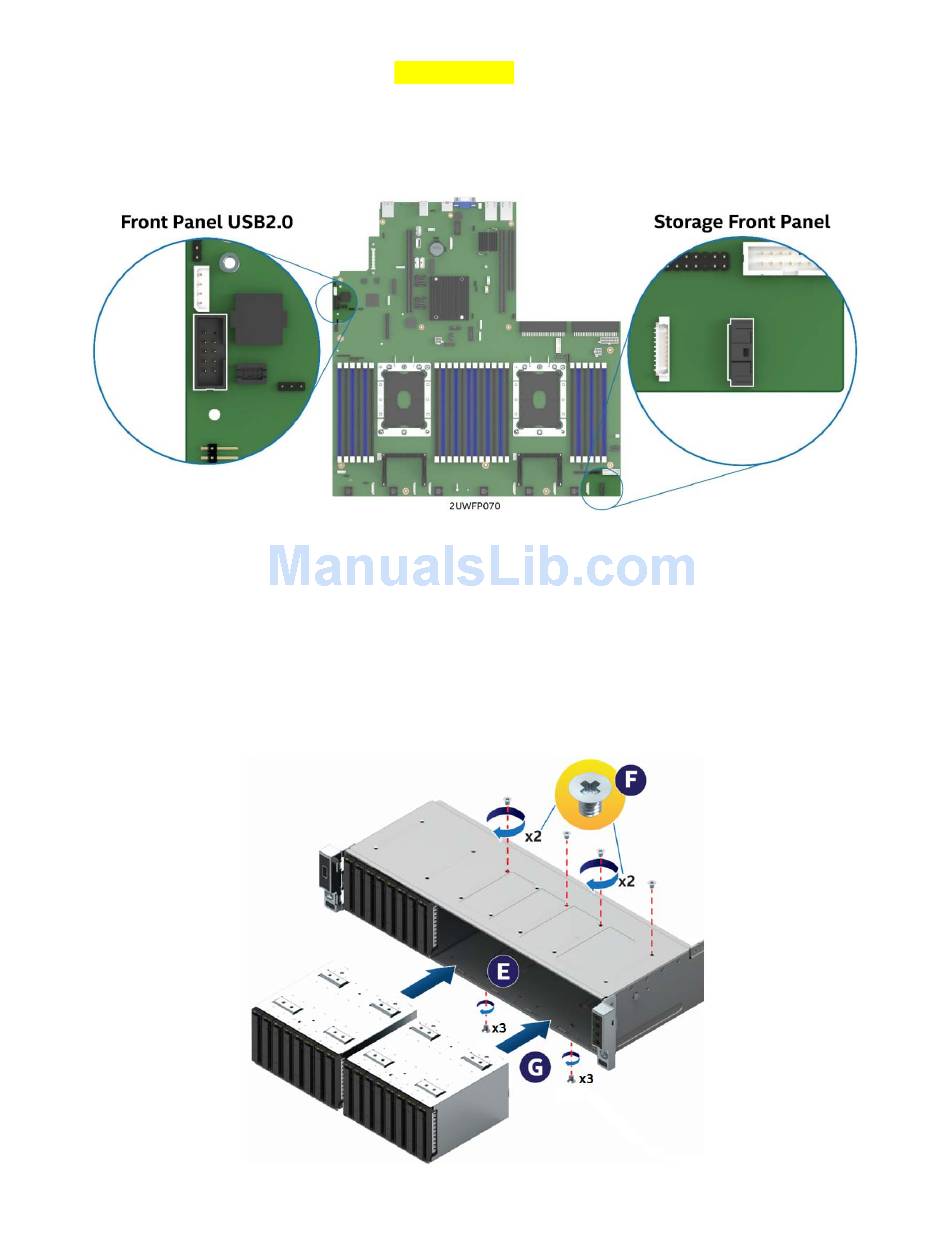

Figure 107. Server Board USB 2.0 Header

Figure 108. Installing the 8 x 2.5" Drive Bay Module(s)
