Intel ® Server System R2000WF Product Family System Integration and Service Guide
To remove the system fan module:
1. Lift the latches located on each end of the fan module until each latch is fully disengaged from the latch
receivers on the chassis side wall. (see Letter 'A')
2. Grasp each end of the fan module and pull straight up (see Letter 'B')
3. Carefully place the fan module face down onto a flat surface. Do NOT rest the fan module on the fan
connectors located on the bottom side of the fan module, doing so may damage the connectors.
2.4.2

System Fan Module Installation

To install the system fan module:
1. Ensure that all cables are clear of the fan module keep out area on the base of the chassis.
2. Ensure the latches on both sides of the fan module are fully rotated up.
3. Position the fan module over the chassis so that the latches are oriented toward the front of the chassis
(see letter 'A').
4. Align the two guide pins on each side of the fan module with the latch receivers located on each chassis
sidewall (see letter 'B').
5. Carefully lower the fan module into the latch receivers.
6. Push down on both ends of the fan module until fully seated.
7. Rotate each latch down to lock the fan module in place.

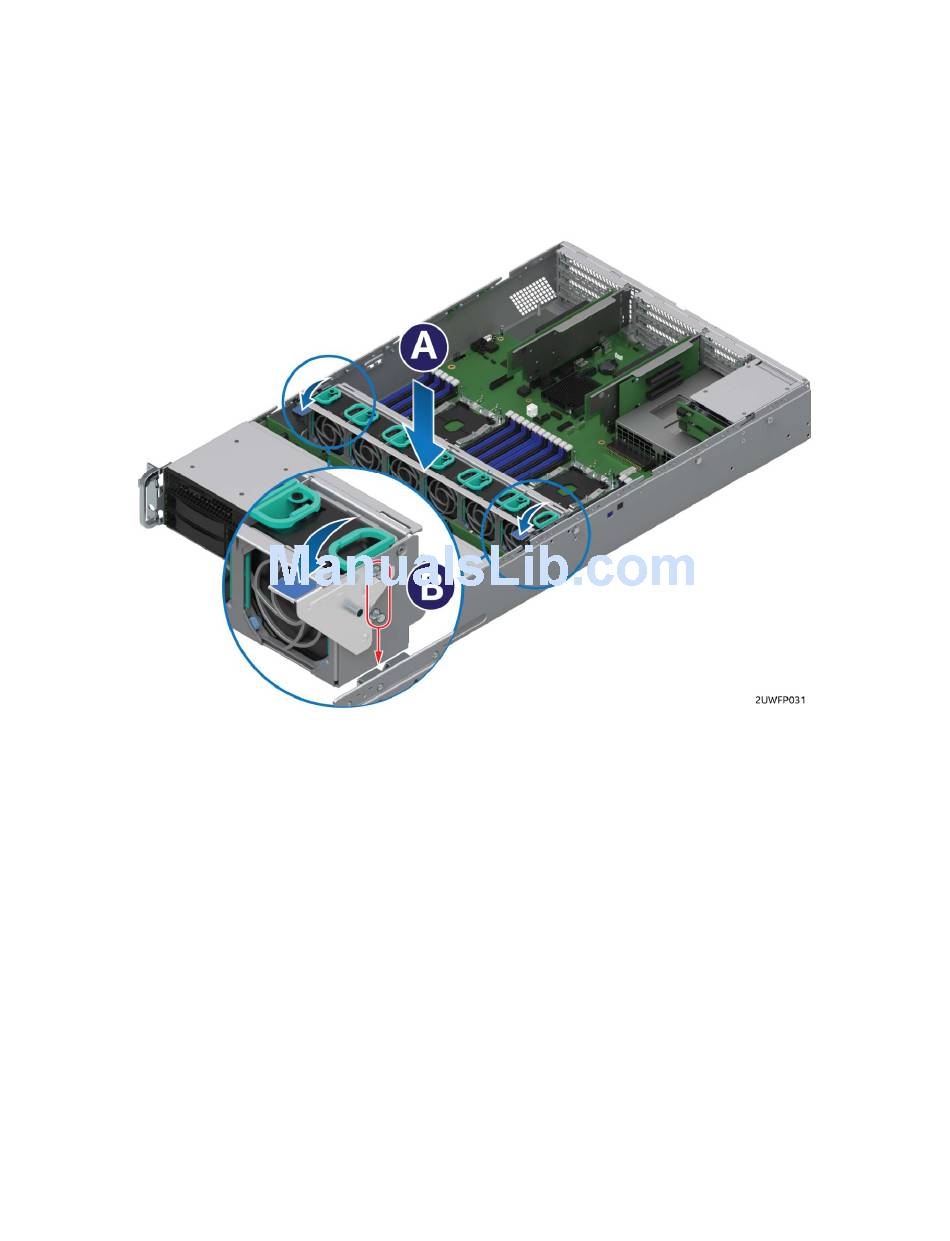

Figure 29. System Fan Module Installation

37
