Field
DiTi Type
Source Rack
First DiTi Position
Destination Rack
Put back DiTi on lower position
Waste Rack
Operator Name
m1000™ Operating Manual Addendum, 392813, en, V1.1

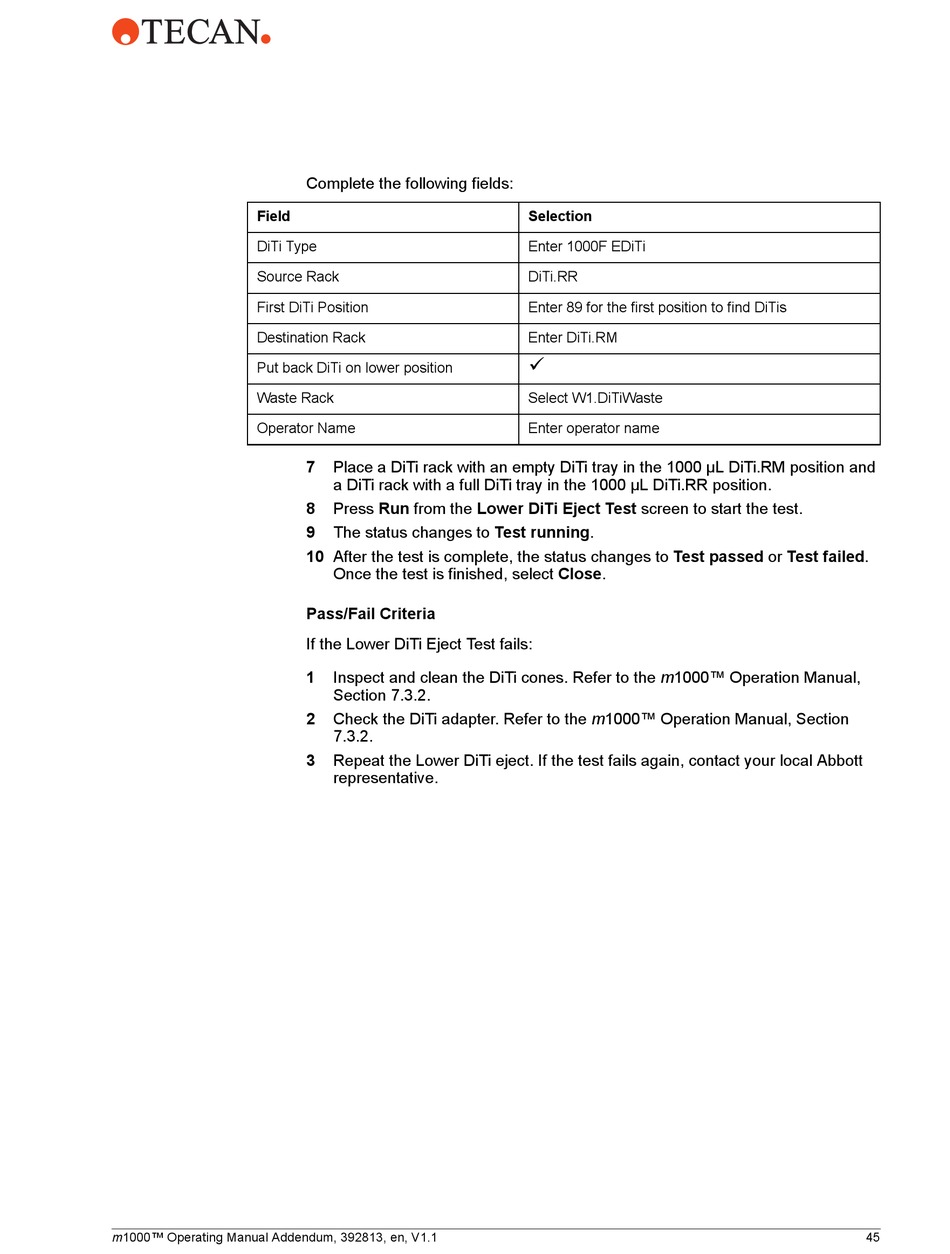

Complete the following fields:
7 Place a DiTi rack with an empty DiTi tray in the 1000 µL DiTi.RM position and
a DiTi rack with a full DiTi tray in the 1000 µL DiTi.RR position.
8 Press Run from the Lower DiTi Eject Test screen to start the test.
9 The status changes to Test running.
10 After the test is complete, the status changes to Test passed or Test failed.
Once the test is finished, select Close.
Pass/Fail Criteria
If the Lower DiTi Eject Test fails:
1 Inspect and clean the DiTi cones. Refer to the m1000™ Operation Manual,
Section 7.3.2.
2 Check the DiTi adapter. Refer to the m1000™ Operation Manual, Section
7.3.2.
3 Repeat the Lower DiTi eject. If the test fails again, contact your local Abbott
representative.
Selection
Enter 1000F EDiTi
DiTi.RR
Enter 89 for the first position to find DiTis
Enter DiTi.RM
Select W1.DiTiWaste
Enter operator name
