3 Touch the workstation before touching DiTi cones to discharge static electricity
from your body.

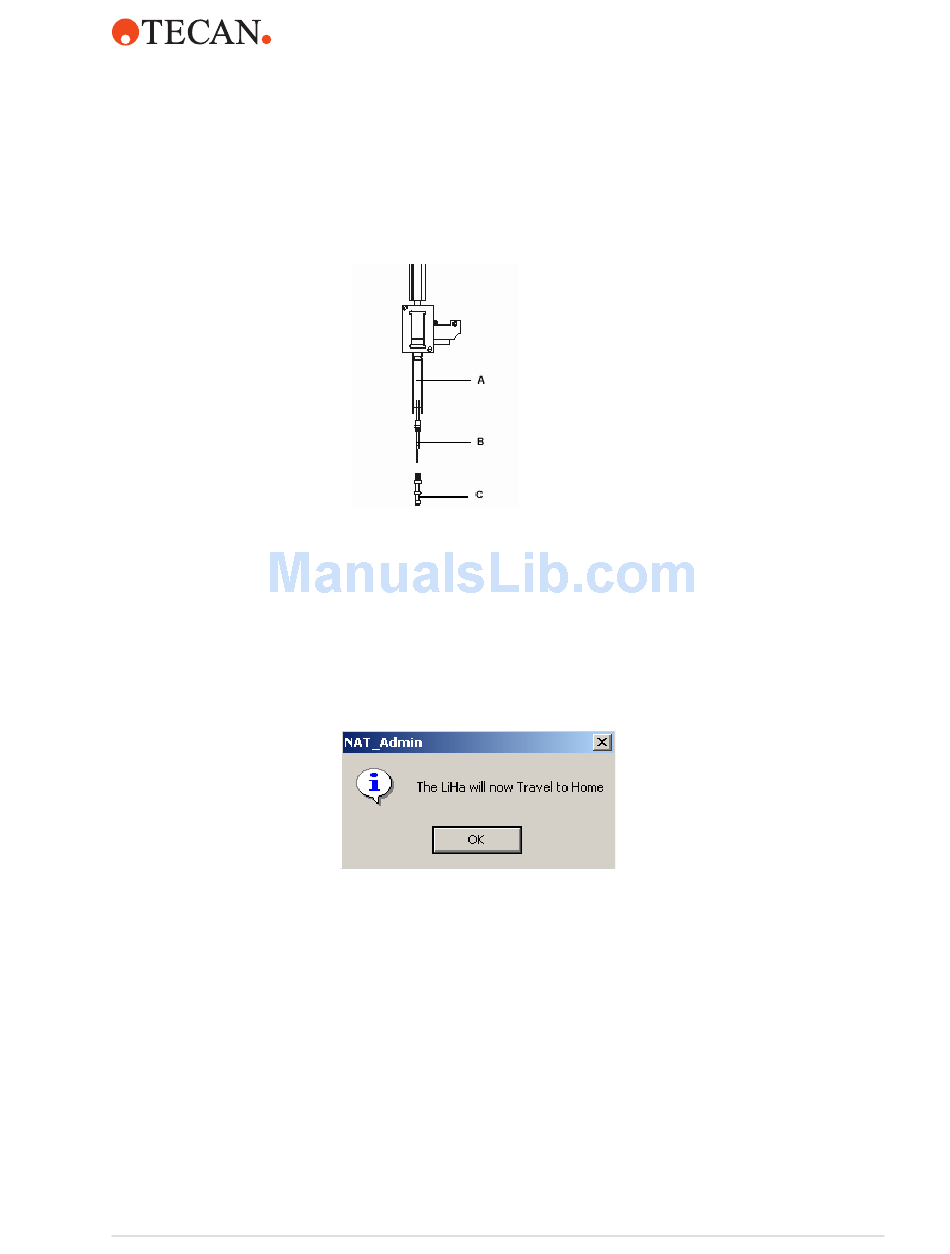

4 Add the reference tip to DiTi #3.
– Using the DiTi cone wrench, turn the DiTi cone #3 clockwise to loosen and
remove.
– Remove the black tip ejector tube.
– Disconnect the tubing extension from the tubing.
– Unscrew the stainless steel adapter cylinder.
– Screw the reference tip on the tip adapter and tighten.
– Set aside the DiTi cone, tubing extension, and adapter cylinder.
5 Select <OK> once the reference tip is mounted.
6 Close Safety door.
7 The operator is prompted that the LiHa will move to its Home position. Select
<OK>.
8 Select a calibration point from the list box icon located under the Current
Rack field. The following 1 ml subsystem positions need to be calibrated with
the LiHa using the NAT software:
– 1 ml Heater Zone 1 Calibration Point
– 1 ml Heater Zone 2 Calibration Point
– 1 ml Mag Calibration Point
– 1 ml RT Calibration Point
– 1 ml Mag Rest Calibration Point
A. Tip ejector tube (black, grooved end up)
B. Tubing extension
C. DiTi cone
