Calibrate the
RoMa
18
Unscrew the reference tip from the tip adapter.
Replace the stainless steel adapter cylinder.
Connect the tubing extension to the tubing. Ensure the separator ring and
o-ring are on the tubing extension.
Add the black tip ejector tube with the grooved end up. Secure in place with
the DiTi cone.
Tighten with the DiTi cone wrench.

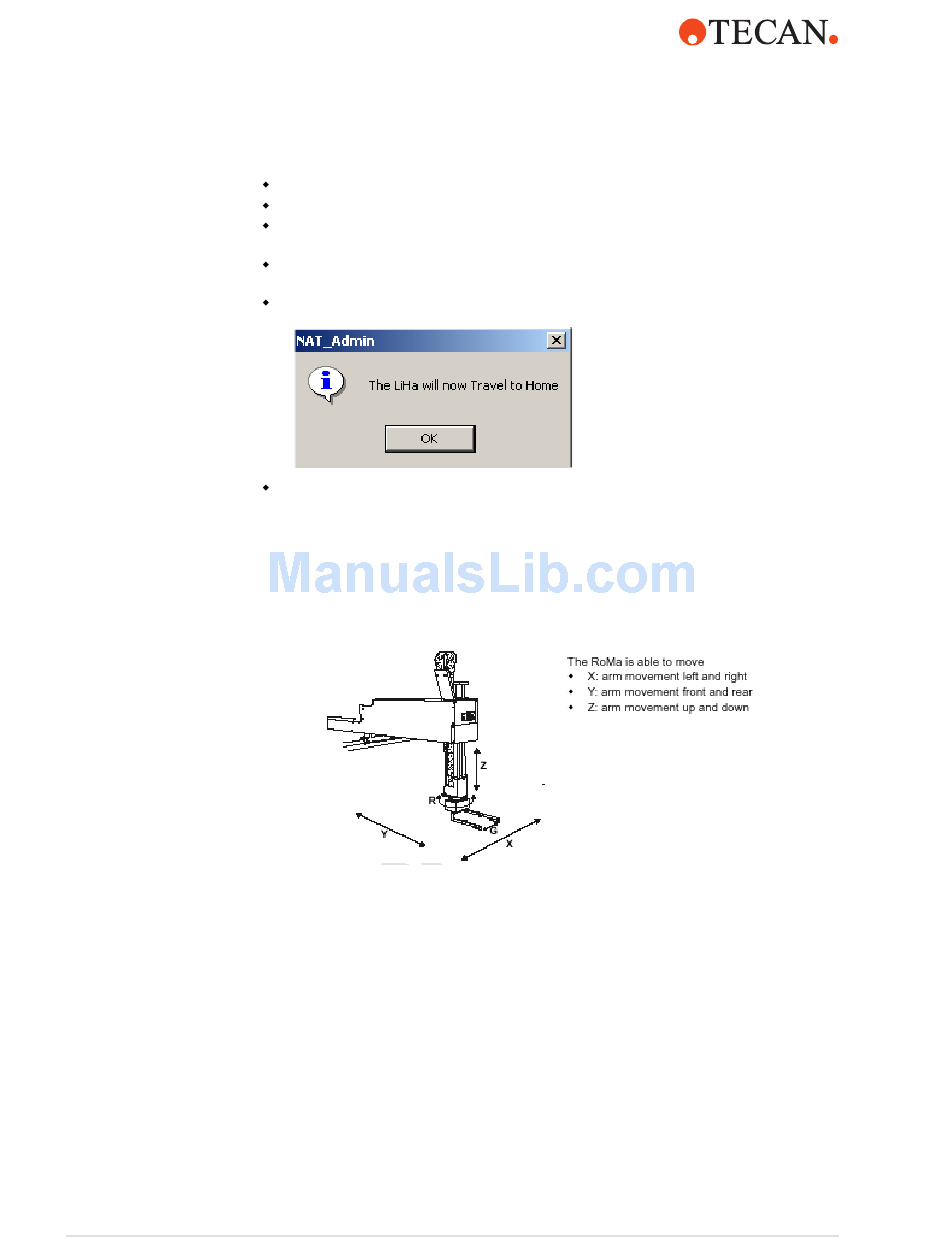

The operator is prompted that the LiHa will move to the Home position. Select
<OK>.
Calibrating the 1 ml subsystem for the RoMa.
1 During this step, the RoMa is calibrated to correctly pickup the 1 ml subsystem
carrier and move to different positions on the worktable. This calibration will
include X, Y, and Z direction.
2 Select a rack from the list box icon located under the Current Location field.
The following 1 ml subsystem positions need to be calibrated with the RoMa
using the NAT software:
– 1 ml Subsystem Loc Heater Zone 1
– 1 ml Subsystem Loc Heater Zone 2
– 1 ml Subsystem Loc Mag Low
– 1 ml Subsystem Loc RT
– 1 ml Subsystem Loc Rest
Note: 1 ml Subsystem Loc Mag Med and 1 ml Subsystem Loc Mag High will be
automatically calibrated. No calibration is necessary.
