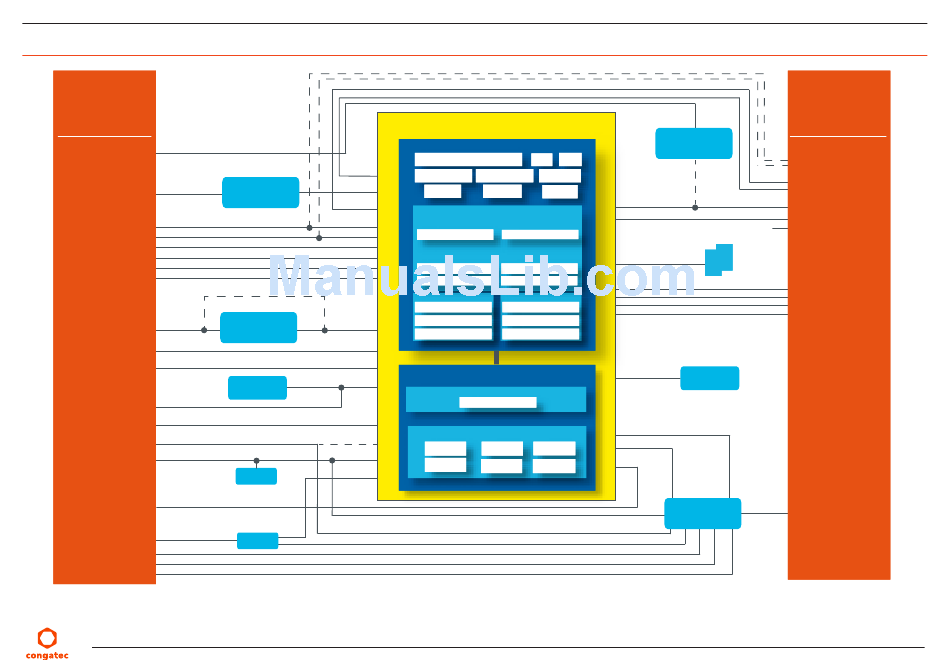

Block Diagram

COM Express
Type 6
A-B Connector
VGA
Ethernet
PCIe Port 5
PCIe Port 4
PCIe Port 3
PCIe Port 2
PCIe Port 1
PCIe Port 0
LVDS
LVDS/eDP
USB Port 0 - 7
HDA I/F
SPI
SATA Port 0 - 2
SER0/1
LPC Bus
SM Bus
GPIOs/SDIO
I2C Bus
LID#/SLEEP#
FAN control
Copyright © 2017 congatec AG
Intel
PCIe #11
PCIe #10
Ethernet 10/100/1000
Intel i219LM
PCIe #9
PCIe #6
PCIe #5
PCIe #4
PCIe #3
PCIe #2
PCIe #1
eDP (assembly option)
*
1
eDP to LVDS eDP
Bridge
USB 2.0
SPI
SPI Flash
0
SATA 6G
UART0/1
LPC
SDIO
TPM
GPIOs
Mux
ULT SOC (CPU + PCH)
®
7 th Generation Intel ® Core ™ Processor
Turbo Boost 2.0 Technology TXT VT
HT Technology AES-NI
64 Architecture
AVX2 SSE4.2 TSX
Integrated Intel HD Graphics
Digital Display Interfaces
DisplayPort 1.2 HDMI 2.0 (3D, 4k)
Hardware Graphics Accelerators
3D Vector Graphics
2D DXVA2
Video Codecs APIs
MPEG-2 OpenCL 2.1
HEVC/H.265 OpenGL 4.4
VC1/WMV9 DirectX 12
Low Power Interconnect
Intel 100 Series PCH-LP
®
High Definition Audio
ASRC
I/O Interfaces
PCIe LPC Bus GPIOs
SATA
USB 2.0 USB 3.0
Note:
* Not supported by default (assembly option)
1
TCKLm10
COM Express
Optional DP to VGA
* 1
PEG x2
* 1
*
1
PCIe Port 6
PCIe Port 7
DP/HDMI Port C
DP/HDMI Port B
X
DP/HDMI Port D
2x SO-DIMM (X1/X2)
Dual Channel DDR4
USB 3.0 Port 0
USB 3.0 Port 1
USB 3.0 Port 2
USB 3.0 Port 3
eMMC
eMMC Flash * 1
MGMNT
PECI
SM Bus
congatec System
(TX BC)
Management
congatec custom
Controller
Type 6
C-D Connector
