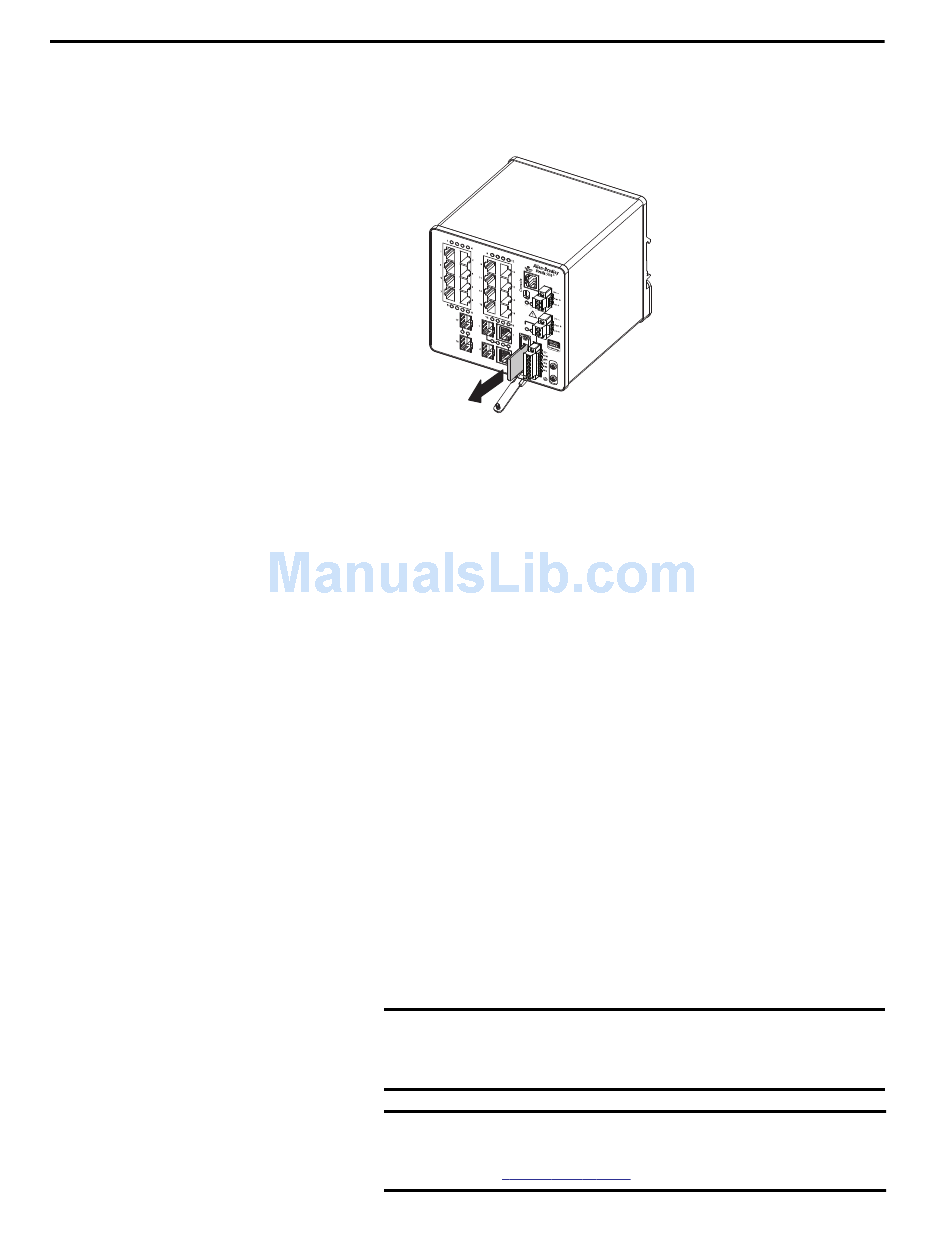

To remove the card, push it in and let it pop out via the spring-loaded
mechanism. Grasp the card top and pull it out. Place it in an antistatic
bag to protect it from static discharge.
4. Close the guard door and fasten the captive screw by using a screwdriver
to keep the door in place.
Before installing the switch in its final location, power on the switch, and verify
that the switch powers up.
The time that is required for the switch to start up is directly related to your
switch configuration. Start time is negatively affected by such things as the
following:
• Spanning Tree Learning mode
• Number of files or images in onboard memory
To test the switch, follow these steps.
1. Apply power to the switch.
If the switch is directly connected to a DC power source, locate the
circuit breaker on the panel board that services the DC circuit, and
switch the circuit breaker to the ON position.
2. Verify the start-up sequence.
When you power on the switch, it begins a start-up routine. The Setup
status indicator blinks green as the IOS software image loads. If the
routine fails, the Setup status indicator turns red.
IMPORTANT Start-up failures are usually fatal to the switch. Contact your
IMPORTANT You can disable Boot Fast and run the Power-on self-test (POST) by
Rockwell Automation Publication 1783-UM007G-EN-P - February 2017
Al ar
IN 1 m
IN 2
O UT
32272-M
Rockwell Automation representative immediately if your switch
does not complete the start sequence successfully.
using the CLI. For more information, see the documentation at
http://www.Cisco.com.
