Chapter 7 Configure Switch Features
188
Apply an ACL
You can apply inbound and outbound ACLs to ports:
• Inbound ACLs can be applied to any port.
• Outbound ACLs can be applied to only routed ports or ports assigned
to an Access VLAN. You can configure these port settings in the
Administrative Mode field on the Edit Physical Port window
For more information about configuring port settings, see
Configuration on page

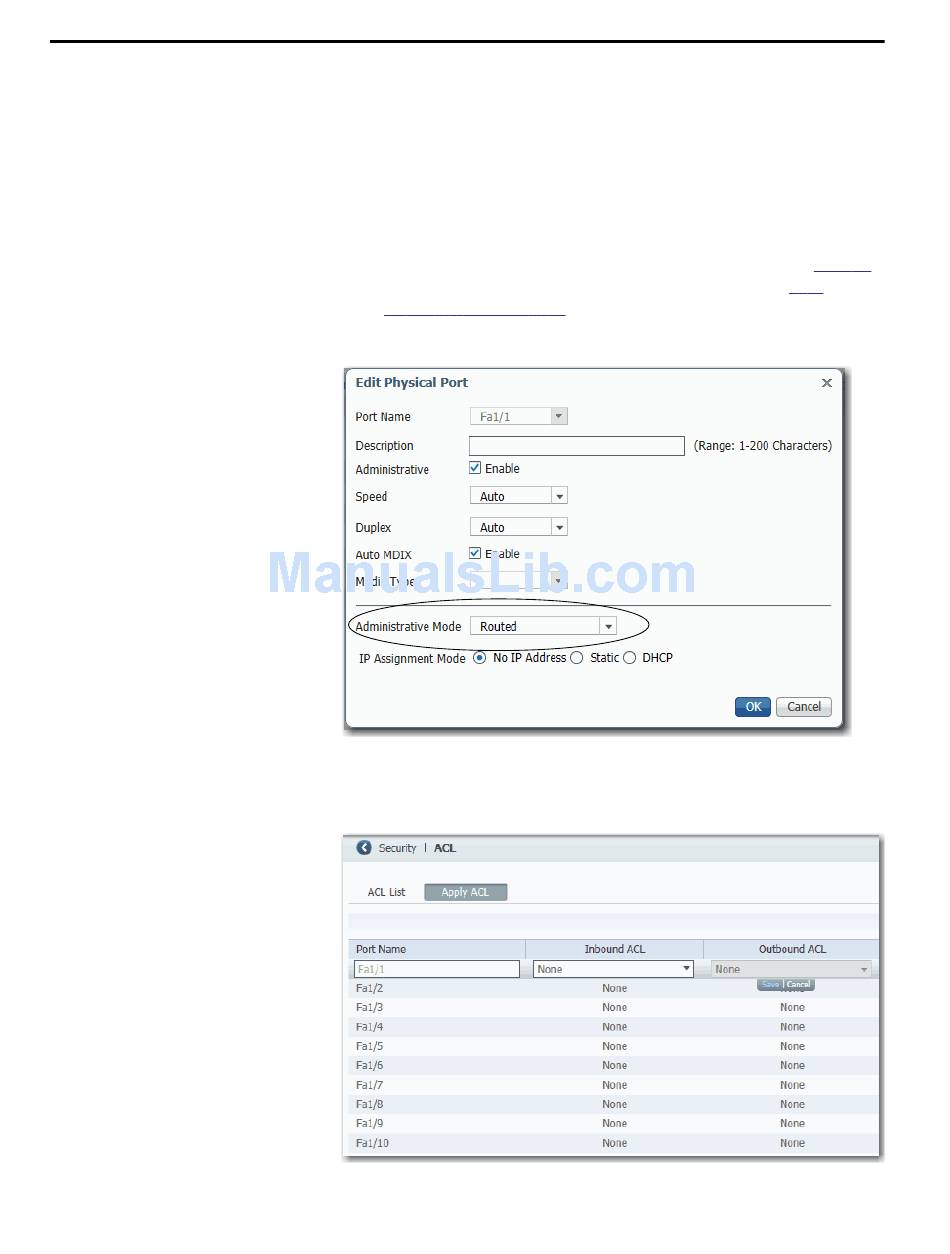

Figure 2 - Edit Physical Port Window
To apply an ACL to a port, follow these steps.
1. From the ACL window, click the Apply ACL tab.
Rockwell Automation Publication 1783-UM007G-EN-P - February 2017
59.
(Figure 2).
Port
