The FIT parameter tab showing the parameters for one of the four timers is shown in
Figure
4-3.
X-Ref Target - Figure 4-3
•
Use FIT - Enable the Fixed Interval Timer.
•
Number of Clocks Between Strobes - The number of clock cycles between each
strobe.
•
Generate Interrupt - Generate an interrupt for each Fixed Interval Timer strobe.
MicroBlaze Micro Controller System v1.3
PG048 December 18, 2012
Chapter 4: Customizing and Generating the Core

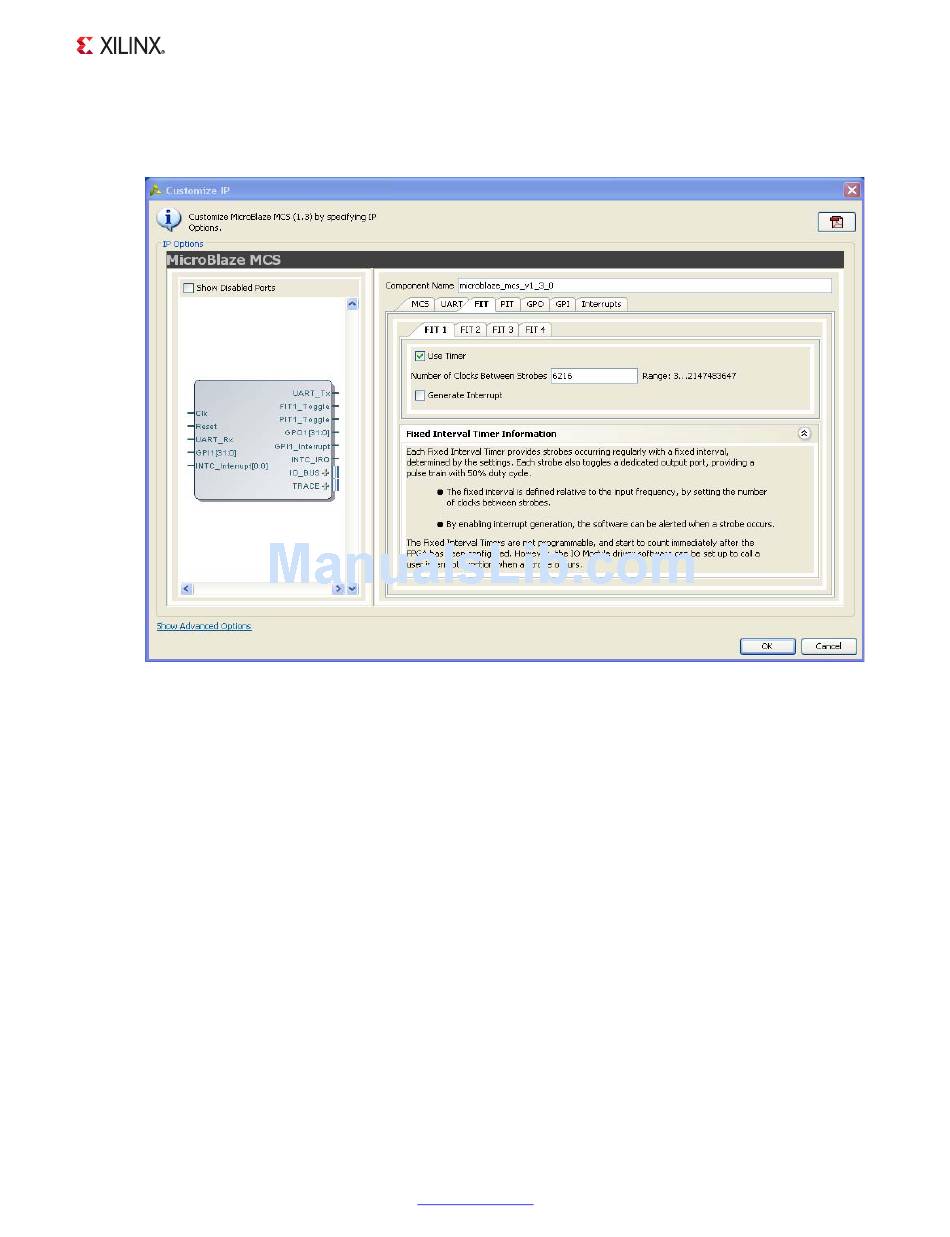

Figure 4-3: FIT Parameter Tab
www.xilinx.com
17
