The GPI parameter tab showing the parameters for one of the four General Purpose Input
ports is shown in
X-Ref Target - Figure 4-6
• Use GPI - Enable the General Purpose Input port.
• Number of Bits - Set the number of bits of the General Purpose Input port.
• Generate Interrupt - Generate an interrupt when a General Purpose Input changes.
MicroBlaze Micro Controller System v1.3
PG048 December 18, 2012
Figure 4-6.

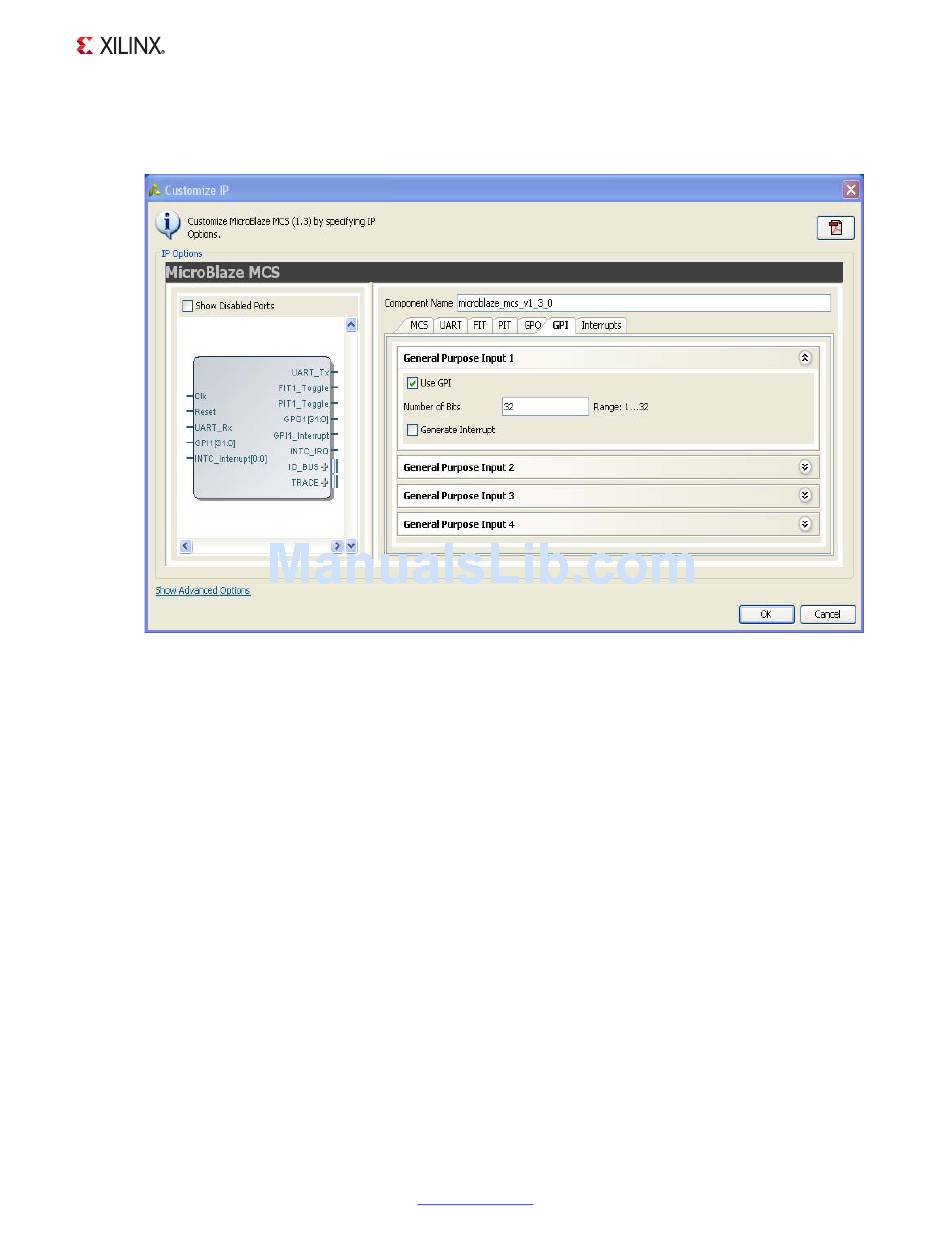

Figure 4-6: GPI Parameter Tab
