Customizing and Generating the Core
This chapter includes information on using Xilinx tools to customize and generate the core
using the Vivado™ Design Suite.

GUI

MicroBlaze™ MCS parameters are divided in seven tabs: MCS, UART, FIT, PIT, GPO, GPI and
Interrupts. The MCS parameter tab is shown in
X-Ref Target - Figure 4-1
MicroBlaze Micro Controller System v1.3
PG048 December 18, 2012
Figure

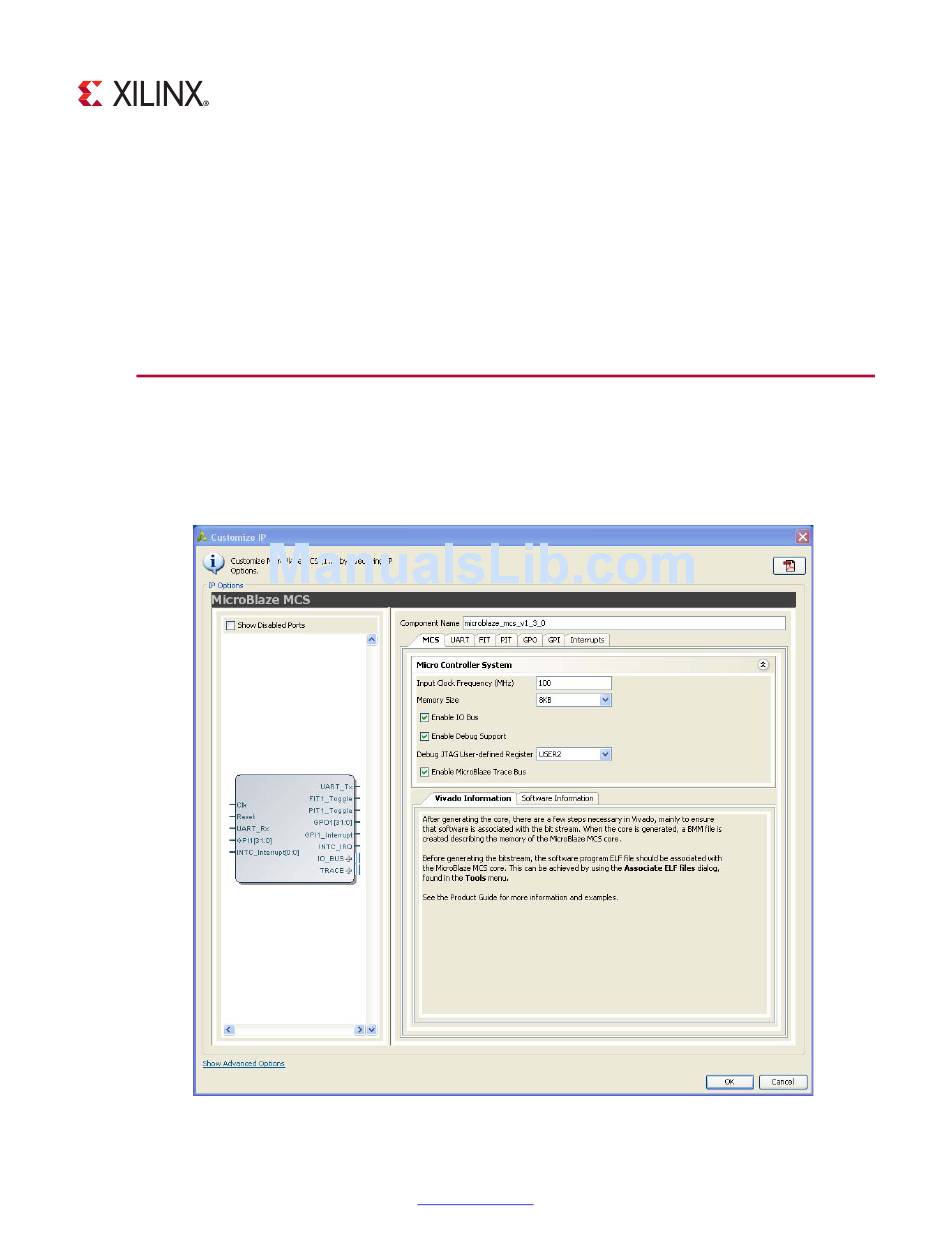

Figure 4-1: MCS Parameter Tab
www.xilinx.com
Chapter 4
4-1.
