Pressing down gently on the DeltaSphere will cause the mount to lock in a closed position as
shown in Figure 6. After it has snapped shut, apply firm pressure to the lever to ensure a tight
fit.
The DeltaSphere-3000 can be removed by unlocking the mount mechanism and lifting the
DeltaSphere.

2.2.2 Tribrach Installation

The DeltaSphere-3000 can be mounted directly onto a surveyor's tripod, or onto a Tribrach
adaptor, using the 5/8-11 mounting hole on the base plate.
Once the Tribrach adaptor is mounted on the DeltaSphere-3000, it can be mounted on a standard
Tribrach.
DeltaSphere-3000 3D Scene Digitizer

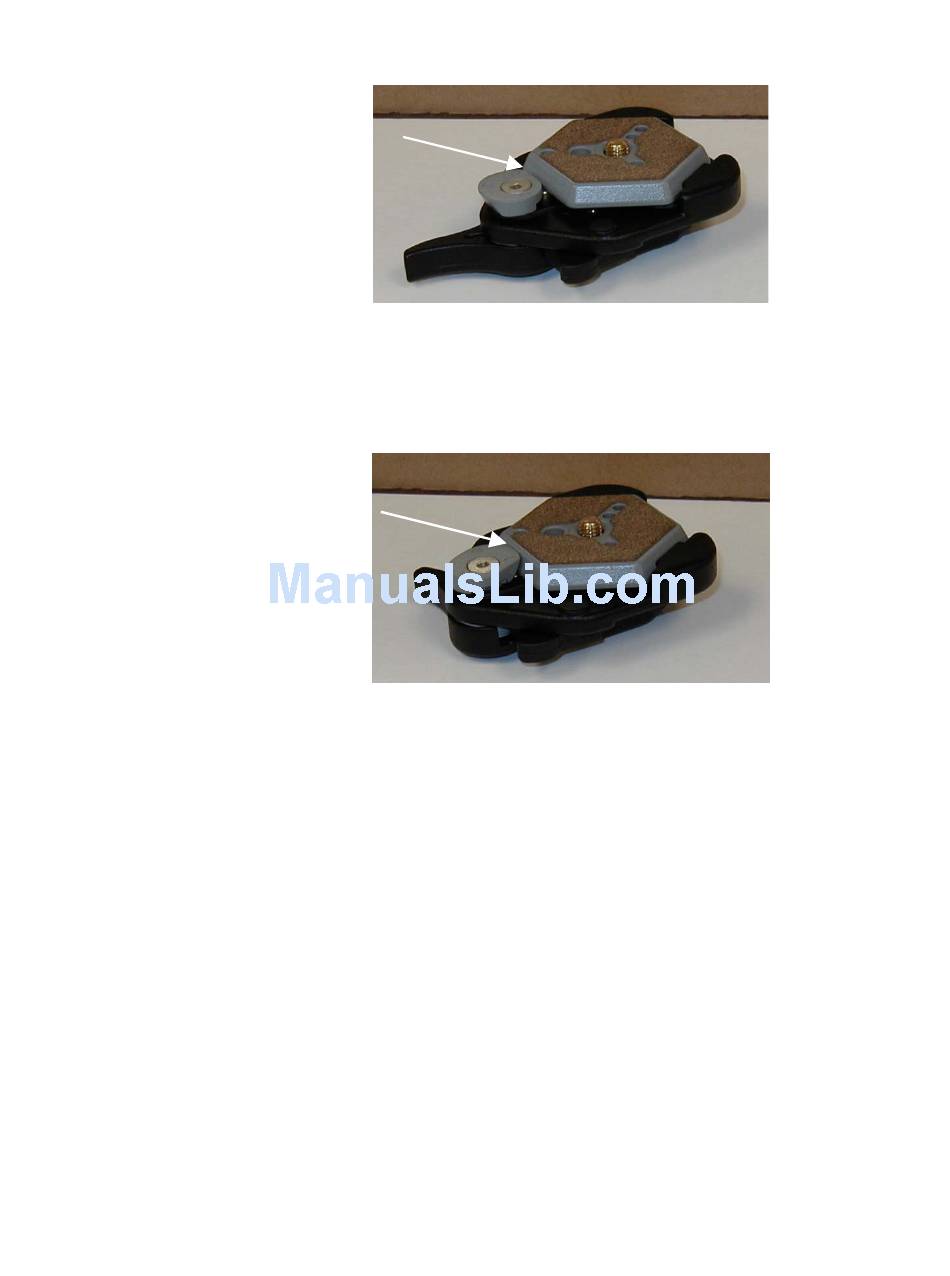

Figure 5 Tripod quick mount unlocked
Closed
Figure 6 Tripod quick mount locked
NOTE: Be careful to fully support the DeltaSphere-3000 at all times
until you are sure it is locked into place.
Note: The 5/8-11 hole is located directly under the 'origin' of the laser scanner
for alignment with surveying instruments.
Open
8 9/23/05
