3rdTech DeltaSphere-3000 User Manual page 12

4. Using the lever of the double ball joint, adjust the

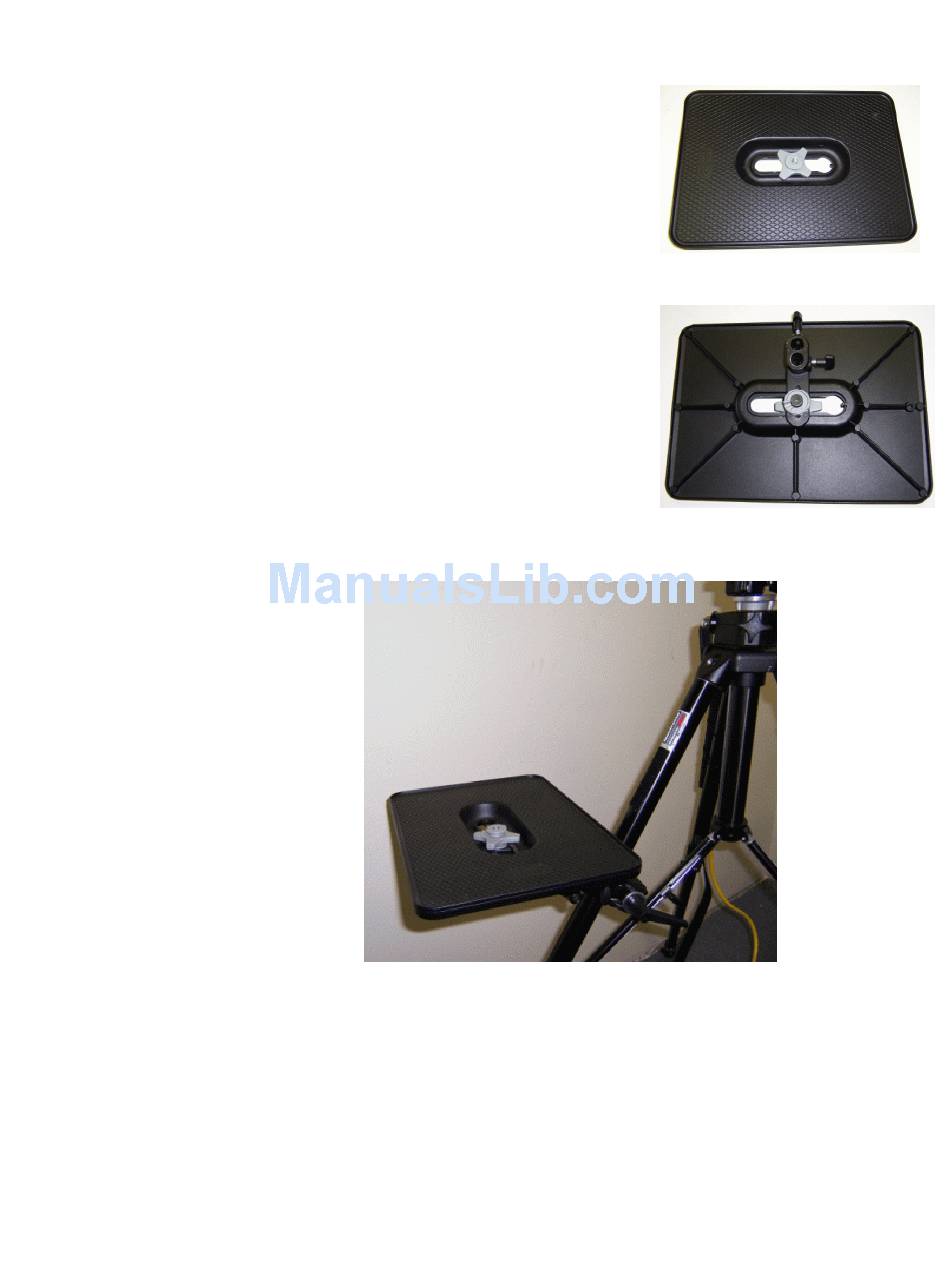

5. Figure 11 shows the last component, the laptop stand,
6. Figure 12 shows how the camera platform attaches to the
In addition, optional wheels for the tripod make it easier to move to multiple positions within a
room or other space. There are many available. One typical set would be
Contact 3rdTech for additional information.
DeltaSphere-3000 3D Scene Digitizer
components so that the camera platform is roughly
horizontal and perpendicular to the tripod, as shown.
Tighten securely.
looking at its top on which you will set your laptop. The
butterfly nut in the middle has two holes – one large and
one small. You will need the small hole facing down. If
necessary, slide the nut to the end with the larger hole
(right in the figure), remove it from the track, and turn it
over. Then fit it back into the track and slide it to the
middle as shown.
bottom of the laptop platform (without the tripod and
other components in the way). For the platform to be
stable, secure the camera platform so that it is
perpendicular to the long side of the laptop platform, as
shown, and tighten securely. When done there should be
very little wobble in the platform and it should easily and
securely support the laptop. The complete assembly is
shown in Figure 13.
Figure 13 Completed Laptop Assembly on Tripod
•
Bogen/Manfrotto #3156 Folding Auto Dolly
11
Figure 11 Laptop Platform
from Top
Figure 12 Bottom of Laptop
Platform with Camera Platform
9/23/05
