Attach the Camera Mount
The receiver part of the mount attaches to the back of the DeltaSphere-3000 as shown in Figure
24. If you ordered the color option with your DeltaSphere-3000, it will have been attached at the
factory. If not, lay the DeltaSphere down on its side (leg-side down). Place the two spacers in
the two spaces in the DeltaSphere as show in Figure 24. Line up the receiver with the spacers
and install the two large bolts and 1 small screw as shown. The receiver is designed to remain
permanently attached to the DeltaSphere during use, storage and shipping.

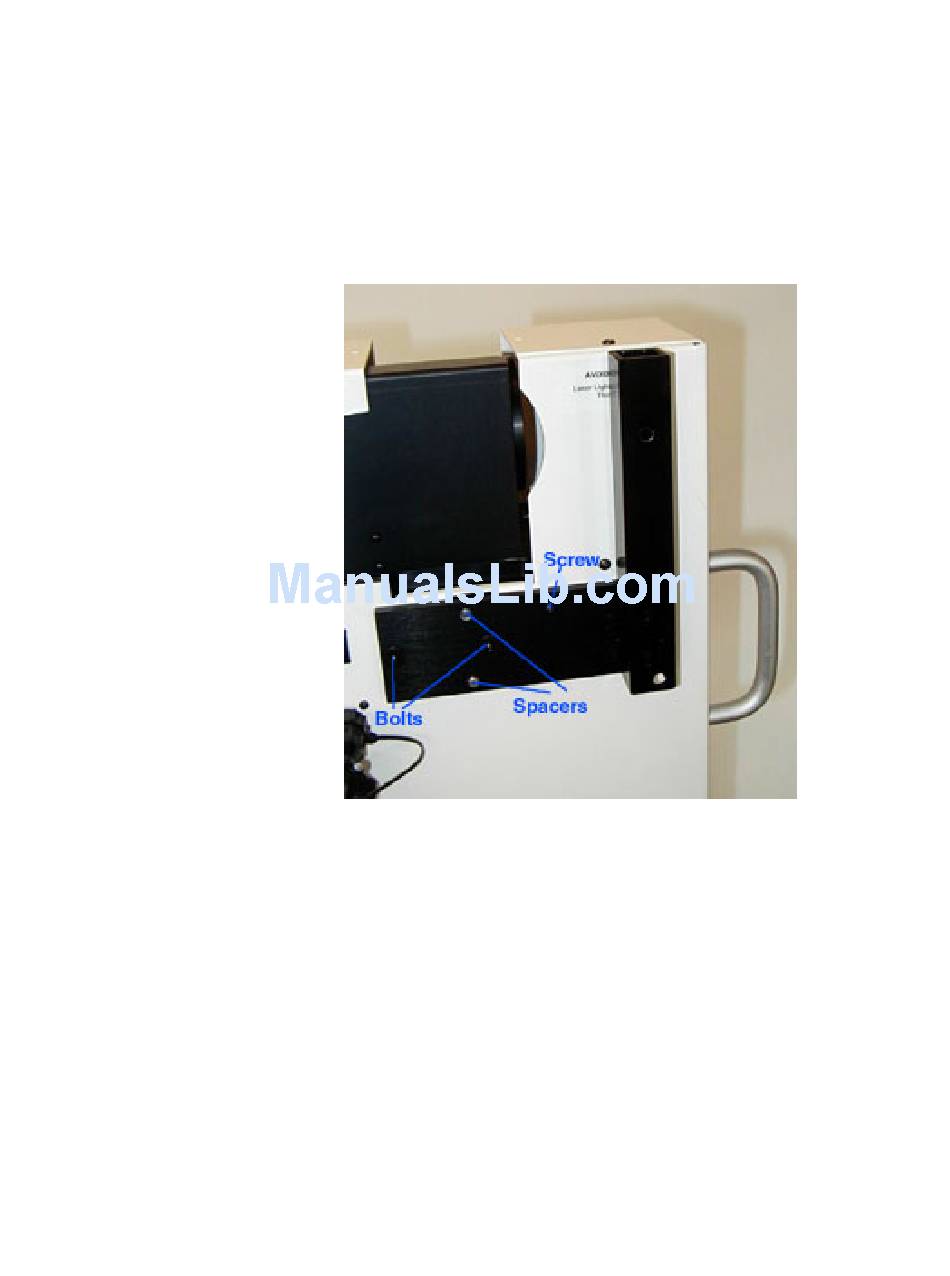

Figure 24 Receiver part of the camera mount
Attach the Camera Bracket to the Receiver
The camera bracket is designed to easily attach to the receiver for use, and to detach for storage
or shipping. To attach, remove the tee-thumbscrew from the back of the bracket. Slide the
bracket into the receiver with the three visible bolts towards the back of the DeltaSphere as
shown in Figure 25. Then insert the tee-thumbscrew through the top of the receiver and screw it
into the bracket as shown.
