2.2.3 Tripod Accessories

When controlling the DeltaSphere-3000 from a laptop, it is helpful to mount the laptop on the
tripod. (See Figure 7) This shortens the cables needed for both the Ethernet and 1394
connections, and also makes it easier to move the system to different positions.
The configuration in the image is comprised of the following off-the-shelf components.
These components are available from many photographic equipment suppliers, as well as from
3rdTech. In this section we will describe how to assemble the laptop stand.
1. Place the double ball joint in the super clamp as shown in Figure 8. To do this, loosen the
DeltaSphere-3000 3D Scene Digitizer

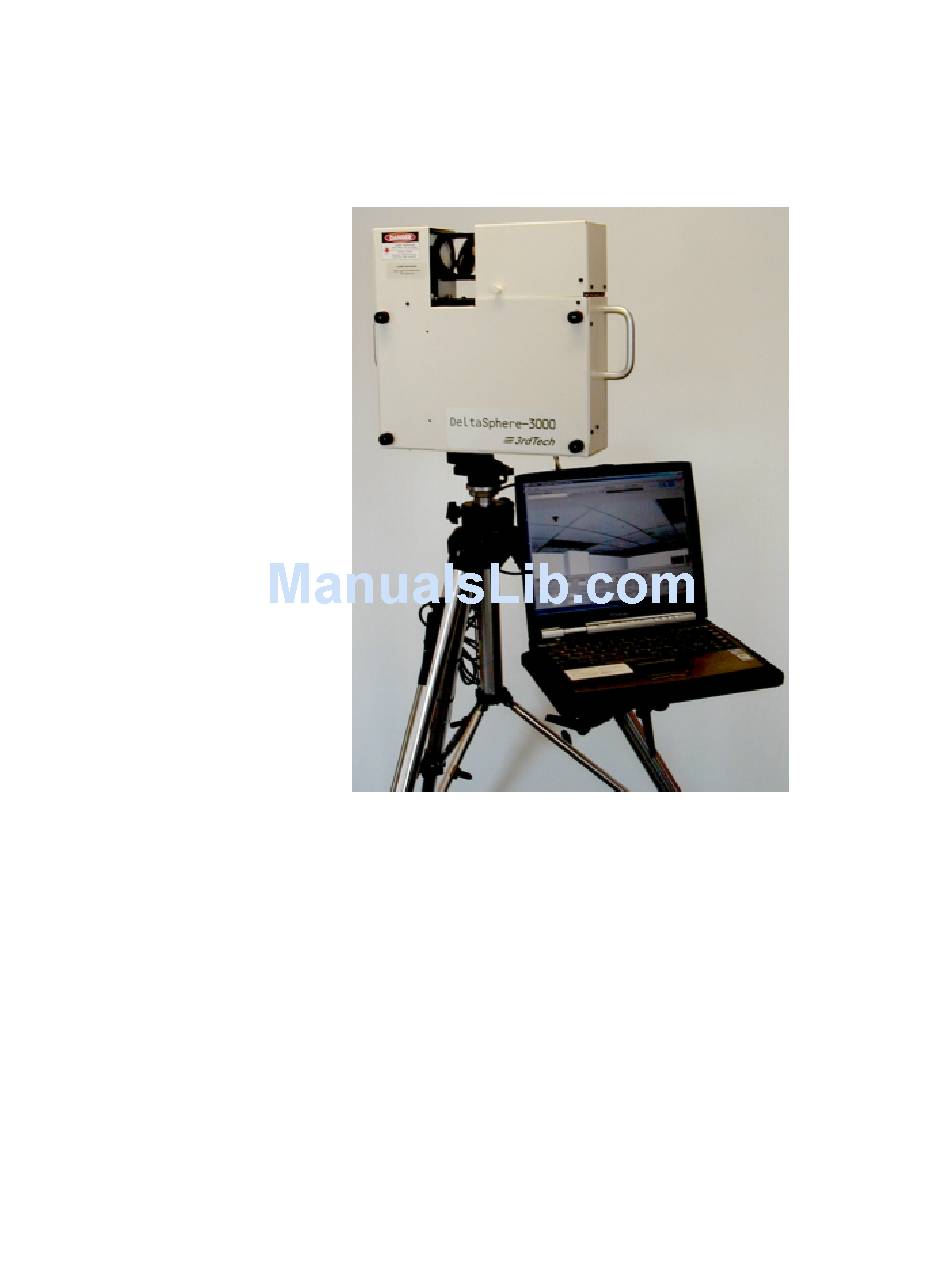

Figure 7 DeltaSphere-3000 with laptop
•
Bogen/Manfrotto #475B Professional Tripod Legs with geared column
•
Bogen/Manfrotto #3290 Monitor/Projector Platform
•
Bogen/Manfrotto #2900 Super Clamp with Standard Stud (attaches to tripod leg)
•
Bogen/Manfrotto #155 Double Ball Joint Head with #2933 Camera Platform (attaches
to Super Clamp and to the Monitor Platform)
thumbscrew on the ball joint and hold in the metal button release to insert the shaft of the
double ball joint. Tighten the thumb screw securely.
