2. Attach the camera platform to the other shaft of the double ball joint, as shown in Figure 9, by
3. Attach the Super Clamp to a tripod leg as shown in Figure 10 and tighten securely. Place it
DeltaSphere-3000 3D Scene Digitizer

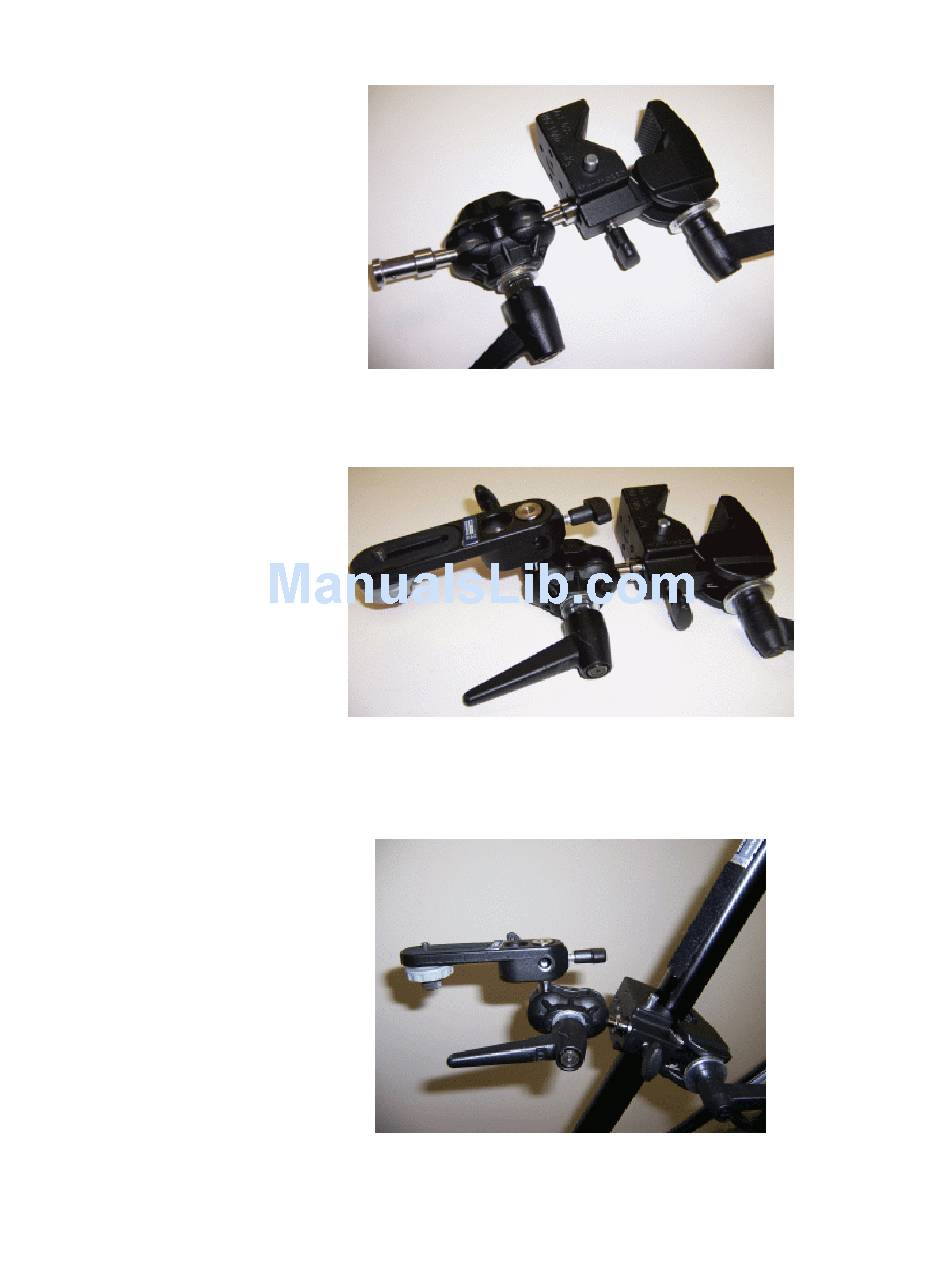

Figure 8 Double Ball Joint in Super Clamp
loosening the end thumbscrew, inserting the shaft, and tightening securely.
low enough on the leg so that when the laptop is on the platform and the screen is open, it will
not interfere with the movement of the DeltaSphere. (You can adjust this later.)
Figure 10 Super Clamp on Tripod Leg
Figure 9 Camera Platform Added
