6. Application Examples

6.1.1. Start/Stop
Terminal 18 = start/stop par. 5-10 [8]
Terminal 27 = No operation par. 5-12 [0]
inverse
Par. 5-10 Digital Input, Terminal 18
Digital Input, Terminal 27
Par. 5-12
6.1.2. Pulse Start/Stop
Terminal 18 = start/stop par. 5-10 [9]
Terminal 27= Stop par. 5-12 [6]
Par. 5-10 Digital Input, Terminal 18
Digital Input, Terminal 27
Par. 5-12
Start
No operation (Default coast
= Start (default)
coast inverse
= (default)
Latched start
Stop inverse
= Latched start
Stop inverse
=
®
MG.20.N3.02 - VLT is a registered Danfoss trademark

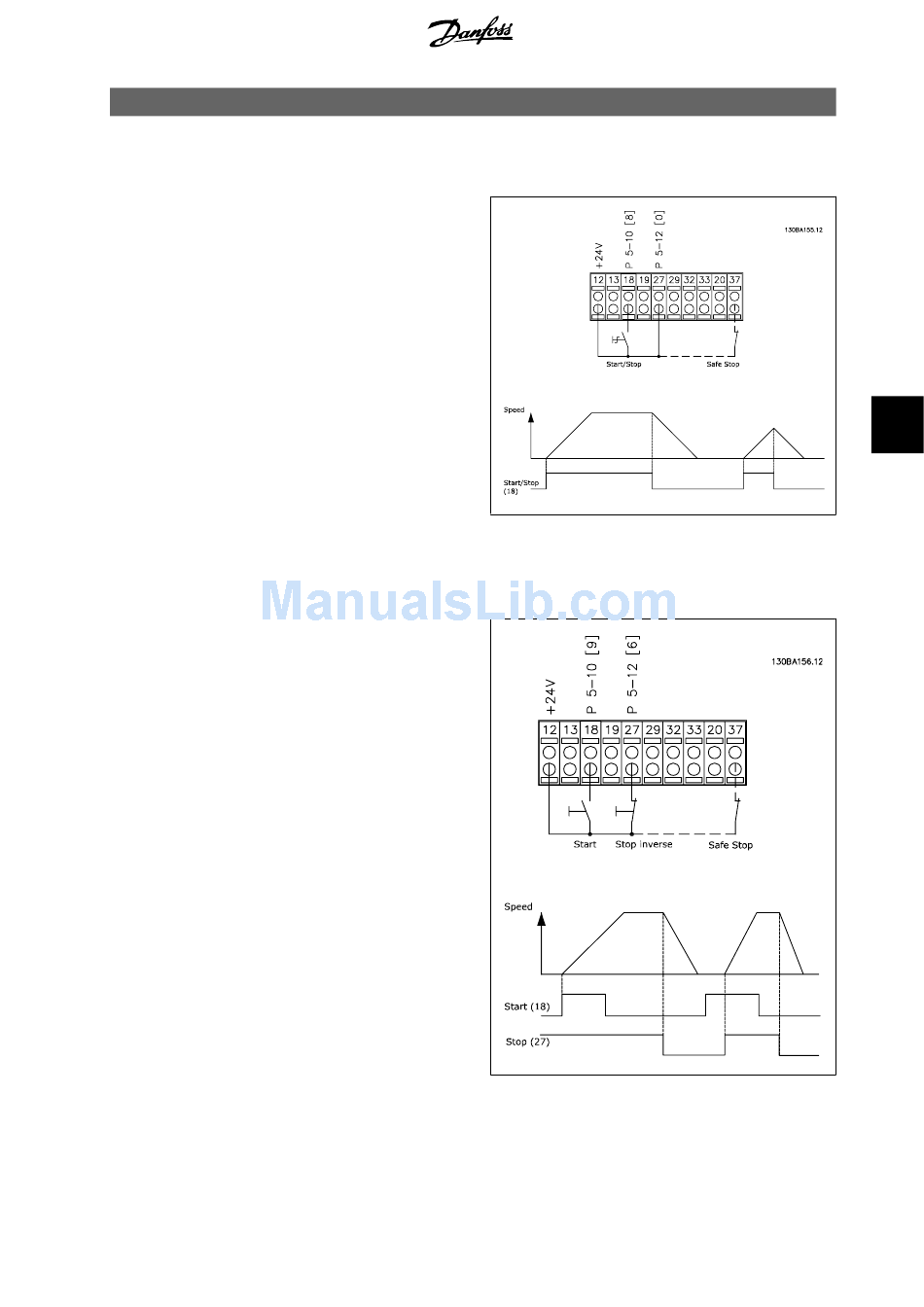

Illustration 6.1: Terminal 37: Available only with Safe Stop
Function!
Illustration 6.2: Terminal 37: Available only with Safe Stop
Function!
