3. VLT AQUA Selection
A enclosures
60 AVM - Pulse Width Modulation
3

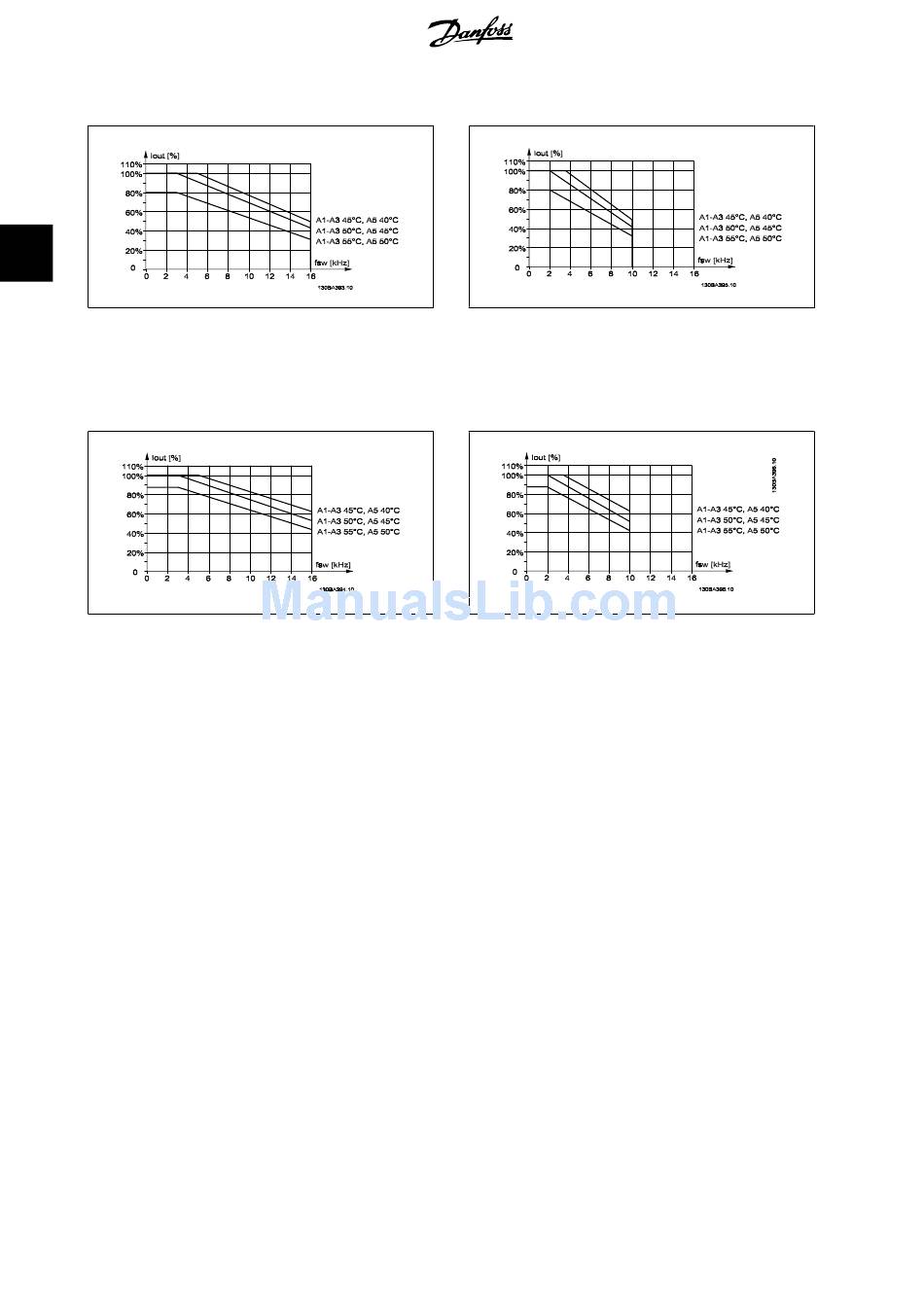

Illustration 3.1: Derating of I
closure A, using 60 AVM
In enclosure A, the length of the motor cable has a relatively high impact on the recommended derating. Therefore, the recommended derating for an
application with max. 10 m motor cable is also shown.
Illustration 3.3: Derating of I
closure A, using 60 AVM and maximum 10 m motor cable
58
for different T for en-
out AMB, MAX
for different T for en-
out AMB, MAX
MG.20.N3.02 - VLT
SFAVM - Stator Frequency Asyncron Vector Modulation
Illustration 3.2: Derating of I
closure A, using SFAVM
Illustration 3.4: Derating of I
closure A, using SFAVM and maximum 10 m motor cable
®
is a registered Danfoss trademark
®
VLT AQUA Drive Design Guide
for different T for en-
out AMB, MAX
for different T for en-
out AMB, MAX
