3. VLT AQUA Selection
60 AVM - Pulse Width Modulation, 525 - 600 V (except P315)
3

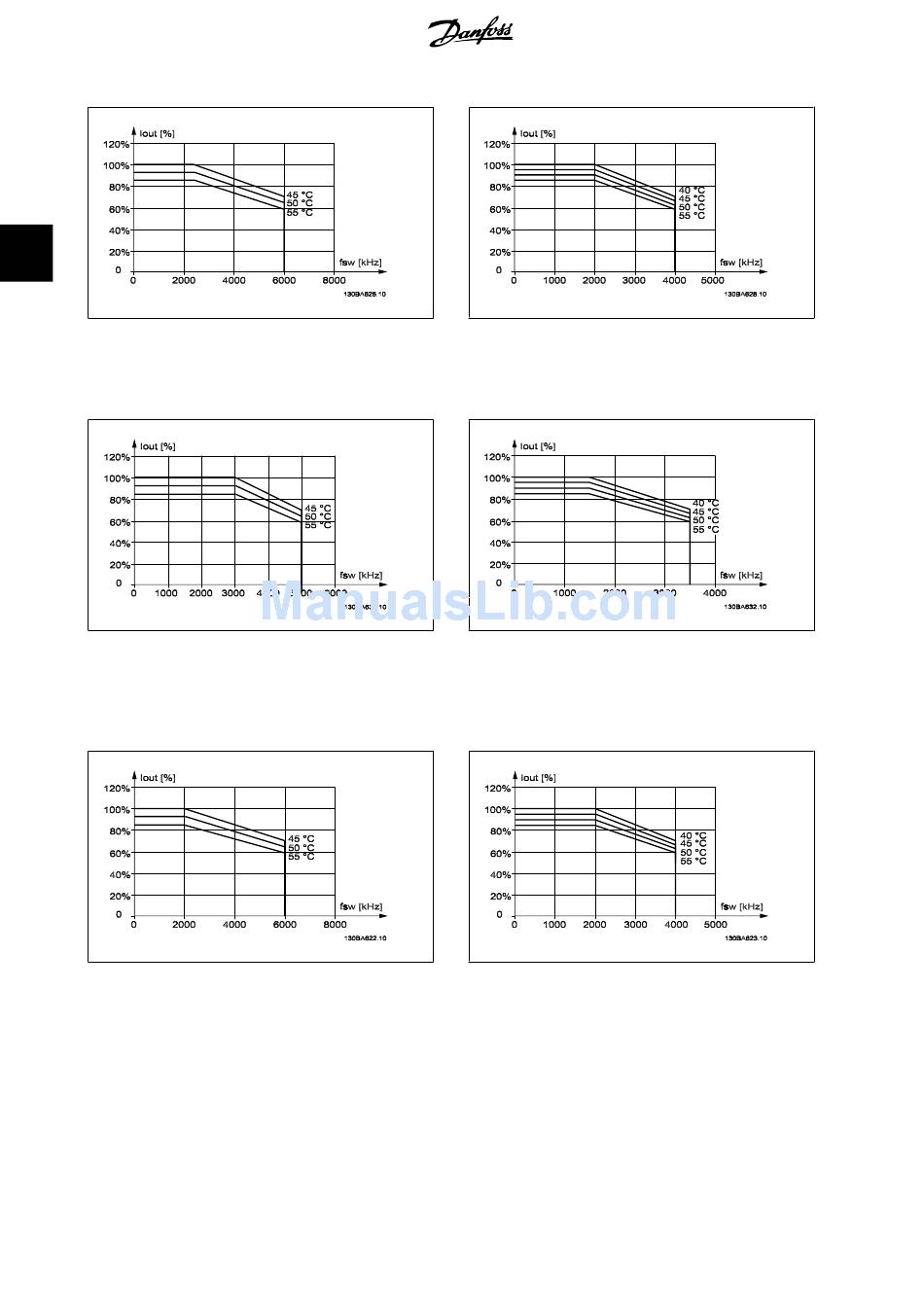

Illustration 3.11: Derating of I
closure D at 600 V, using 60 AVM in Normal torque mode
(110% over torque). Note:
60 AVM - Pulse Width Modulation, 525 - 600 V, P315
Illustration 3.13: Derating of I
closure D at 600 V, using 60 AVM in Normal torque mode
(110% over torque). Note: P315
E enclosures
60 AVM - Pulse Width Modulation, 380 - 480 V
Illustration 3.15: Derating of I
closure E at 480 V, using 60 AVM in Normal torque mode
(110% over torque)
60
for different T for en-
out AMB, MAX
not
valid for P315.
for different T for en-
out AMB, MAX
only
.
for different T for en-
out AMB, MAX
MG.20.N3.02 - VLT
SFAVM - Stator Frequency Asyncron Vector Modulation
Illustration 3.12: Derating of I
closure D at 600 V, using SFAVM in Normal torque mode
(110% over torque). Note:
SFAVM - Stator Frequency Asyncron Vector Modulation
Illustration 3.14: Derating of I
closure D at 600 V, using SFAVM in Normal torque mode
(110% over torque). Note: P315
SFAVM - Stator Frequency Asyncron Vector Modulation
Illustration 3.16: Derating of I
closure E at 480 V, using SFAVM in Normal torque mode (110%
over torque)
®
is a registered Danfoss trademark
®
