2.7.4. Example with varying flow over 1 year
The example below is calculated on the basis of pump characteristics ob-
tained from a pump datasheet.
The result obtained shows energy savings in excess of 50% at the given
flow distribution over a year. The pay back period depends on the price
per kwh and price of frequency converter. In this example it is less than
a year when compared with valves and constant speed.

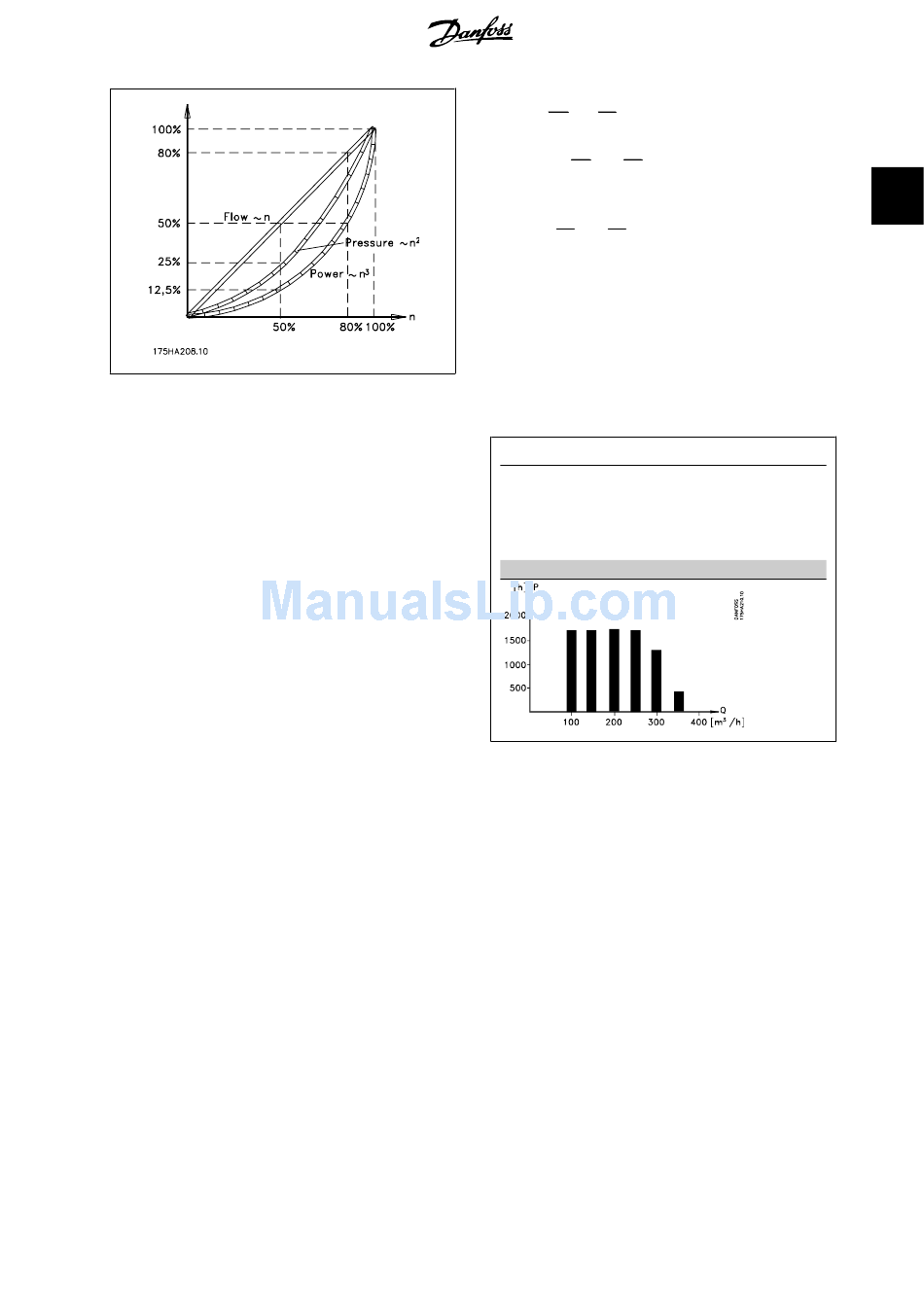

Flow
Pressure
Power
Energy savings
P
Flow distribution over 1 year
®
