5.2.10. Electrical Installation, Control Cable Terminals

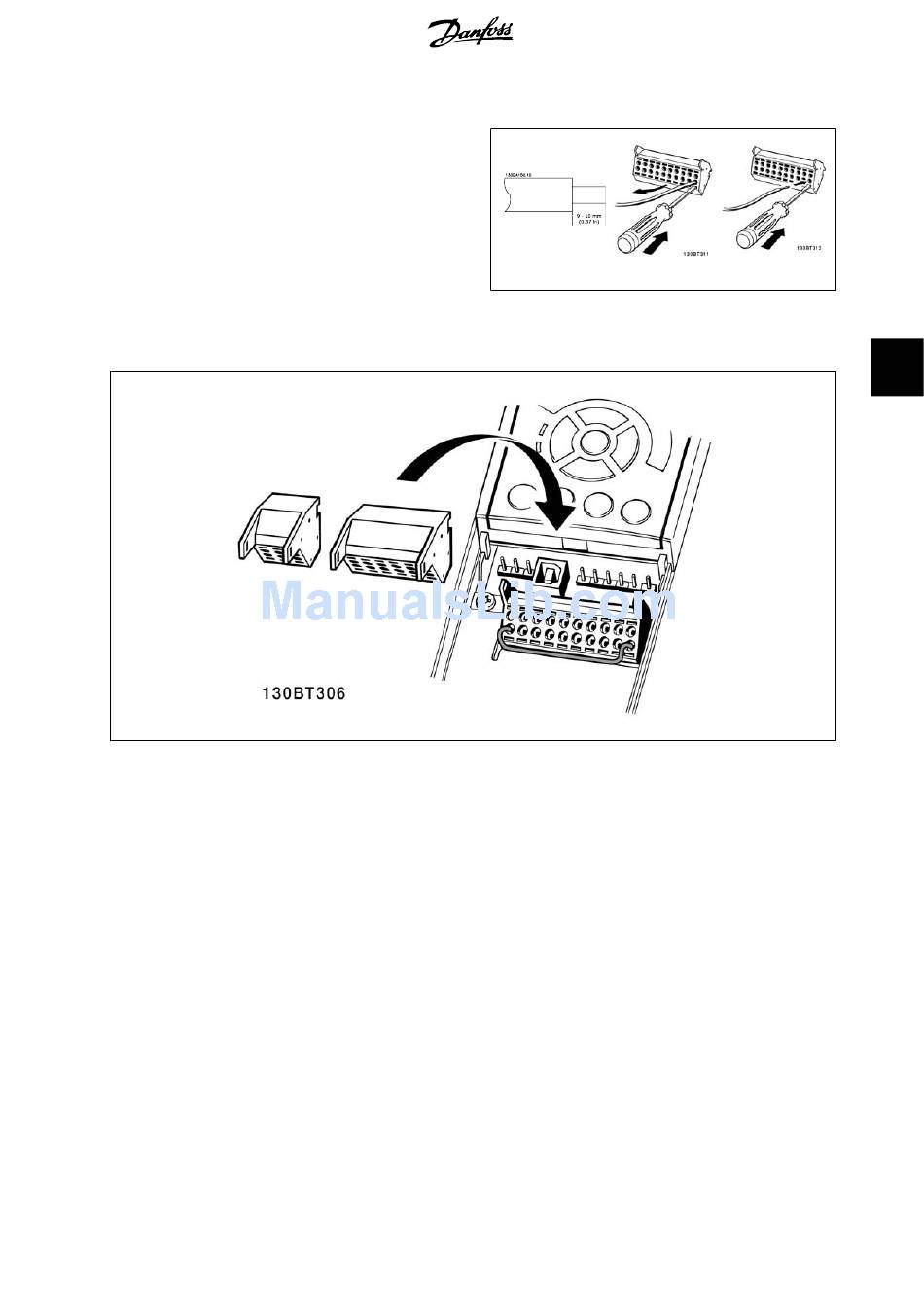

To mount the cable to the terminal:
1. Strip isolation of 9-10 mm
2. Insert a screw driver 1)
3. Insert the cable in the adjacent circular hole.
4. Remove the screw driver. The cable is now mounted to the ter-
minal.
To remove the cable from the terminal:
1. Insert a screw driver 1)
2. Pull out the cable.
1)
Max. 0.4 x 2.5 mm
in the square hole.
in the square hole.
®
