5. How to Install
5

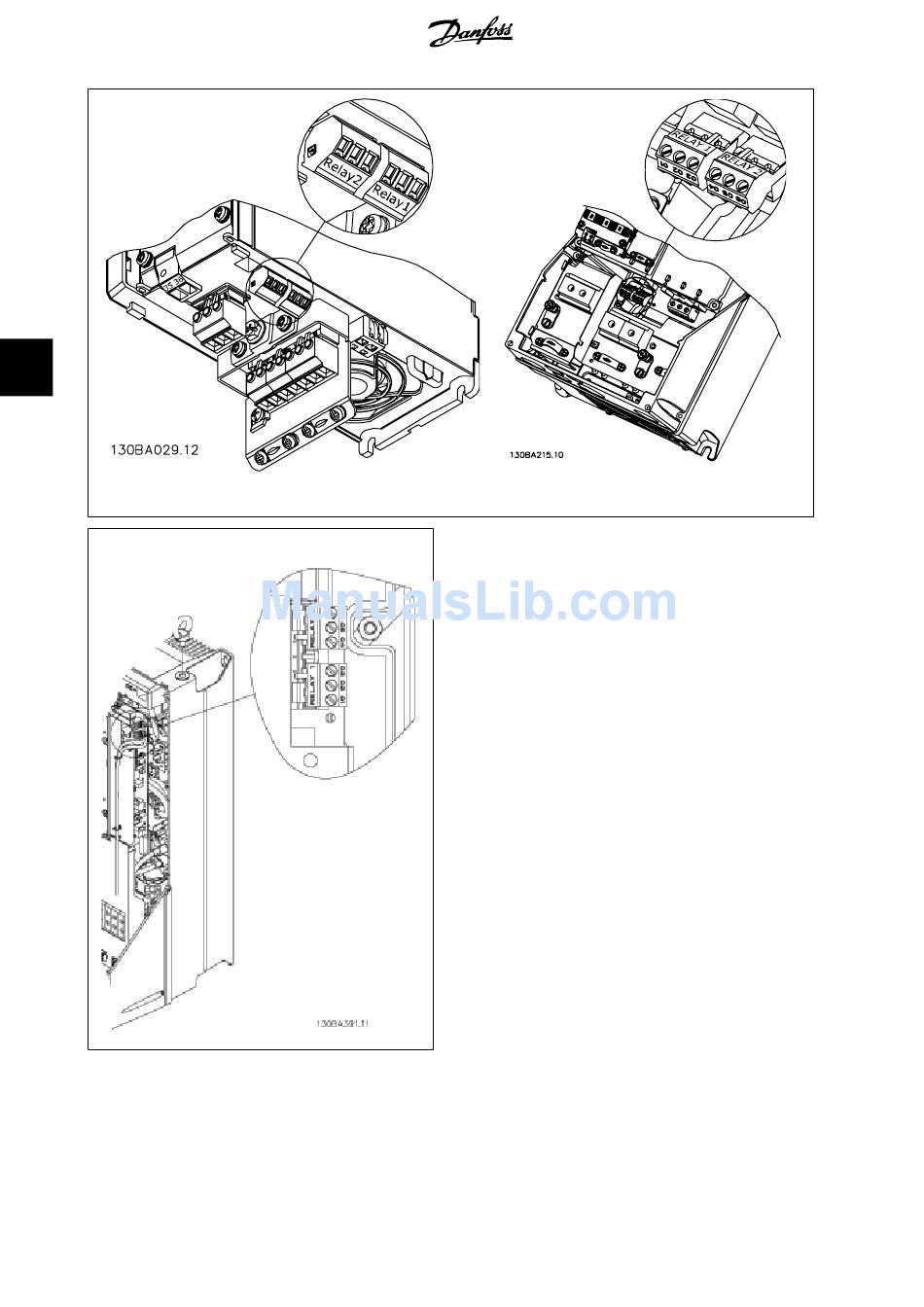

Terminals for relay connection
(A2 and A3 enclosures).
Illustration 5.20: Terminals for relay connection
102
Terminals for relay connection
(A5, B1 and B2 enclosures).
(C1 and C2 enclosures). The relay connections are shown in
the cut-out with relay plugs (from the Accessory Bag) fitted.
®
MG.20.N3.02 - VLT
is a registered Danfoss trademark
®
VLT
AQUA Drive Design Guide
