Application Set Up Examples

6 Application Set Up Examples

6.1 Introduction

NOTE
When the optional safe stop feature is used, a jumper wire
may be required between terminal 12 (or 13) and terminal
37 for the frequency converter to operate when using
factory default programming values.
The examples in this section are intended as a quick
reference for common applications.
Parameter settings are the regional default values
unless otherwise indicated (selected in
0-03 Regional Settings)
Parameters associated with the terminals and
their settings are shown next to the drawings
Where switch settings for analog terminals A53 or
A54 are required, these are also shown

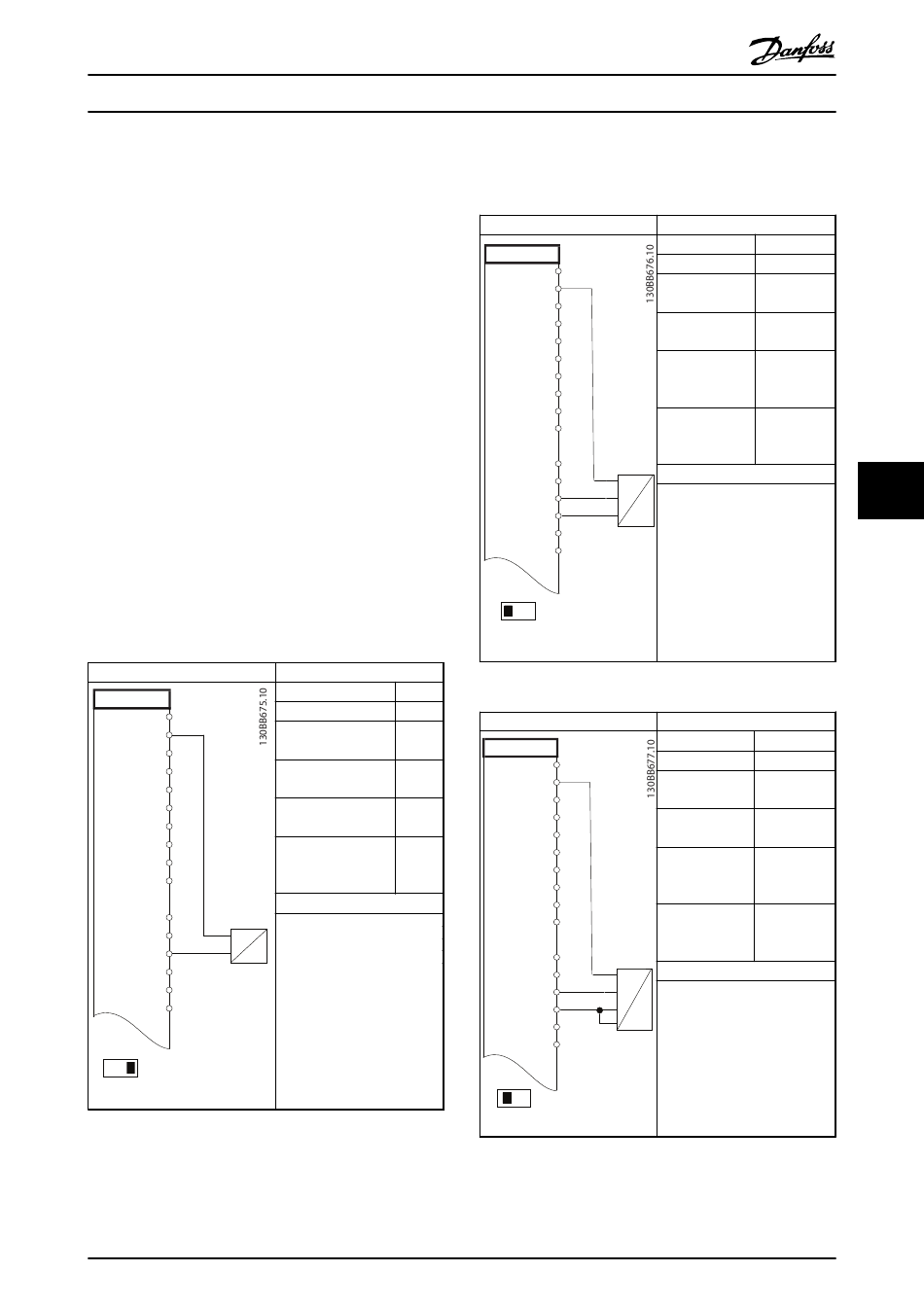

6.2 Application Examples

FC
12
+24 V
+24 V
13
D IN
18
D IN
19
20
COM
27
D IN
D IN
29
32
D IN
D IN
33
37
D IN
+10 V
50
+
A IN
53
A IN
54
-
4-20 mA
COM
55
A OUT
42
COM
39
U - I
A 54
Table 6.1 Analog Current Feedback Transducer
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.ctiautomation.net - Email: info@ctiautomation.net
®
VLT
AQUA Drive
Operating Instructions
Parameters
Function
Setting
6-22 Terminal 54 Low
4 mA*
Current
6-23 Terminal 54
20 mA*
High Current
6-24 Terminal 54 Low
0*
Ref./Feedb. Value
6-25 Terminal 54
50*
High Ref./Feedb.
Value
* = Default Value
Notes/comments:
®
MG20M902 - VLT
is a registered Danfoss trademark
FC
+24 V
12
+24 V
13
D IN
18
D IN
19
COM
20
D IN
27
D IN
29
D IN
32
D IN
33
D IN
37
+10 V
50
+
A IN
53
A IN
54
COM
55
-
A OUT
42
0 - 10V
COM
39
U - I
A54
Table 6.2 Analog Voltage Feedback Transducer (3-wire)
FC
+24 V
12
+24 V
13
D IN
18
D IN
19
COM
20
D IN
27
D IN
29
D IN
32
D IN
33
D IN
37
+10 V
50
+
A IN
53
A IN
54
COM
55
A OUT
42
-
COM
39
0 - 10V
U - I
A54
Table 6.3 Analog Voltage Feedback Transducer (4-wire)
Parameters
Function
Setting
6-20 Terminal 54
Low Voltage
0.07 V*
6-21 Terminal 54
10 V*
High Voltage
6-24 Terminal 54
0*
Low Ref./Feedb.
Value
6-25 Terminal 54
50*
High Ref./Feedb.
Value
* = Default Value
Notes/comments:
Parameters
Function
Setting
6-20 Terminal 54
Low Voltage
0.07 V*
6-21 Terminal 54
10 V*
High Voltage
6-24 Terminal 54
0*
Low Ref./Feedb.
Value
6-25 Terminal 54
50*
High Ref./Feedb.
Value
* = Default Value
Notes/comments:
45
6
6
