Danfoss VLT AQUA Design Manual page 66

3. VLT AQUA Selection
3
Galvanic Isolation in the MCB 101
Digital/analog inputs are galvanically isolated from other inputs/outputs on the MCB 101 and in the control card of the drive. Digital/analog outputs in
the MCB 101 are galvanically isolated from other inputs/outputs on the MCB 101, but not from these on the control card of the drive.
If the digital inputs 7, 8 or 9 are to be switched by use of the internal 24 V power supply (terminal 9) the connection between terminal 1 and 5 which is
illustrated in the drawing has to be established.

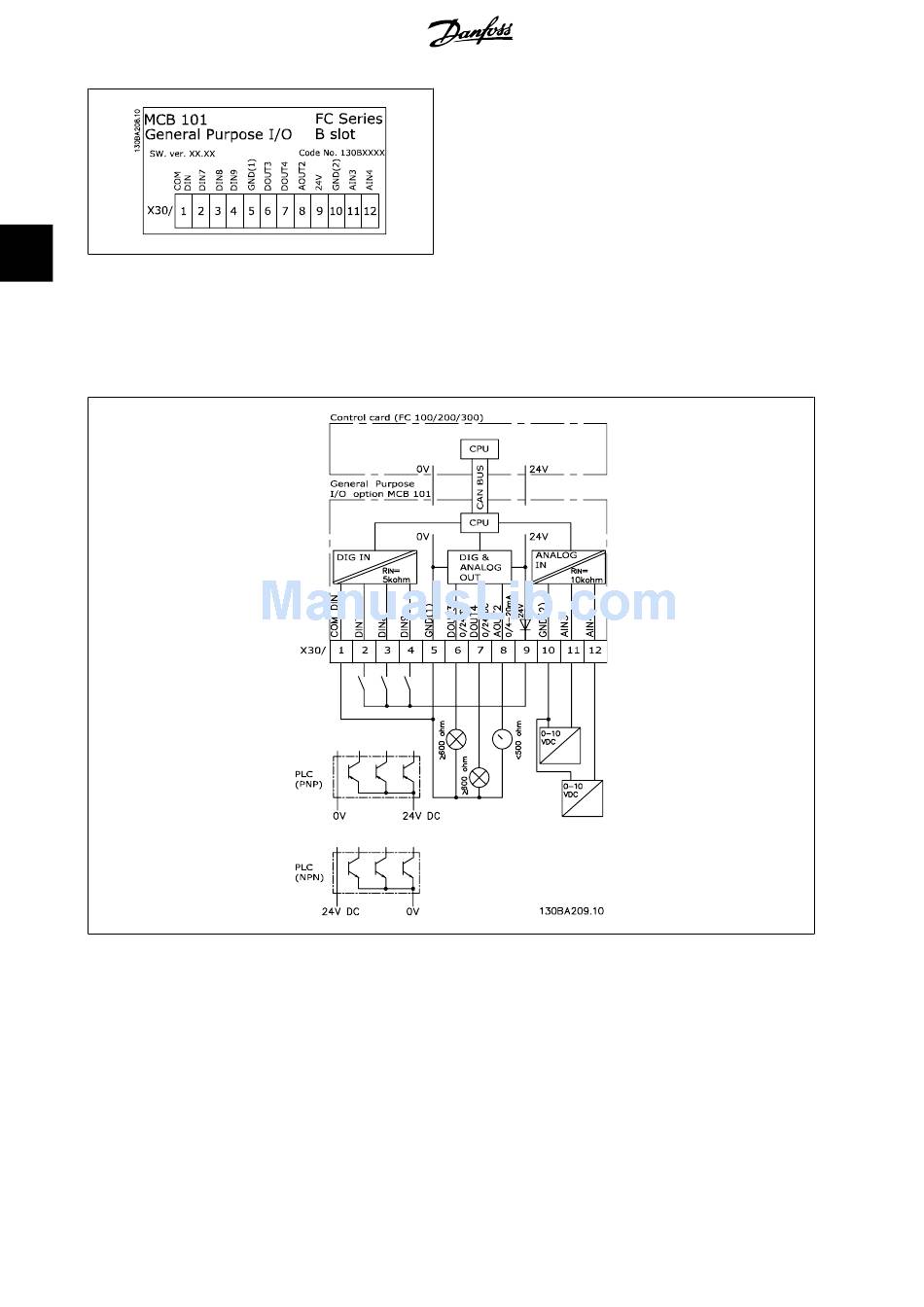

Illustration 3.20: Principle Diagram
66
®
MG.20.N3.02 - VLT is a registered Danfoss trademark
®
VLT AQUA Drive Design Guide
