16-71 Relay Output [bin]
Range: Function:
0 [0 - 511 ] View the settings of all relays.
*

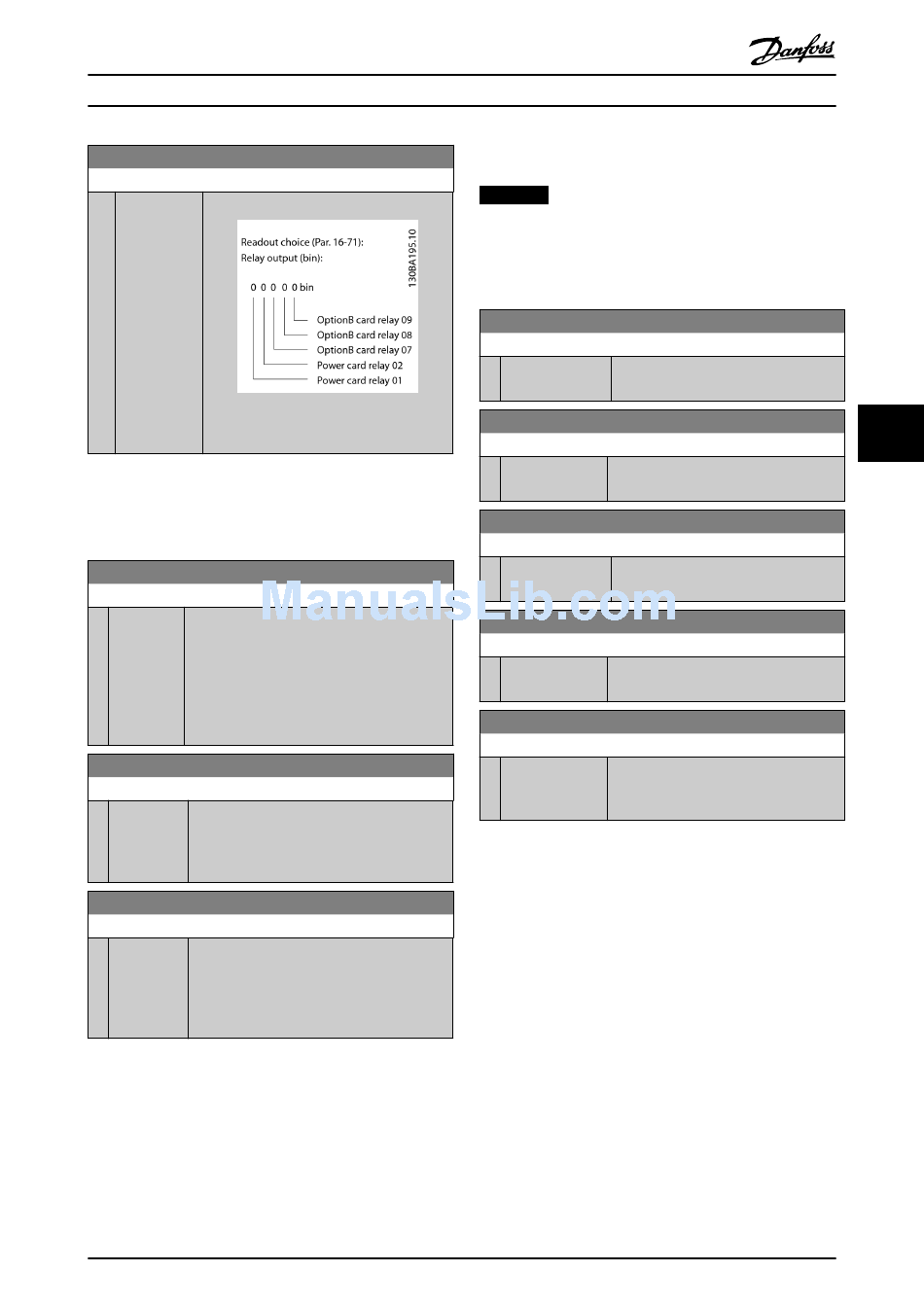

Illustration 6.11 Relay Settings
6.9.2 16-8* Fieldbus & FC Port
Parameters for reporting the bus references and control
words.
16-80 Fieldbus CTW 1
Range: Function:
0 [0 - View the 2-byte control word (CTW) received
*
65535 ] from the bus master. Interpretation of the
control word depends on the fieldbus option
installed and the control word profile selected
in 8-10 Control Profile.
For more information, refer to the relevant
fieldbus manual.
16-84 Comm. Option STW
Range: Function:
0 [0 - 65535 ] View the extended fieldbus comm. option
*
status word.
For more information, refer to the relevant
fieldbus manual.
16-85 FC Port CTW 1
Range: Function:
0 [0 - 65535 ] View the 2-byte control word (CTW) received
*
from the bus master. Interpretation of the
control word depends on the fieldbus option
installed and the control word profile selected
in 8-10 Control Profile.
MG90V302
Operating Instructions
6.9.3 16-9* Diagnosis Readouts
NOTICE
When using MCT 10 Set-up Software, the readout
parameters can only be read online, i.e. as the actual
status. This means that the status is not stored in the
MCT 10 Set-up Software file.
16-90 Alarm Word
Range:
0 [0 - 4294967295 ] View the alarm word sent via the serial
*
16-91 Alarm Word 2
Range:
0 [0 - 4294967295] View the alarm word sent via the serial
*
16-92 Warning Word
Range:
0 [0 - 4294967295 ] View the warning word sent via the serial
*
16-93 Warning Word 2
Range:
0 [0 - 4294967295] View the warning word sent via the serial
*
16-94 Ext. Status Word
Range:
0 [0 - 4294967295] Returns the extended warning word sent
*
Danfoss A/S © 09/2014 All rights reserved.
Function:
communication port in hex code.
Function:
communication port in hex code.
Function:
communication port in hex code.
Function:
communication port in hex code.
Function:
via the serial communication port in hex
code.
