User Interface
Operating variables with different formatting are shown on
each status screen.
Several values or measurements can be linked to each of
the displayed operating variables. Define the values/
measurements to be displayed via parameters 0-20, 0-21,
0-22, 0-23, and 0-24.
Each value/measurement readout parameter selected in
parameters 0-20 to 0-24 has its own scale and number of
digits after a possible decimal point. Larger numeric values
are displayed with few digits after the decimal point.
Example: Current readout
5.25 A; 15.2 A 105 A.
Status display I
This readout state is standard after start-up or initialisation.
Press [Info] to obtain information about the
value/ measurement linked to the displayed operating
variables (1.1, 1.2, 1.3, 2, and 3).
See the operating variables shown in the display in
Illustration 5.2. 1.1, 1.2 and 1.3 are shown in small size. 2
and 3 are shown in medium size.
Status
799 RPM
1.1
1.2
Auto Remote Ramping
2
3

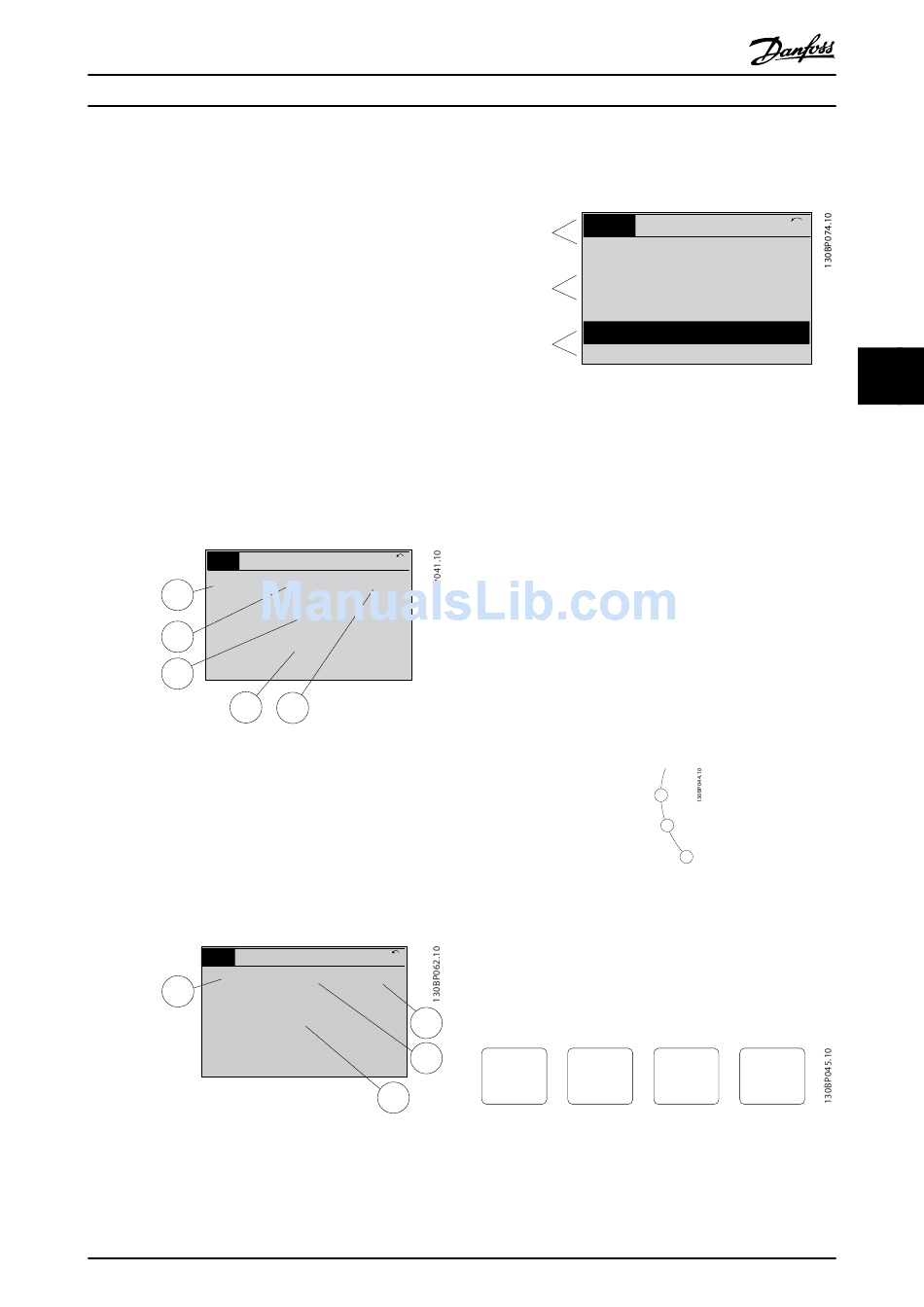

Illustration 5.2 Status Display I - Operating Variables
Status display II
See the operating variables (1.1, 1.2, 1.3, and 2) shown in
the display in Illustration 5.3.
In the example, speed, motor current, motor power, and
frequency are selected as variables in the first and second
lines.
1.1, 1.2 and 1.3 are shown in small size. 2 is shown in large
size.
Status
207RPM
1.1
Auto Remote Running
Illustration 5.3 Status Display II - Operating Variables
MG90V302
Operating Instructions
1 (1)
7.83 A 36.4 kw
0.000
53.2 %
1.3
1 (1)
5.25A 24.4 kW
6.9
Hz
1.3
1.2
2
