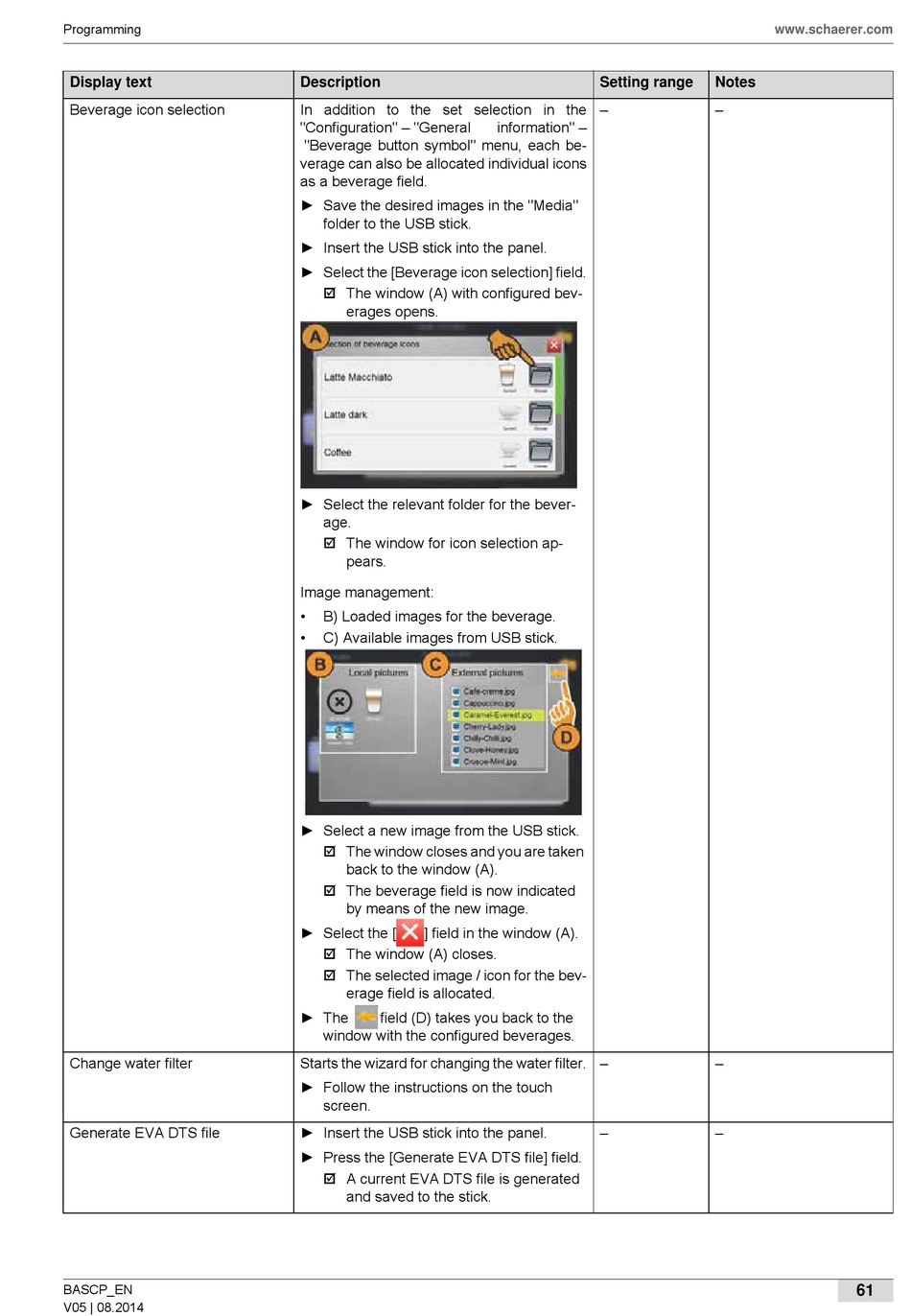

Schaerer Coffee Prime Operating Instructions Manual page 61

Programming
Display text
Beverage icon selection
Change water filter
Generate EVA DTS file
BASCP_EN
V05 | 08.2014
Description
In addition to the set selection in the
"Configuration" – "General
"Beverage button symbol" menu, each be-
verage can also be allocated individual icons
as a beverage field.
► Save the desired images in the "Media"
folder to the USB stick.
► Insert the USB stick into the panel.
► Select the [Beverage icon selection] field.
 The window (A) with configured bev-
erages opens.
► Select the relevant folder for the bever-
age.
 The window for icon selection ap-
pears.
Image management:
• B) Loaded images for the beverage.
• C) Available images from USB stick.
► Select a new image from the USB stick.
 The window closes and you are taken
back to the window (A).
 The beverage field is now indicated
by means of the new image.
► Select the [ ] field in the window (A).
 The window (A) closes.
 The selected image / icon for the bev-
erage field is allocated.
► The field (D) takes you back to the
window with the configured beverages.
Starts the wizard for changing the water filter.
► Follow the instructions on the touch
screen.
► Insert the USB stick into the panel.
► Press the [Generate EVA DTS file] field.
 A current EVA DTS file is generated
and saved to the stick.
Setting range
–
information" –
–
–
www.schaerer.com
Notes
–
–
–
