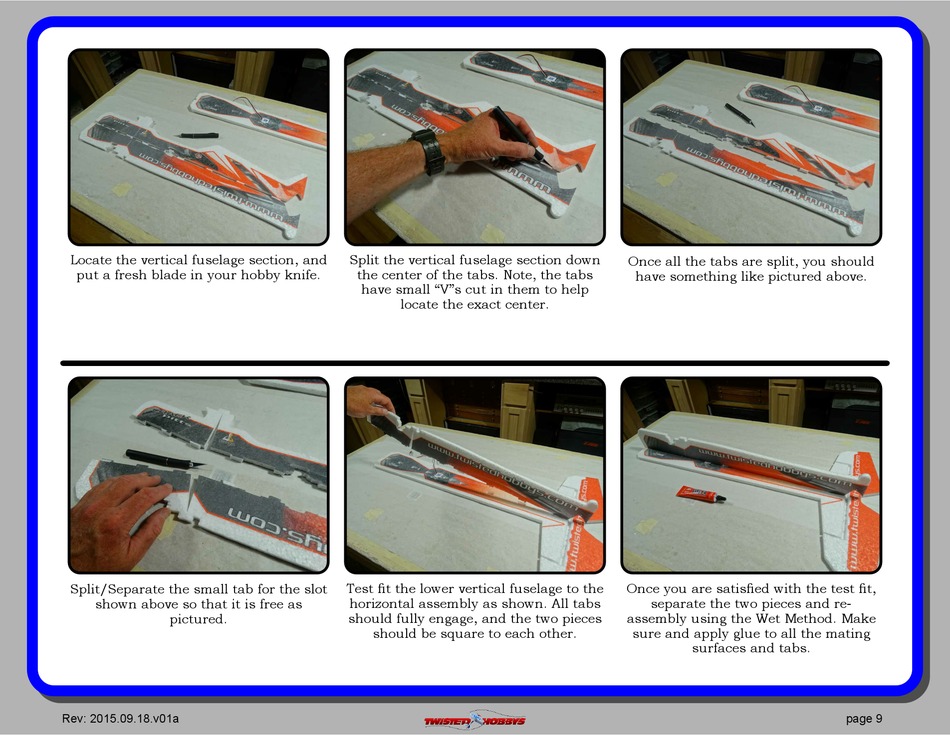

Locate the vertical fuselage section, and
put a fresh blade in your hobby knife.
Split/Separate the small tab for the slot
shown above so that it is free as
pictured.
Rev: 2015.09.18.v01a
Split the vertical fuselage section down
the center of the tabs. Note, the tabs
have small "V"s cut in them to help
locate the exact center.
Test t the lower vertical fuselage to the
horizontal assembly as shown. All tabs
should fully engage, and the two pieces
should be square to each other.
Once all the tabs are split, you should
have something like pictured above.
Once you are satised with the test t,
separate the two pieces and re-
assembly using the Wet Method. Make
sure and apply glue to all the mating
surfaces and tabs.
