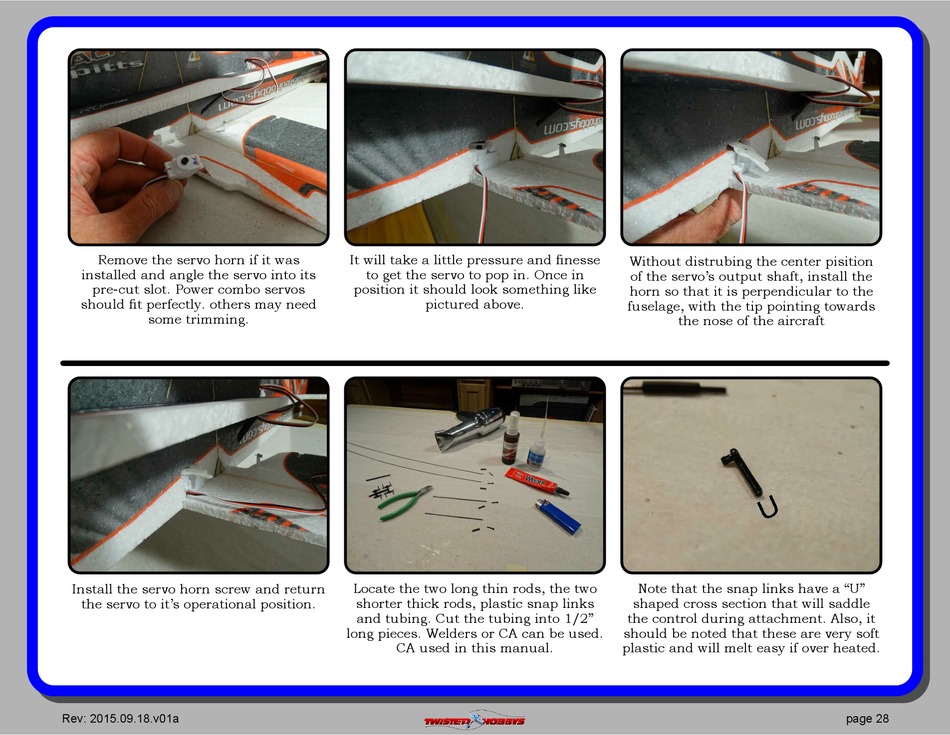

Twisted Hobbys CRACK PITTS Assembly Manual page 28

Remove the servo horn if it was
installed and angle the servo into its
pre-cut slot. Power combo servos
should t perfectly. others may need
some trimming.
Install the servo horn screw and return
the servo to it's operational position.
Rev: 2015.09.18.v01a
It will take a little pressure and nesse
to get the servo to pop in. Once in
position it should look something like
pictured above.
Locate the two long thin rods, the two
shorter thick rods, plastic snap links
and tubing. Cut the tubing into 1/2"
long pieces. Welders or CA can be used.
CA used in this manual.
Without distrubing the center pisition
of the servo's output shaft, install the
horn so that it is perpendicular to the
fuselage, with the tip pointing towards
the nose of the aircraft
Note that the snap links have a "U"
shaped cross section that will saddle
the control during attachment. Also, it
should be noted that these are very soft
plastic and will melt easy if over heated.
page 28
